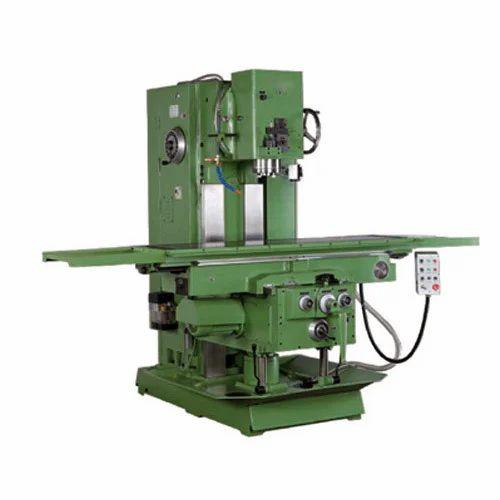

Universal Knee Type Milling Machine

Regular price
Rs. 650,000.00
Sale price
Rs. 650,000.00
Regular price

Berlin Machine Corporation is offering Universal Knee Type Milling Machine. This series is made available in different models as well. Features: • Low voltage control • Less power consumption • Reliable performance Additional Information: • Pay Mode Terms: T/T (Bank Transfer) • Port of Dispatch: NAVA SEVA • Delivery Time: READY STOCK/3-4 WEEKS
Max Swivel Angle of Spindle - +/- 45 Degree
Max Load Table - 1500 kg
Spindle Motor Power - 15 kW
Longitudinal Travel - 1530/1520 mm
Transverse Travel - 360/345 mm
Model - X5050
Table Size - 2000x500 mm
Overall Dimension - 2250x3200x2340 mm
Brand - Fostex
Vertical Travel - 630/610 mm
Rapid Feed Speed - X/Y 3000 Z: 1000 mm/min
Distance Between Spindle Nose and Table Surface - 95-725
Spindle Travel - 90 mm
Spindle Speed Step - 17 step
Cutting Feed Speed - X/Y: 16-800 Z:5 -250 mm/min
Machine Weight - 5200 kg
Spindle Speed Range - 45-1800 rpm

Title

Delivery

All Over India Delivery

Dimensions

6*6*10 Feet

Warranty

1 Year Complete Warranty

Universal Knee Type Milling Machine

Berlin Machine Corporation is offering Universal Knee Type Milling Machine. This series is made available in different models as well. Features: • Low voltage control • Less power consumption • Reliable performance Additional Information: • Pay Mode Terms: T/T (Bank Transfer) • Port of Dispatch: NAVA SEVA • Delivery Time: READY STOCK/3-4 WEEKS
Max Swivel Angle of Spindle - +/- 45 Degree
Max Load Table - 1500 kg
Spindle Motor Power - 15 kW
Longitudinal Travel - 1530/1520 mm
Transverse Travel - 360/345 mm
Model - X5050
Table Size - 2000x500 mm
Overall Dimension - 2250x3200x2340 mm
Brand - Fostex
Vertical Travel - 630/610 mm
Rapid Feed Speed - X/Y 3000 Z: 1000 mm/min
Distance Between Spindle Nose and Table Surface - 95-725
Spindle Travel - 90 mm
Spindle Speed Step - 17 step
Cutting Feed Speed - X/Y: 16-800 Z:5 -250 mm/min
Machine Weight - 5200 kg
Spindle Speed Range - 45-1800 rpm
