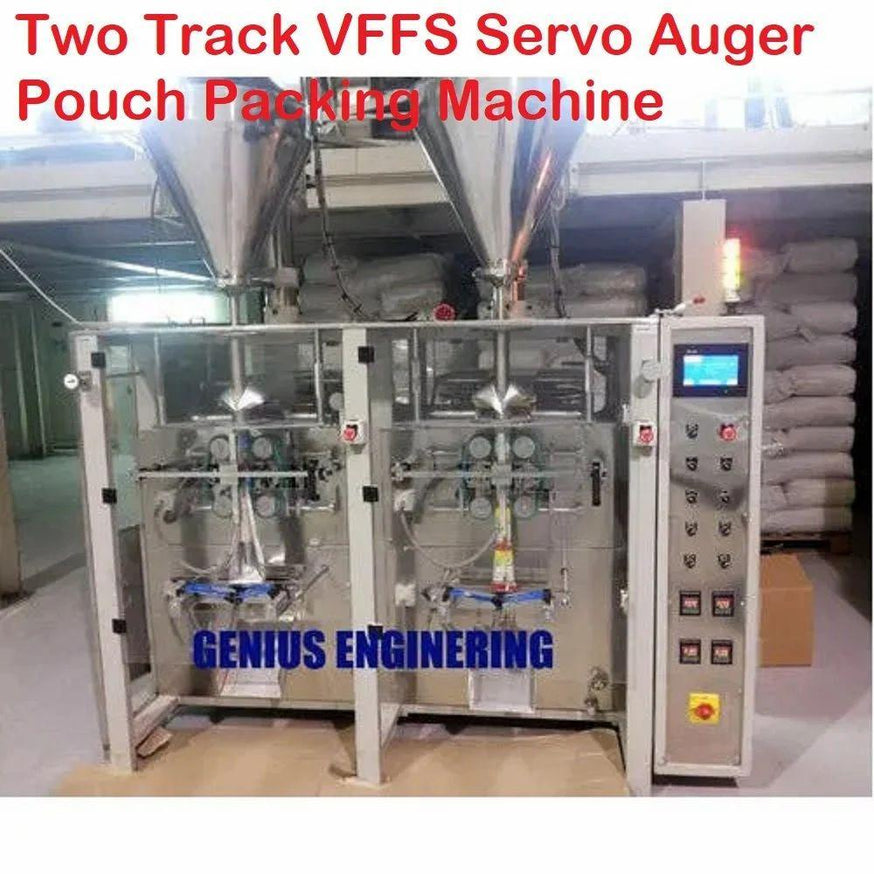

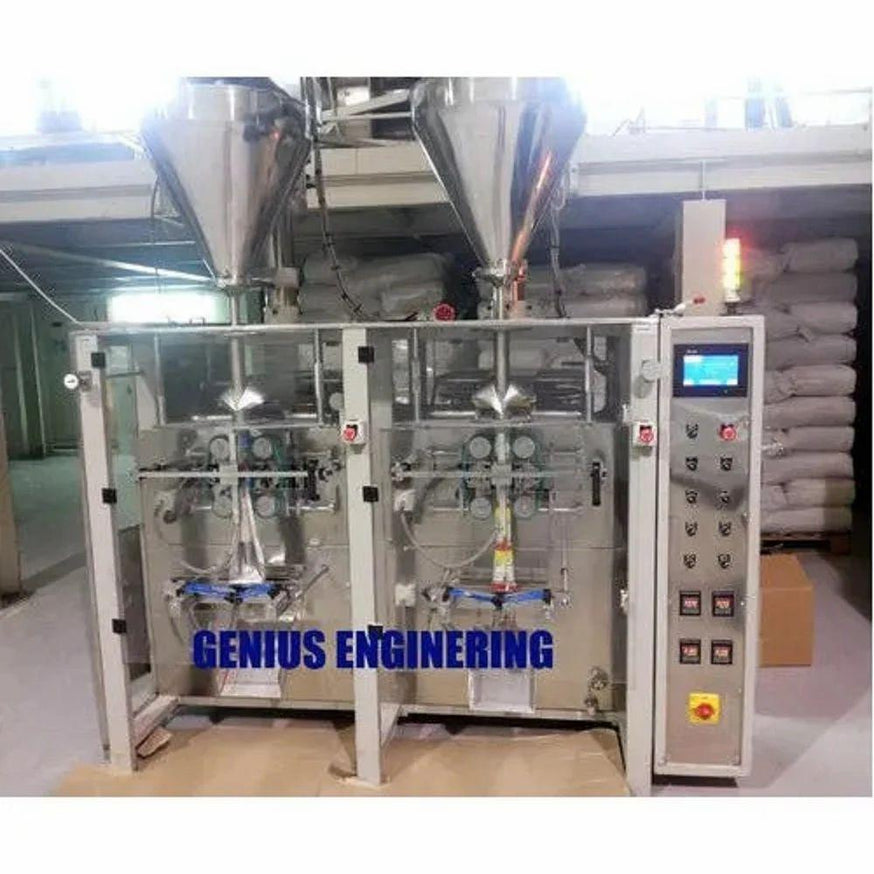

These both attached VFFS machines controlled by single operating panel. These machines operate intermittently and continuously with optimum electrical power. These machines are specially designed to produce double production output & occupy less floor space. Our Twin collar type form fill & seal machine with servo driven auger is suitable to pack sticky & non sticky powders like milk powder, detergent powder, flour, spices, custard powder, oats powder & glucose powder etc. Specifications: Packaging film Any continuous heat seal able laminated film in roll form. Machine motion Intermittent. Horizontal sealing By clap type sealing jaws (pneumatically operated). Electrical Panel Combined. PLC Microprocessor controlled MMI with PLC (Siemens/ Delta/ Schneider Make). Pneumatic components Pneumax make. Temperature Controller PID Based. Photocell P & F make. Unwinding Units Yes. Pneumatic type brake system. Batch cutting option YES. (Chaplets of 10 sachets each and cutting.) Electrical motor for stirrer 02 Nos. 1 HP (ABB / BCH). Other electrical components Schneider make. Electrical Wiring Fenolex make.
Sealing Type - Center seal
Screen Size - 5.7'' Touch screen
Auger Servo Motors and Drives - 2 KW (Schneider/ Delta make). (2 Nos.)
Material Grade - SS304
Packaging Speed - 50gm/180 pouches per minute
Material - Stainless Steel
Paper Pulling - Through Servo motor (02 Nos.) (1 KW,Schneider/ Delta make)
Phase - 3 phase
Voltage - 415 V
Filling Systems - 02 Nos. Servo operated auger Filler
Filling Accuracy - +0.5 - 0.8%
