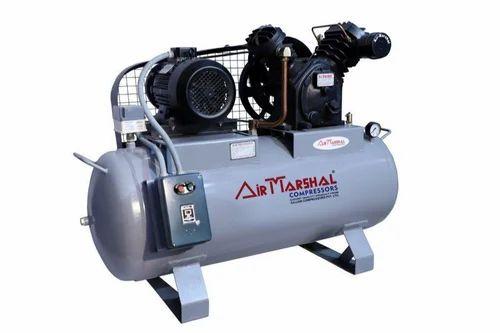

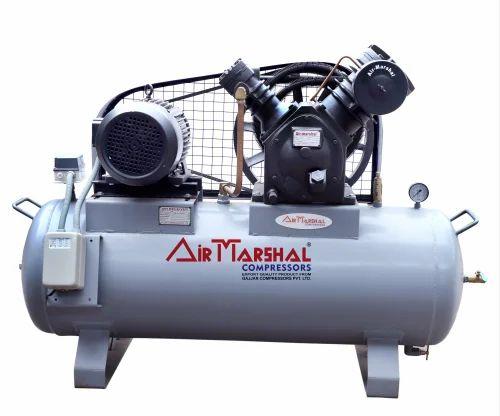

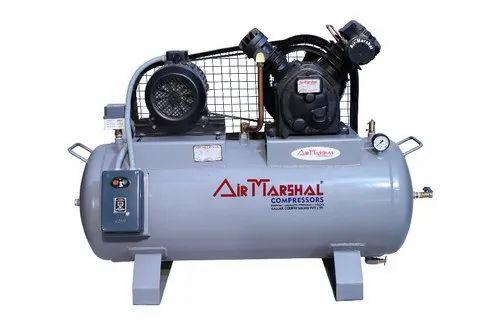

Two Stage Piston Air Compressor consist of two or more cylinders. The atmospheric air enters into LP cylinder through inlet filter & valves and passes to HP cylinder through intercooler for final pressure. The highly efficient intercooler tube provides maximum heat dissipation between stage. These compressors are useful in textile, plastic industries, paper industries, spray painting blowering, cleaning, tyre inflating, pneumatics, ceramics, automobiles, foundries, pharmaceuticals, CNC, VMC & Plasma Cutting, Sand blasting, Blow Molding Service stations, etc. Other Details: Model No. Motor H. P. No. of Piston Piston Displacement ( CFM) Pressure PSI Receiver ( Litres ) GC- 284 22.0 / 3.0 2 6.7 / 9.8 200 160 GC- 2390 3.0 / 5.0 2 8.9 / 11.0 200 160 GC- 2525 5.0 / 7.5 2 17.3/22.0 200 200 GC- 303 7.5 2 23.8 200 240 GC- 2595 7.5 / 10.0 2 25 / 33 200 240 GC- 2650 10 2 30 200 300 GC- 121Tz 10.0 / 12.5 2 32.9 / 44.0 200 300
Pressure - 200 PSIG
Horse Power - 5 HP
Power Source - Electric
No of Piston - 2 Piston
Piston Displacement - 17.3 CFM
Brand - Air Marshal
Receiver - 200 Litres
Model Name/Number - GC-292
