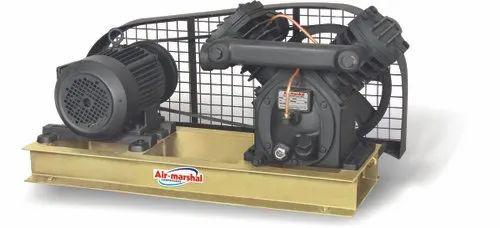

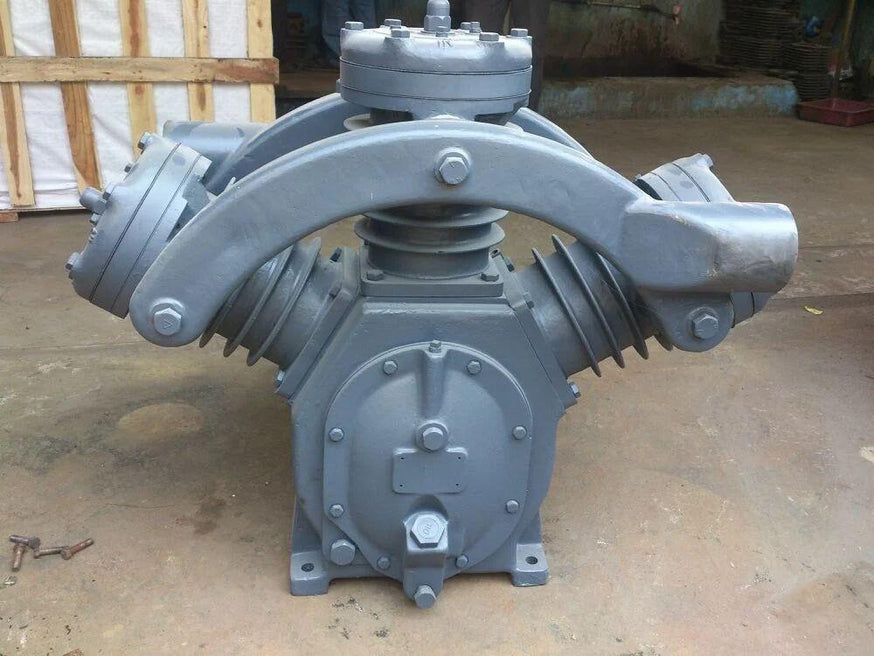

We are offering Two Stage Dry Vacuum Pump. Distinctive Features: • Overhung crankshaft, with replaceable crankpin bush made from special steel material, is precision-ground and runs with minimum vibration. The crankshaft is balanced and rotates on two / three ball bearings. • Precisely machined, one - piece connecting rod with solid end construction does not require adjustment. Integral splash lubrication. • Cylinders are made from special cast iron material with deep radial fins on the outer side for quick heat dissipation. Each cylinder is separately cast, precision bored and honed for smooth running. • Stainless steel finger valves are heat - treated, quick acting. Concentric ring valve plates and springs are made from high-quality steel material, having a large flow area for longer valve life and better performance. Easy for removal and servicing. • Equalized and balanced pistons are made from the aluminum / cast iron material. Each piston has compression ring and oil control rings for optimum efficiency.
No of Piston - 3 Piston
Motor Power - 10 HP
Piston Displacement - 132.0/88.0 CFM
Phase - Three Phase
Brand - Air Marshal
Voltage - 220-240 V
Usage/Application - Industrial
Vacuum In Hg - 29.6"
Number Of Stages - Double Stage
