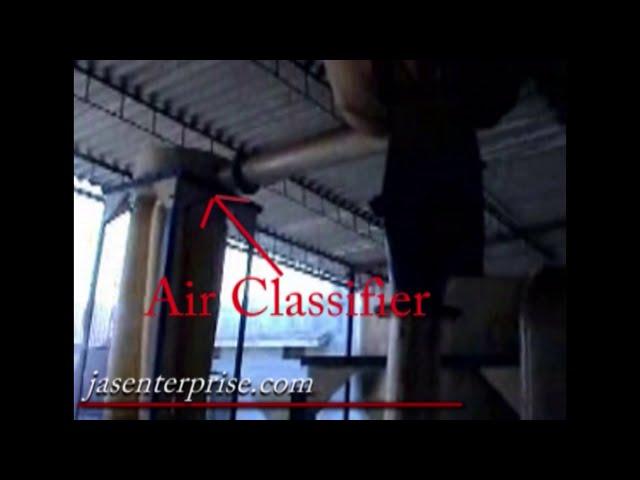

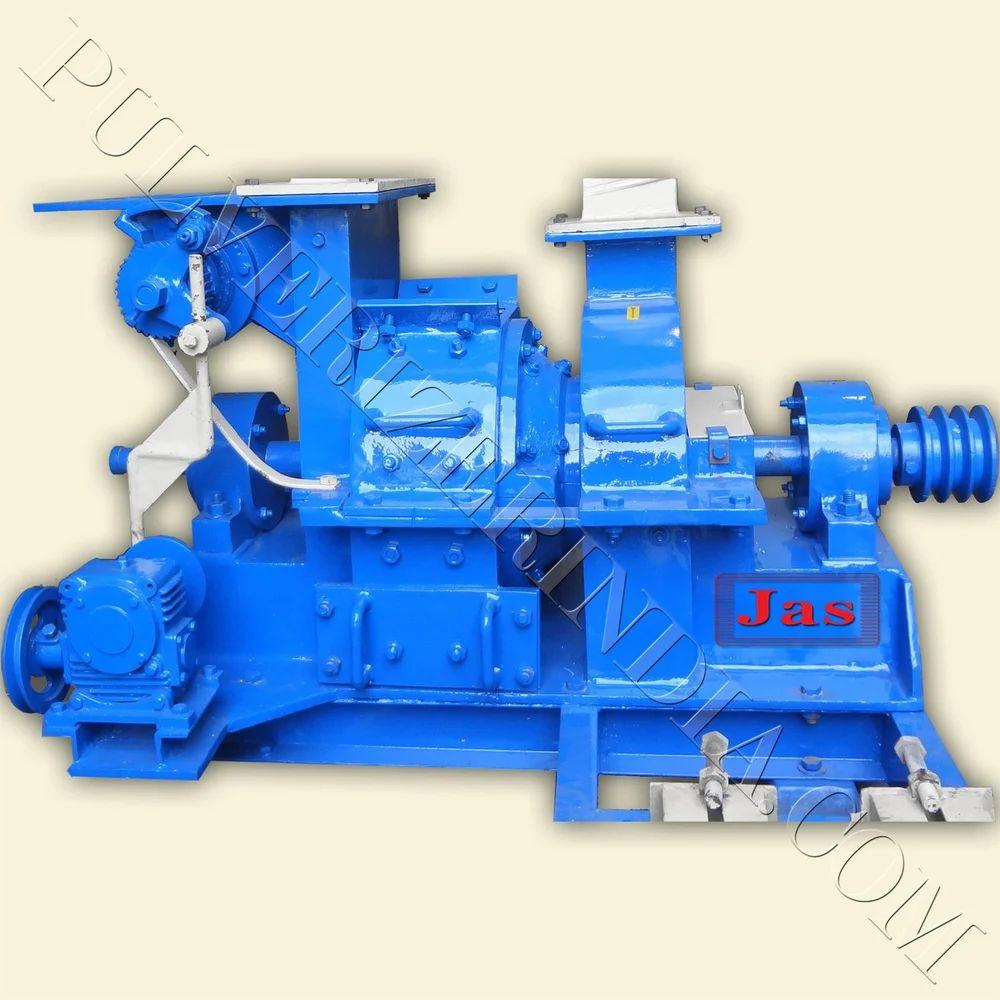

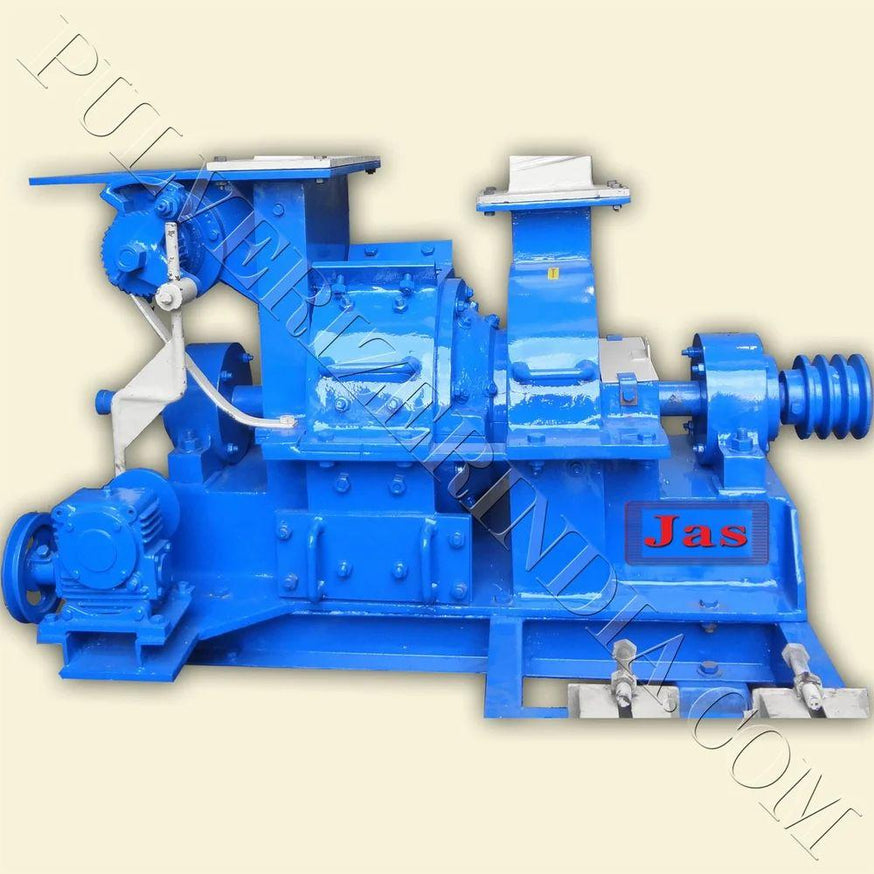

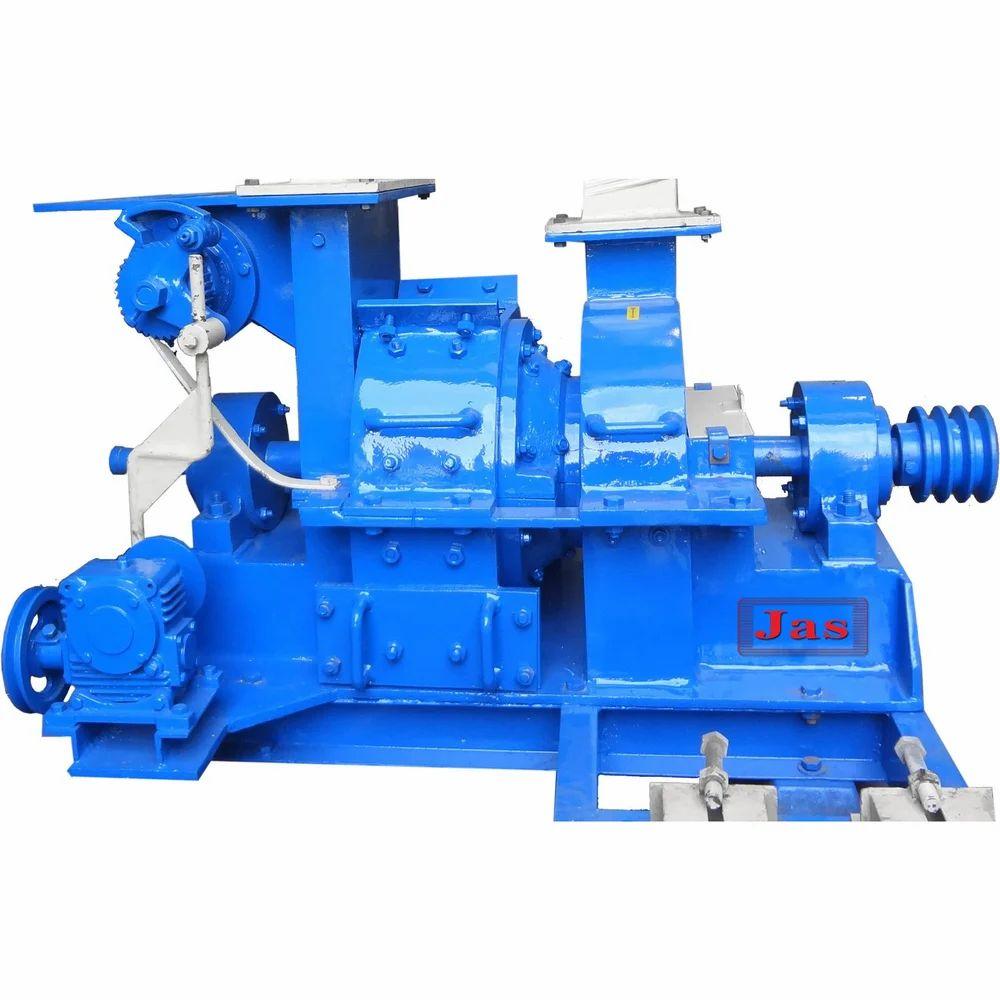

We offer “Techno Wings” brand screen less impact pulverizer. It is versatile grinding unit of heavy and rugged construction and built for continuous operation day after day. The screen less impact pulverizer is especially designed for the medium fine and fine size reduction. It meets most capacity requirements and enables a wide degree of adjustments with finesse of the finished product ranging from about 60 meshes to bulk passing through 325 meshes, depending on a considerable extent to the particular material being handled. The impact pulverizer combines grinding, classifying and conveying all in one single unit. It consists of an enclosed rotor carrying swing hammers, whizzer classifier for finesse regulation and blower fan mounted on a solid shaft. Raw material to be pulverized enters the crushing chamber through the hopper or automatic rotary feeder. The impact of the hammer on the feed material against the liner plates reduces it into fine powder. The ground material is carried toward the whizzer classifier for classification and the oversize particles are rejected by the classifier and returns to crushing chamber for further grinding. The classified material is then conveyed into the cyclone for collection and bagging. A dust collector is provided in the system for ensuring dust- Free operation and no loss of ground powder. Application of impact pulverizerThe “Techno Wings” impact pulverizers are used for a wide range of application e. G. Agricultural chemicals, carbon and graphite, coal, coke, coconut shell and wood saw dust, clay, dye stuff and pigments, detergents, ferroalloys, fertilizers, fillers, food products, herbs and spices, insecticides and pesticides, katha, marine feeds, minerals, plastics, pharmaceuticals,
Capacity - 25 Kg / Hr
Type - Semi-Automatic, Fully Automatic
Power Consumption - 5 Kwh
Material - MS
Phase - Three Phase
Motor Power - 7.5 HP
Electricity Connection - Three Phase
