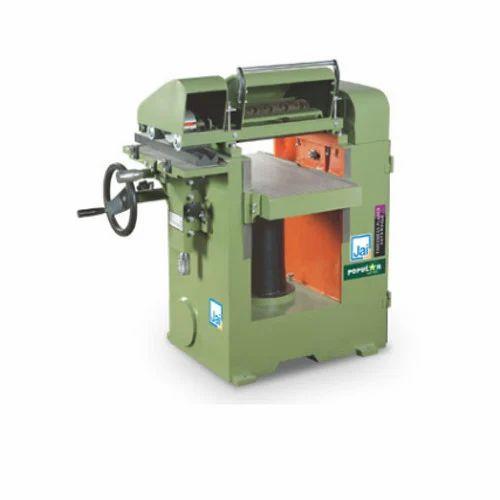

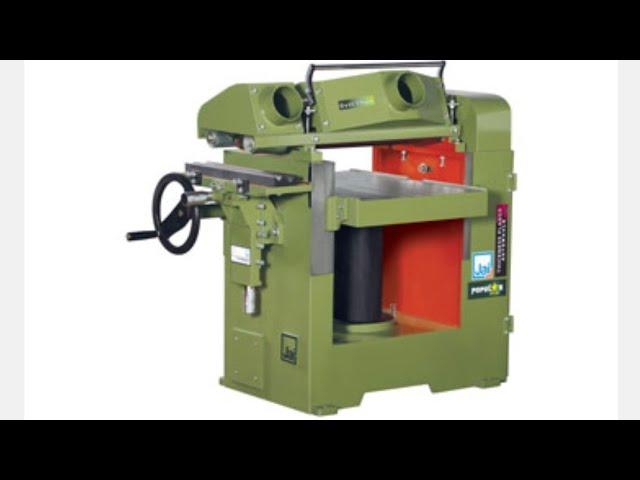

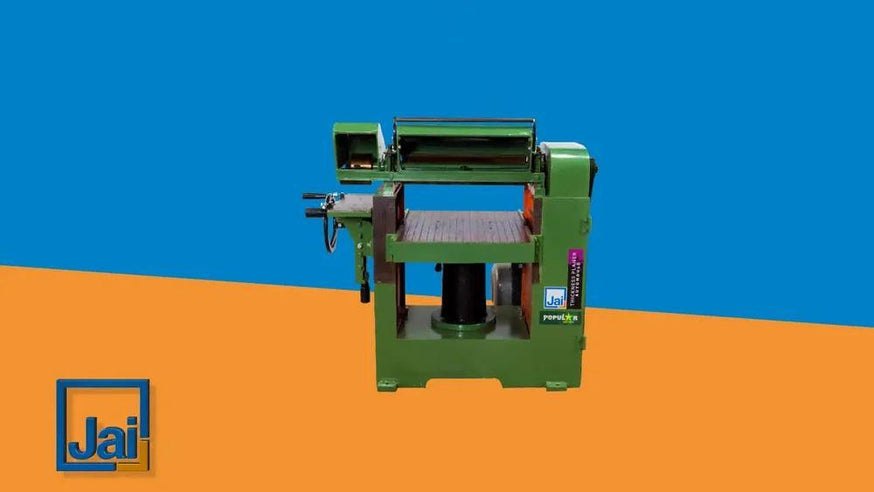

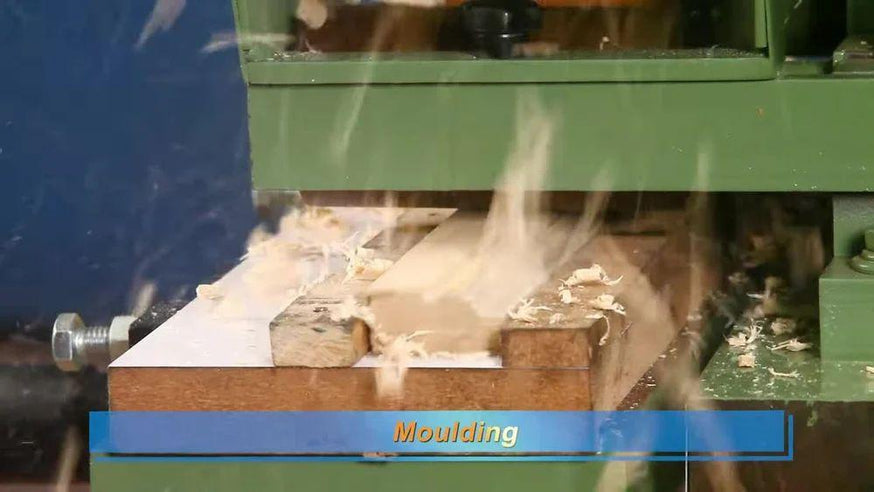

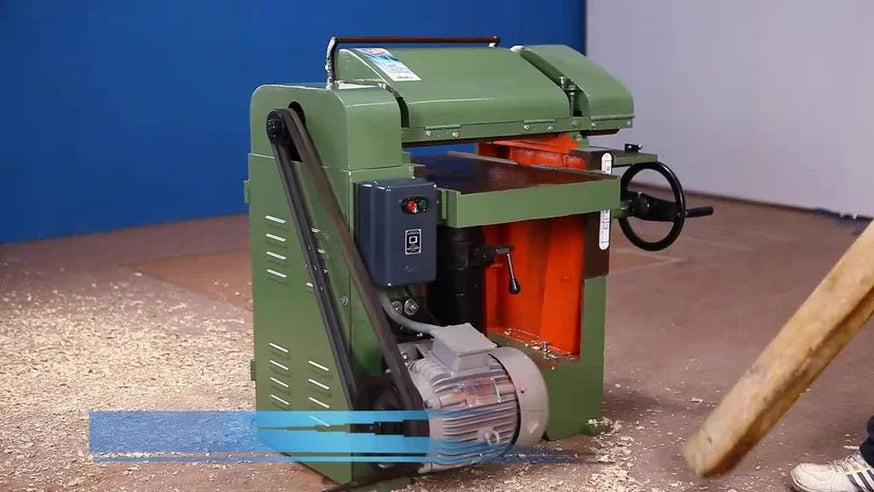

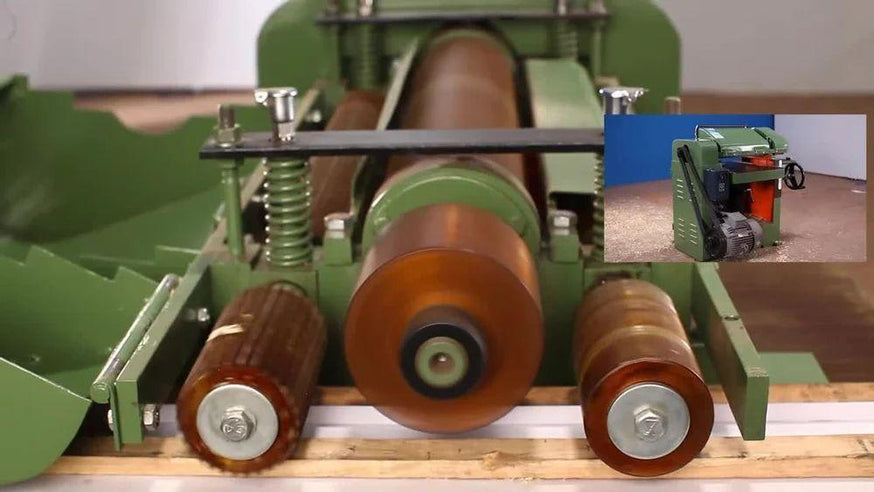

Thicknessers are the highest selling m/cs for its rugged heavy duty structure, master workability and long life durability. Auto Mould models are good for additional facility of moulding making with lower install cost. Standard Accessories • 2 planer blades in cutter block • motor pulley • motor fixing plate • toolkit & m/c manual. Other Product DetailsModelJ-401J-403mm / inchmm / inchMax. planing width330 / 13"610 / 24"Thicknessing capacity200 / 8 "200 / 8 "Length of Thickness Table660 / 26"760 / 30"Min. length of workpiece for thicknessing254 / 10"254 / 10"Feeding speed (feet per minute)2424Cutter block diameter95 / 3.75"95 / 3.75"Cutter block speed (RPM)40004000Standard cutter block code no.2B2BPower required - HP / RPM3/14405/1440Approx. Weight of machine - kg.360510

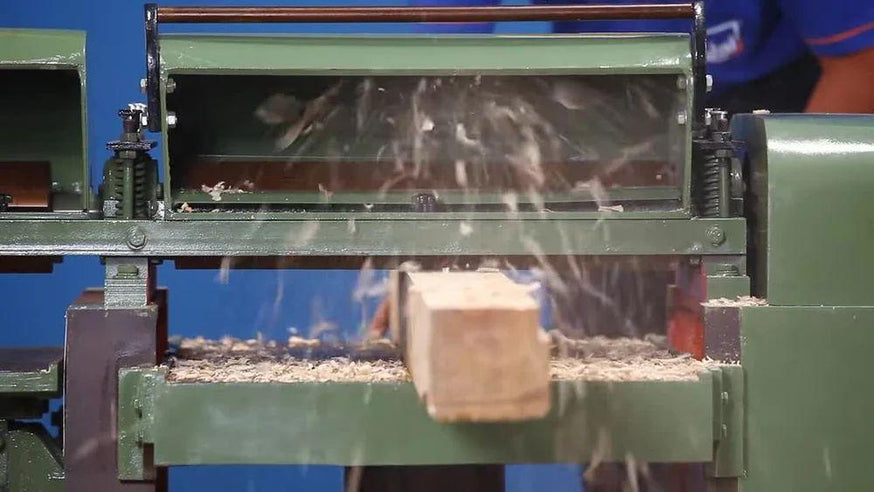

Model No - J-402
Weight - 410 Kg
Standard Cutter Block Code No - 2B
Max Planing Width - 455 mm / 18 inch
Min Length of Work Piece for Thickness - 254 mm / 10 inch
Thickness Capacity - 200 mm / 8 inch
Power Required - 5 HP / 1440 rpm
Feeding Speed - 24 (feet per minute)
Cutter Block Speed - 4000 rpm
Length of Thickness Table - 660 mm / 26 inch
Cutter Block Diameter - 95 mm / 3.75 inch
