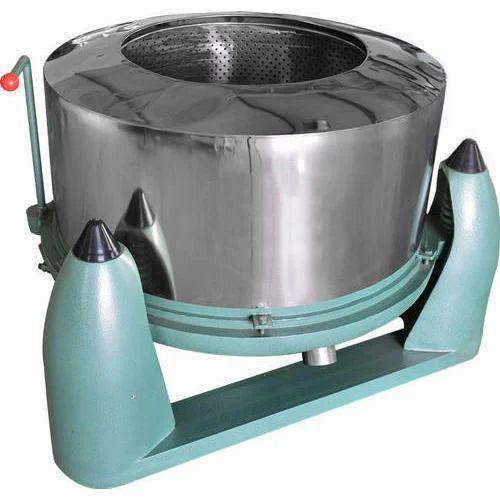

Specifications: • Outer Drum: Cylindrical drum mode out of S. S • Inner Drum: Revolving perforated drum made out of S. S. 304/316 • Volute: M. S. Fabricated shell & bottom • Drive System: The machine is driven by 440V, 3pH TEFC motor through clutch pulley V belts • Brake: Mechanical leg brake system • Bearing Housing: Made out of graded cast iron machines for close tolerance to heavy duty bearings with proper lubrication • External Finish: Polished S. S. surface, attractive color ASPA paint on M. S. and C. I. surfacesTechnical Specification: ModelInner Drum dia/HtDrum R. P. MMotor H. PCapacity Kgs (WET)NHE -25625/350 mm1000325 KgsNHE -35775/350 mm1000540 KgsNHE -37925/4507855/7.550 KgsNHE -451025/50 mm7857.570 KgsNHE -491225/50 mm77510100 Kgs
Material - S.S304
Brand - NAVEEN
Automation Grade - Semi-Automatic
Capacity - 20 kgs- 100 kgs
Usage/Application - For Industrial, laundry and Chemical
Speed - 930 RPM
Installation Services - Yes
