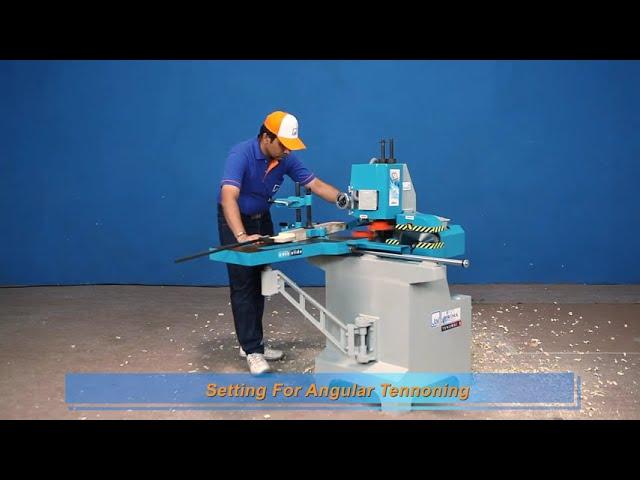

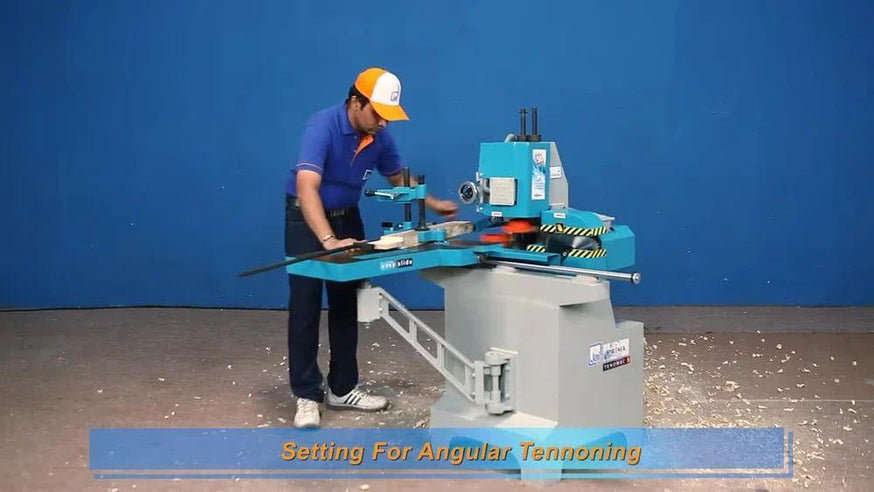

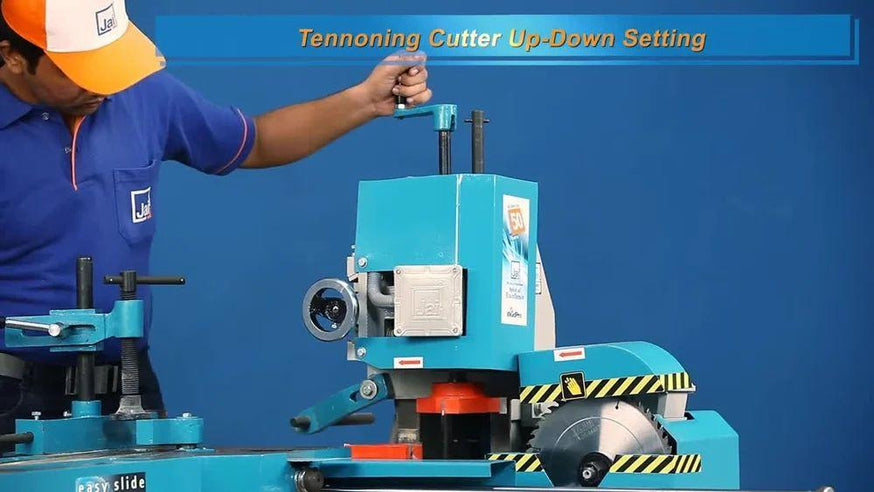

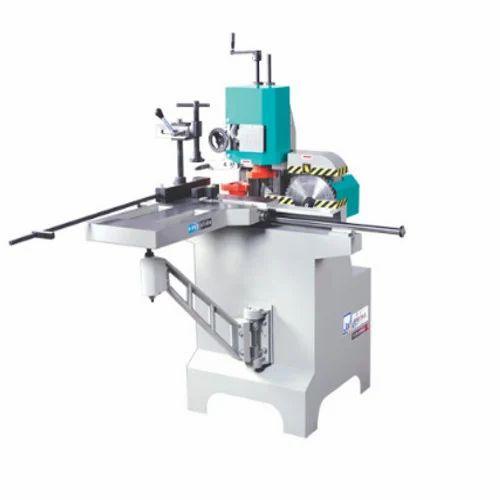

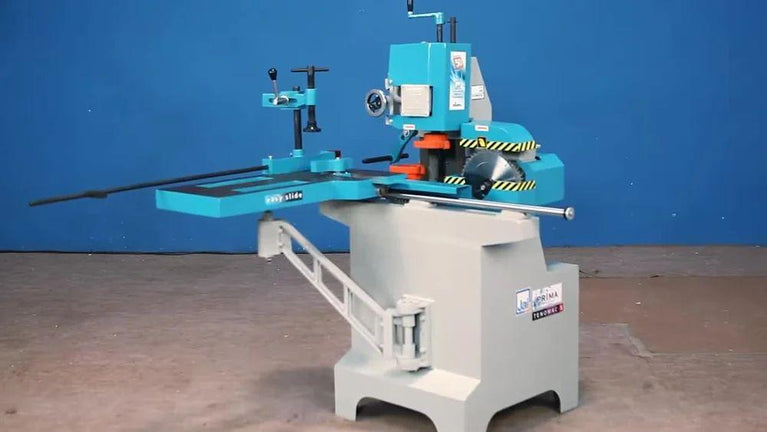

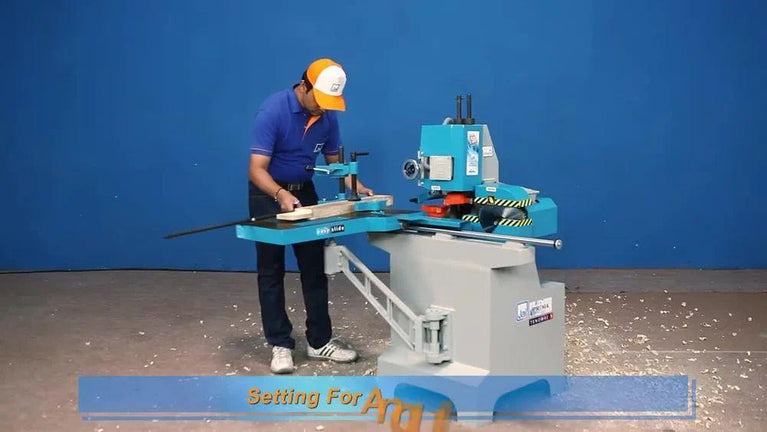

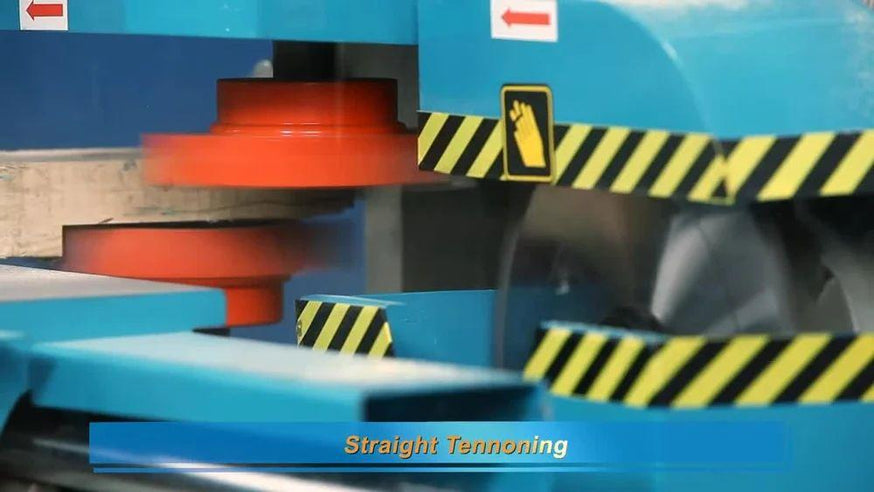

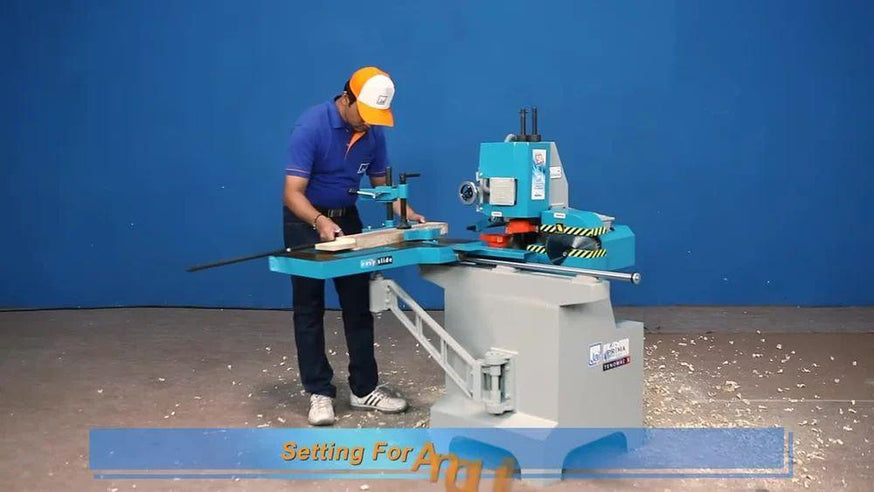

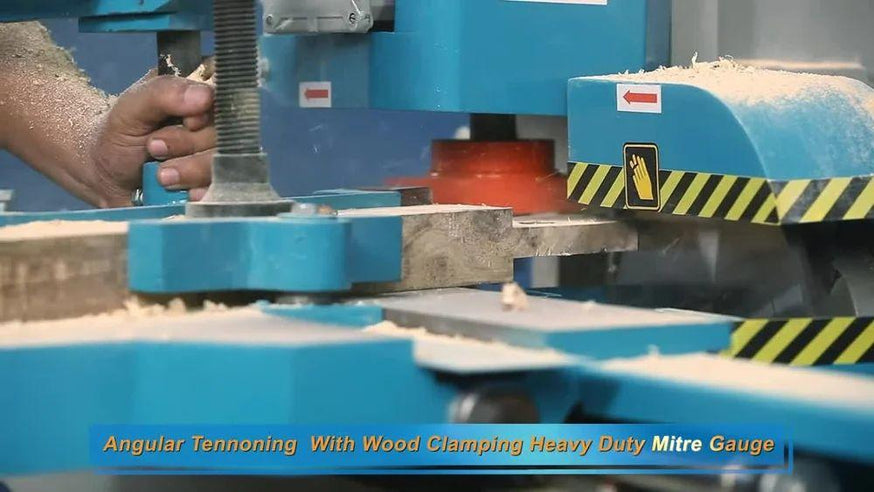

Easy table slide movement with heavy wood clamping facility for accurate tenoning. End cutting circular saw unit for perfect tenon length. Standard Accessories • 2 no. electric motor of 2HP/2800 RPM ( 3-phase) • 1 no electric motor of 1 HP/2800 RPM • 2 nos. R/F switch • 2 nos. carbide cutter blocks • mitre gauge • saw guard • mitre guage with wood clamping facility, toolkit & m/c manual. Additional Information: • Production Capacity: Readily available • Delivery Time: 15 days • Packaging Details: Well packed polythene packing
Max Width of Work Piece - 200 mm / 8 inch
Electric Motor Circular Saw - 1 HP / 2800 rpm / 3 phase
Max Circular Saw Diameter x Bore - 254 x 19.05 mm / 10 x 3/4 inch
Table Size - 740 x 470 mm / 29 x 18 1/2 inch

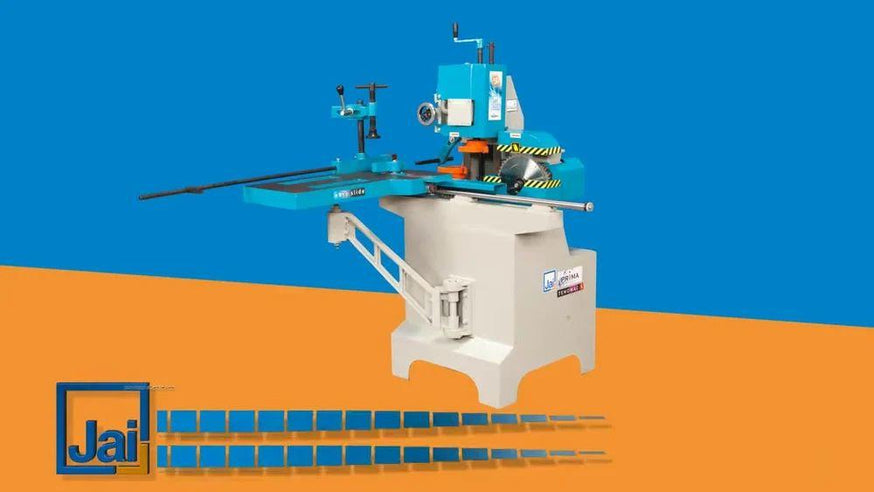

Model No - J-1919
Max Length of Tenon - 150 mm / 6 inch
Weight of Machine - 350 Kg
Country of Origin - Made in India
Size of Dust Collection Port Diameter - 100 mm / 4 inch
Top Cutter Block Horizontal A - 25 mm / 1 inch
Minimum Order Quantity - 1 Piece
Table Movement - 800 mm / 32 inch
Max Depth of Cut of Circular Saw - 50 mm / 2 inch
Two Nos Electric Motor Tenoning - 2 HP / 2800 rpm / 3 phase
