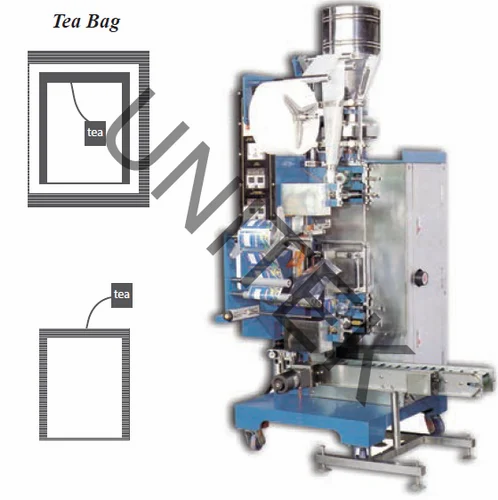

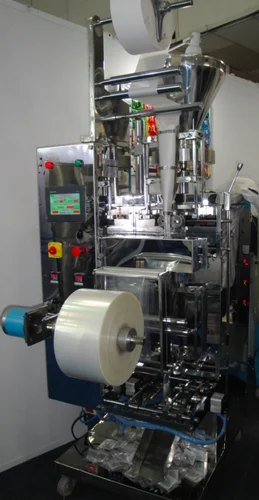

PLC operated with Touch Screen panel tea bag machine comprises of Tea Bag in Outer Envelope Packing Machine. The tea bag is formed in the first station and the outer envelope is simultaneously formed in the second station. The formed tea bag is then automatically inserted into the outer envelope and the outer envelope is sealed. This machine is suitable to pack Tea, Herbal products, Coffee. Features: • All components in direct contact with the product are made of stainless standards or food sanitary parts. Motorized adjustment of measuring cups. • This machine is designed for three sides sealing packing. • Outer envelope intermittent sealing • Assembly with inbuilt batch cuttingSpecifications: • Packaging type: 3 sides sealing • Packaging weight: 1-5g ( Varies with product density) • Internal packing size: (w) 60mm* ( L) 55mm, packaging size up on request • External packing size: Film width 160mm x bag length 100mm, packaging size up on request • Packaging speed: 30-50( bags) / min • Motor: 0.5 HP • Power supply: 2 kw - 220 V 50 HZ • Machine dimensions ( L x W x H): 155 x 130 x 235cm ( Approximately) • Packing dimensions ( L x W x H): 18 5 x 103 x 220cm cm ( Approximately) • Net weight: 600kgs • Gross weight: 720kgs • Optional Attachment: Electronic contact coder, Out feed conveyor, Printing Devices • Air Compressor: 6 CFM Additional Information: • Pay Mode Terms: T/T (Bank Transfer), Other • Port of Dispatch: NEW DELHI • Production Capacity: 25 sets as per customers requirement • Delivery Time: within 10-60 days • Packaging Details: Sea worthy wooden crate packing as per customers requirement.
Driven Type - Electric
Capacity - 30-50 tea bag per minutes
Bag Type - Filter Paper
Automation Grade - Automatic
Voltage - 220 V
Frequency - 50-60 Hz
Brand - Unitek
Power - 4.5 kW
Minimum Order Quantity - 1 Piece
