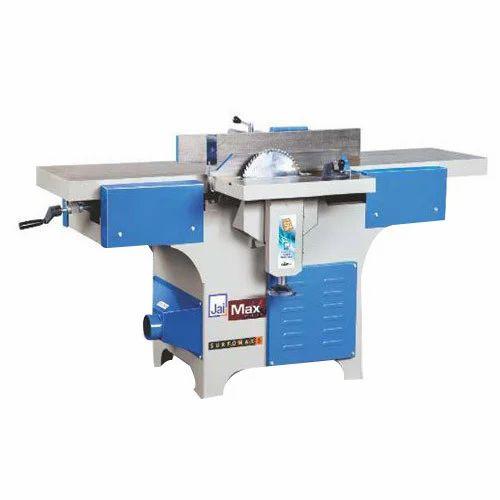

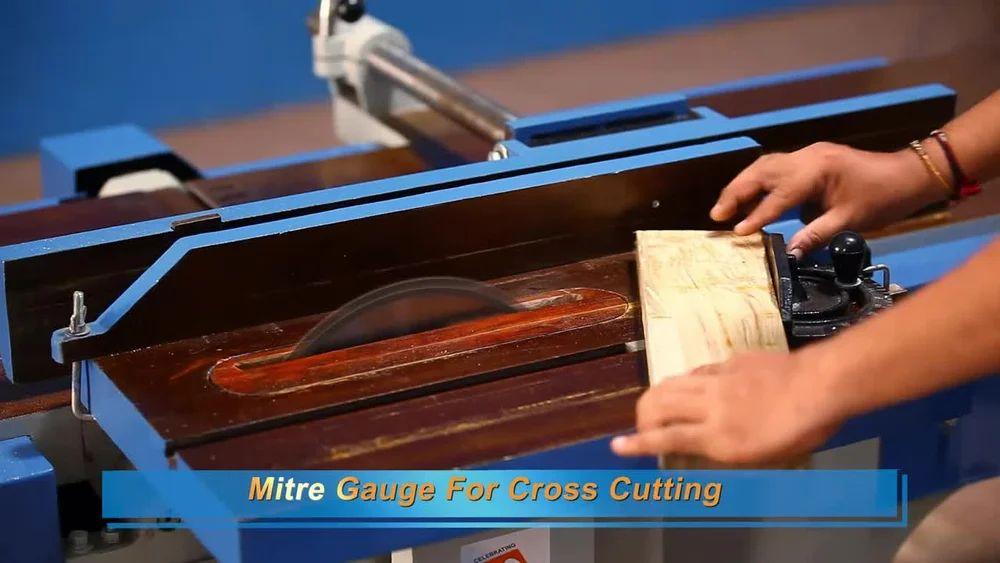

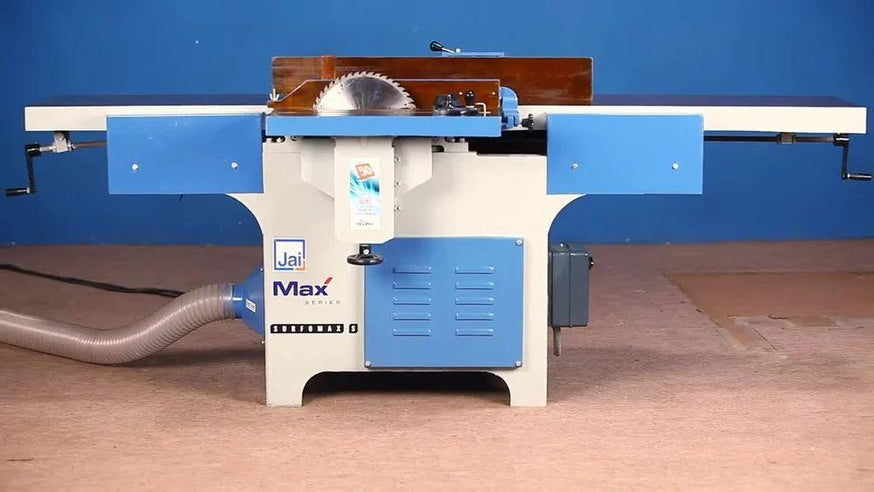

A heavy duty & sturdy machine combining precision, it has some of the best salient features along with provision to fit dust collector. Standard Accessories3 planer blades fitted in cutter block, Mitre gaugeMotor pulleyMotor fixing plateToolkit & m/c manual. Other Product Details ModelJ-3013J-3013 LJ-3018 Lmm / inchmm / inchmm / inchSurfacing capacity330 / 13"330 / 13"455 / 18"Length of surface table1675/66"1980/78"2285/90"Rebating capacity8 / "8 / "8 / "Cutter block diameter95 / 3.75"95 / 3.75"95 / 3.75"Cutter block speed (RPM)400040004000Standard cutter block-code No.3B-W3B-W3B-WCircular saw table size600x355 / 231/2"x14"600x355 / 231/2"x14"600x355 / 231/2"x14"Up/Down movement of circular saw table75 / 3"75 / 3"75 / 3"Max. circular saw diameter300 / 12"300 / 12"300 / 12"Size of dust collection port-Dia.100/4"100/4"100/4"Power required HP / RPM3 / 14403 / 14405 / 1440Approx. wt. of machine-kg.415450525 Additional Information: • Production Capacity: Readily Available • Delivery Time: 15 days • Packaging Details: Well Packed Polythene Packing
Model No - J-3018
Minimum Order Quantity - 1 Piece

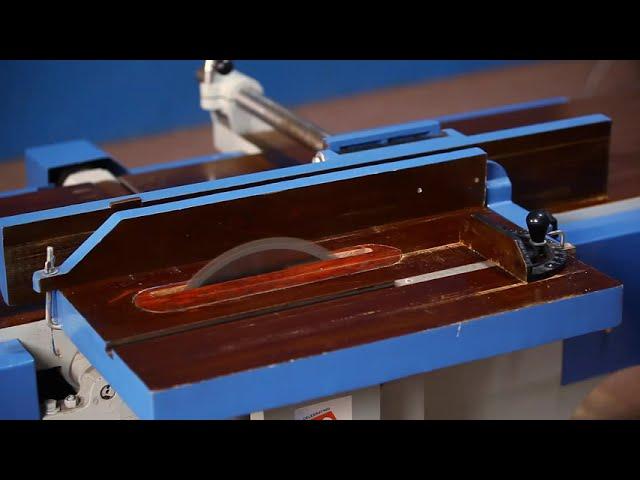

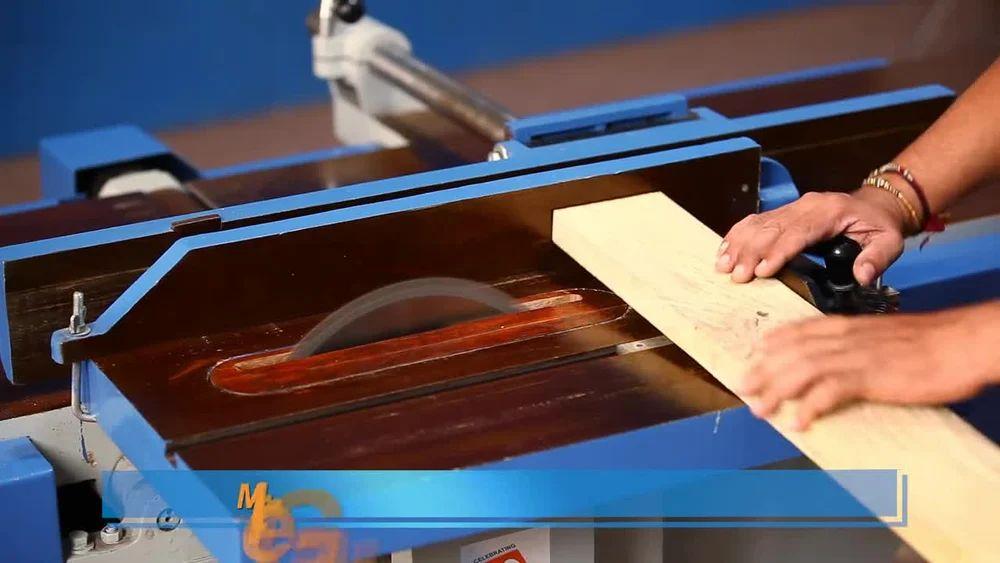

Circular Saw Table Size - 600 x 355 mm / 23 1/2 x 14"
Brand - JAI
Weight - 475 Kg
Usage/Application - Wood Working
Standard Cutter Block Code No - 3B-W
Max Circular Saw Diameter - 300 mm / 12"
Length of Surface Table - 1980 mm / 78"
Power Required - 5 HP / 1440 rpm
Size of Dust Collection Port Diameter - 100 mm /4"
Cutter Block Speed - 4000 rpm
Up Down Movement of Circular Saw Table - 75 mm / 3"
Cutter Block Diameter - 95 mm / 3.75"
Rebating Capacity - 8 mm / 5/16"

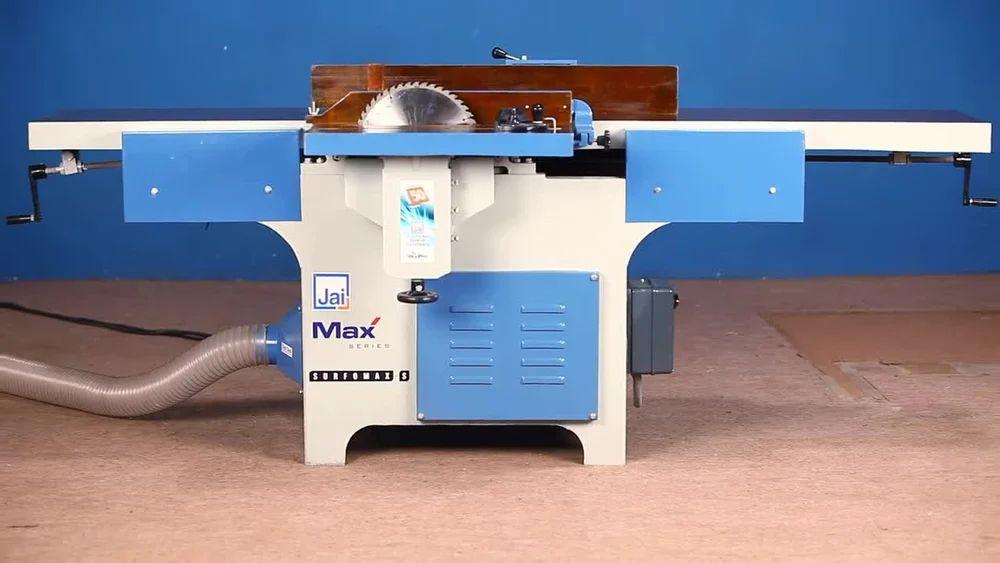

Model Name/Number - Surfo max-s J-3018 L
Surfacing Capacity - 455 mm / 18"
