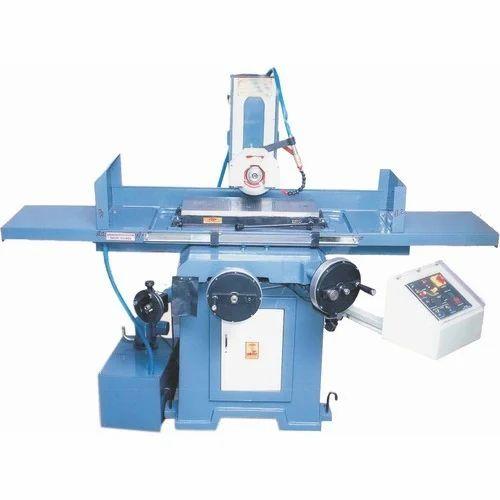

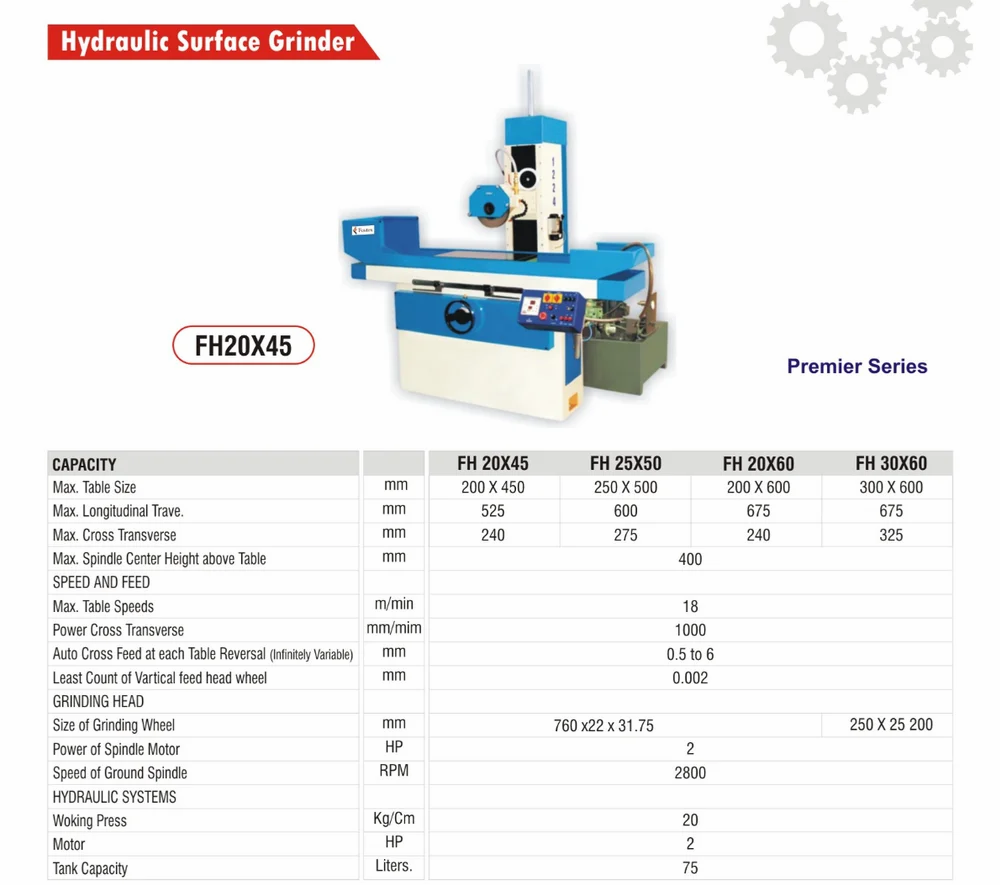

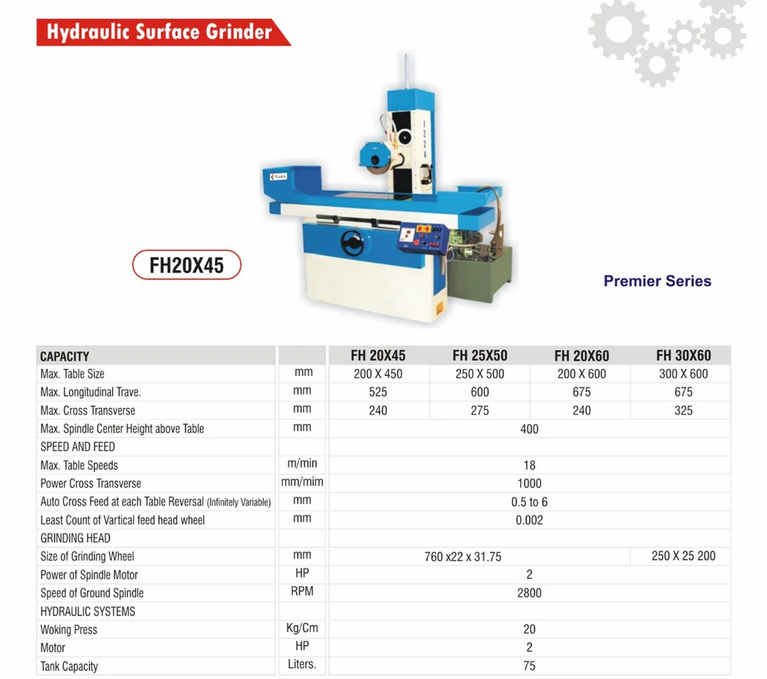

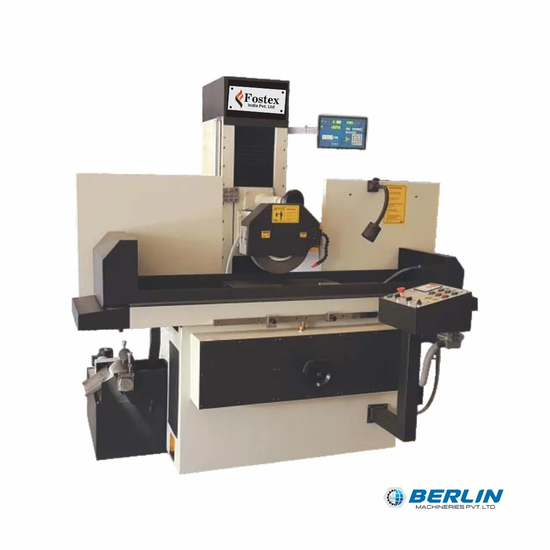

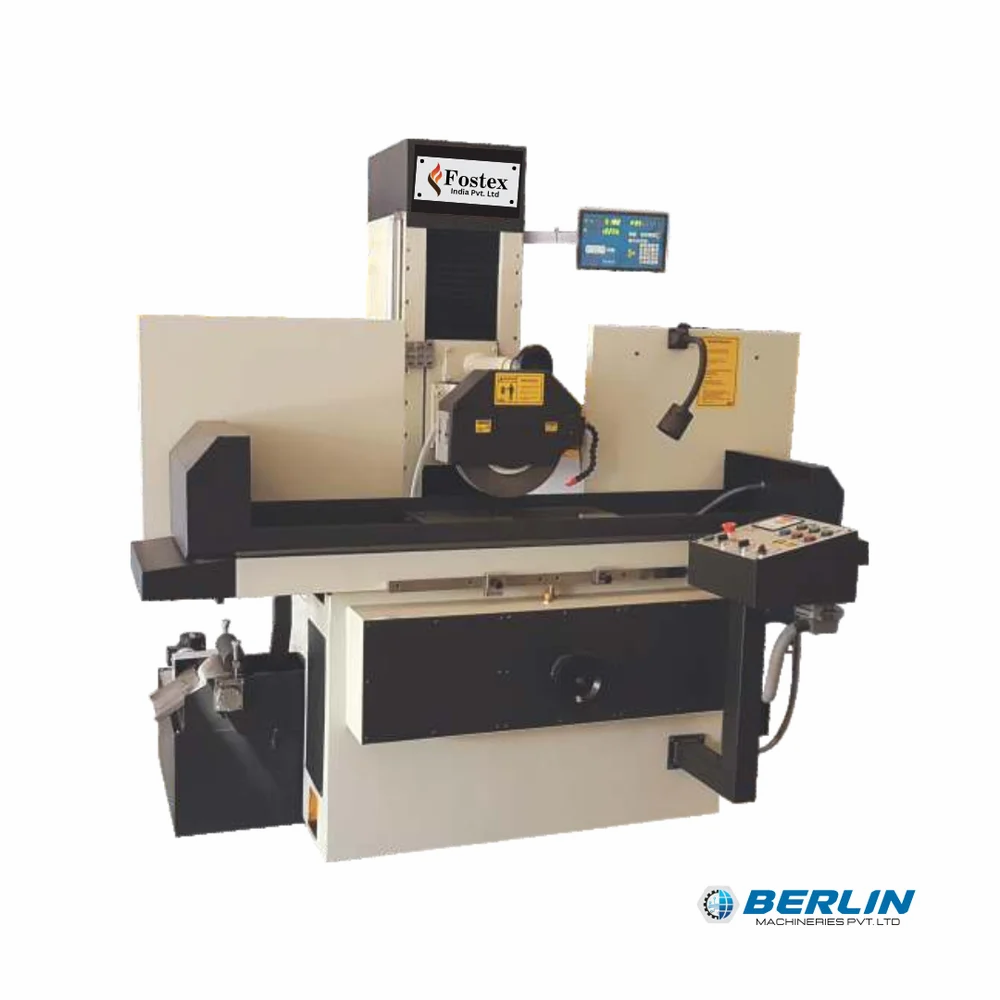

Key Features: • Moving column type hydraulic surface grinder machine. • Constructed using naturally seasoned materials equivalent to MEEHANITE grade, providing optimal ribbing for enhanced stability. • Maximized vibration damping capacity for superior rigidity-to-weight ratio. • Utilizes the latest design with all three axes operating independently. Z Axis (Vertical Feed): • Vertical feed with an increment of 0.002 mm as standard. • Spindle housing driven by an AC induction motor via a precision trapezoidal lead screw with nut. X Axis (Grinding Table): • Grinding table travels on prism-flat ground Turcite-B lined guide ways. • Table design adheres to the European standard ratio of 2:1 for column-moving configuration, ensuring minimal overhang. Y Axis (Auto Cross Feed): • Auto cross feed with incremental variable feed. • Cross slide with column driven by an AC induction motor and drive mechanism. Additional Features: • Auto centralized lubrication system for ease of maintenance. • Grinding spindle cartridge assembled with imported super precision bearings, grease-packed with high-quality grease for lifelong trouble-free service • Additional Information: • Item Code: FH25X50 • Pay Mode Terms: L/C (Letter of Credit), T/T (Bank Transfer) • Port of Dispatch: ANY PORT OF INDIA • Delivery Time: READY STOCK OR 4-6 WEEKS
Electric Motor Recommended - 3 Phase 2 HP
Table Speed (m/min) - 1.5-18
Automatic Table Travel (mm) - 525X225
Spindle Speed - 2800 rpm
Type of Grinding Machine - Surface Grinding Machine
Brand - Fostex
Max. Distance between Grinding Wheel & Table (mm) - 400
Vertical Feed Graduation - 0.002 mm
Size of Grinding Wheel (Dia x Width x Bore) - 250x25x76.2
Minimum Order Quantity - 1 Piece
Vertical Head Traverse (mm) - 400
Max Height Trom table to Grinding Wheel - 400 mm
Table Clamping Surface (L*W) - 250X500
