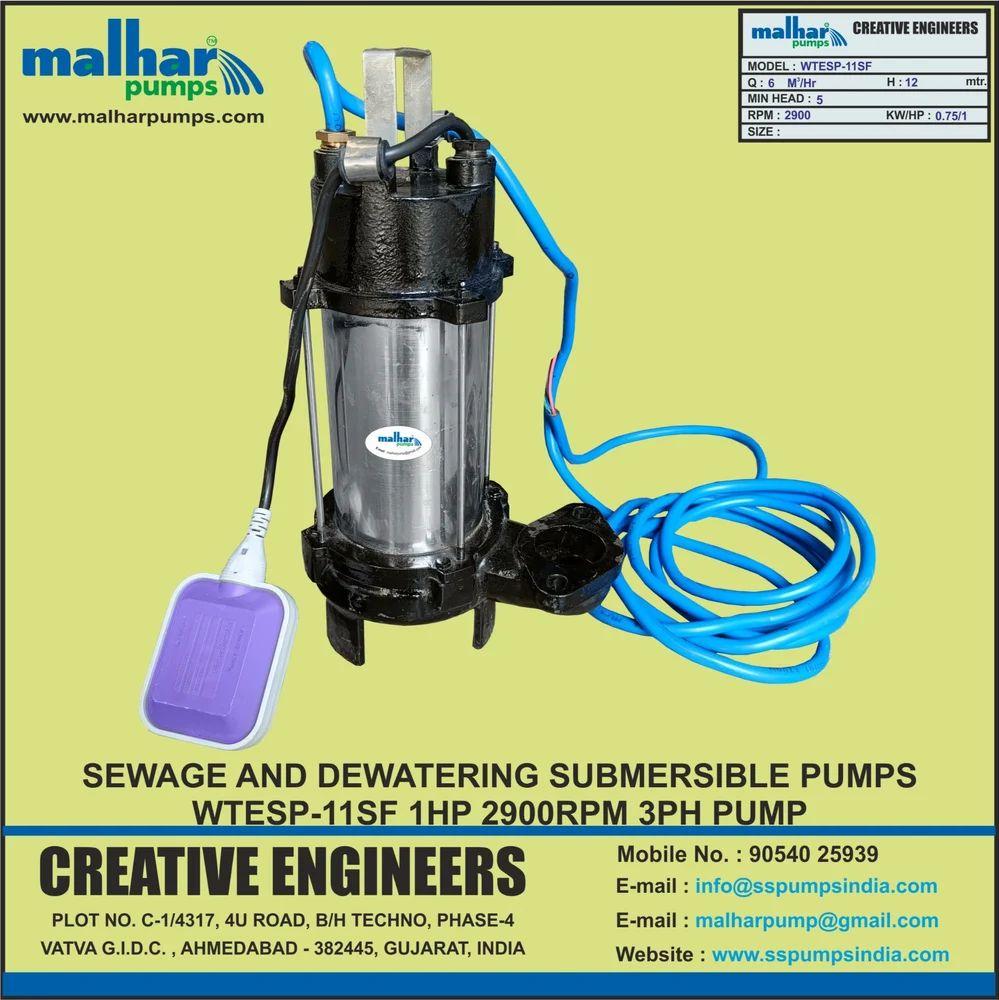

SEWAGE & DEWATERING SUBMERSIBLE PUMPSAPPLICATIONS:- • Effluent with slurry and solids. • Dewatering man-hole sewers. • De- silting. • Storm/Flood water transfer. • Drainage of sewage from the building basements, hotel industry, wastes water from factories. • Drainage of sewage from industrial process factories. emptying of septic tanks, cesspits and sewage pump stations. • Pumping surface and drainage water from garages and sprinkler systems. • Quick out installation • Cooling Jacket Arrangement, • Single phase pumps are provide with auto water • level control & Thermal Protection. RANGE:- • HP: UP To 200 HP • RPM: 3000 / 1500 / 1000 RPM • Size: UP To 12” • Head: Up to 90 Mtr. • Capacity: Up to 3000 lpm (In High speed pump), Up To 15,000 lpm (In Low Speed pump) • Stage: One • Solid Size: Up to 100 mm • Concentration: Up to 30%MATERIAL OF CONSTRUCTION:- • Motor Body: CI/SS, •Cooling Jacket: MS/ SS, •Casing: CI/MS, •Impeller: Cast Iron / SS, •Shaft: SS, •Hardware: SS, •Oil Chamber: CI Quick Out •Coupling: CI / SS •Strainer: SS with 6 or 10 mm round holes Mechanical Seal:- TC/TC or Silicon Carbide, Bi Directional Twin Mechanical seal with various face combination Looking to the Application. Cable: PVC Insulated Double SheathedCopper Conductor flexible Cable
Pipe diameter - 4"
Power - 10 HP
Head - 10 Meter
Usage/Application - SLUDGE
Solid Handling Capacity - 30MM
Max Flow Rate - 1800LPM
Solid Handling Capacity (mm) - 30MM
Minimum Order Quantity - 1 Piece
Outlet Diameter - 4" INCH
