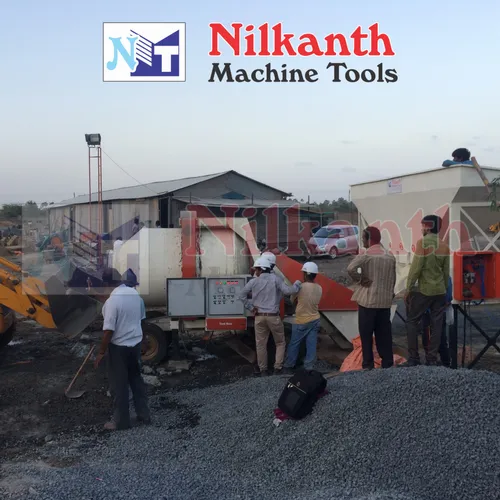

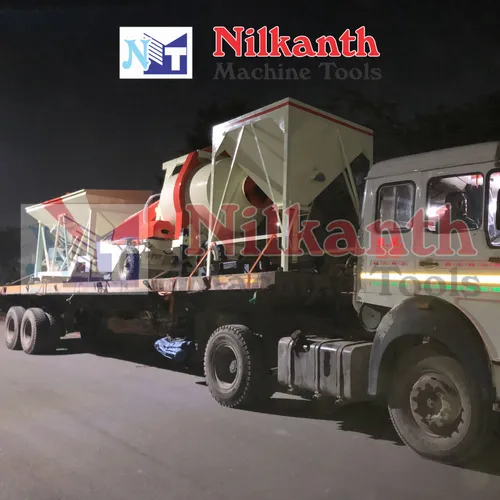

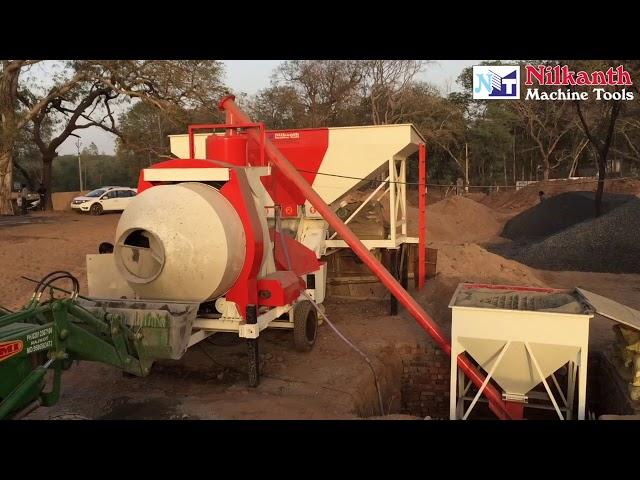

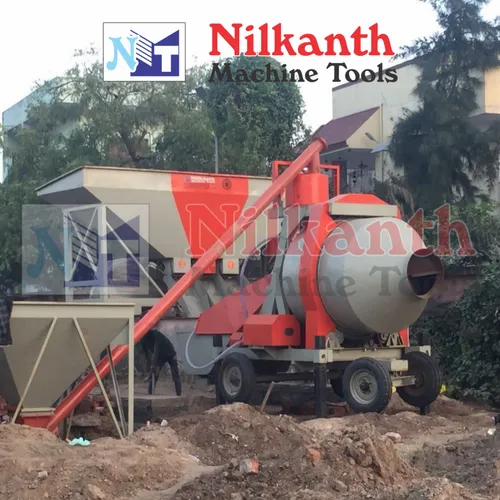

Semi Automatic Concrete Batching Plant

Regular price
Rs. 1,100,000.00
Sale price
Rs. 1,100,000.00
Regular price

Specifications: Model no. UnitThree BinsHopper capacityCu. M1.5 Cu. M Each X 3 Bins = Total 4.5 Cu. MNo of hopperNo3 Nos. Discharge gateNo3 Nos Pneumatic. Air CompressorHP2 HPPneumatic tyreNos4Hopper VibratorHP0.25 For sand hopper. Chassis-Heavy Duty symmetrical ChassisWheels-600 X 16 Pneumatic Tyre – 4 No’sJack Leveling-Mechanical fix type – 4 nos. Weight (Approx)Kgs.2500 Kgs. Electric Panel-To synchronize with mixer
Control Panel Type - micro processor type
Automation Grade - Semi-Automatic
Number Of Bins - three
Air Compressor - 3 HP
Voltage - 440
Color - white & orange
Load Cells - 6 Nos
Design Type - mobile
Water Pump - 1 HP
Water Tank - no
Model/Type - semi automatic concrete batching plant
Feeding Mode - Automatic
Concrete Discharge Height - 5 fts
Water Scale - Timer base
Country of Origin - Made in India
Material - Mild Steel
Speed Of Mixing Drum - 16
Gates - Automatic
Frequency - 50 Hz
Control System Type - micro processor type
Number Of Phases - 3 Phase
Weighing Range - 300 kgs in each bins
Size - 16ft X 6.5 ft X 7 ft

Title

Delivery

All Over India Delivery

Dimensions

6*6*10 Feet

Warranty

1 Year Complete Warranty

Semi Automatic Concrete Batching PlantSemi Automatic Concrete Batching PlantSemi Automatic Concrete Batching PlantSemi Automatic Concrete Batching Plant

Specifications: Model no. UnitThree BinsHopper capacityCu. M1.5 Cu. M Each X 3 Bins = Total 4.5 Cu. MNo of hopperNo3 Nos. Discharge gateNo3 Nos Pneumatic. Air CompressorHP2 HPPneumatic tyreNos4Hopper VibratorHP0.25 For sand hopper. Chassis-Heavy Duty symmetrical ChassisWheels-600 X 16 Pneumatic Tyre – 4 No’sJack Leveling-Mechanical fix type – 4 nos. Weight (Approx)Kgs.2500 Kgs. Electric Panel-To synchronize with mixer
Control Panel Type - micro processor type
Automation Grade - Semi-Automatic
Number Of Bins - three
Air Compressor - 3 HP
Voltage - 440
Color - white & orange
Load Cells - 6 Nos
Design Type - mobile
Water Pump - 1 HP
Water Tank - no
Model/Type - semi automatic concrete batching plant
Feeding Mode - Automatic
Concrete Discharge Height - 5 fts
Water Scale - Timer base
Country of Origin - Made in India
Material - Mild Steel
Speed Of Mixing Drum - 16
Gates - Automatic
Frequency - 50 Hz
Control System Type - micro processor type
Number Of Phases - 3 Phase
Weighing Range - 300 kgs in each bins
Size - 16ft X 6.5 ft X 7 ft
