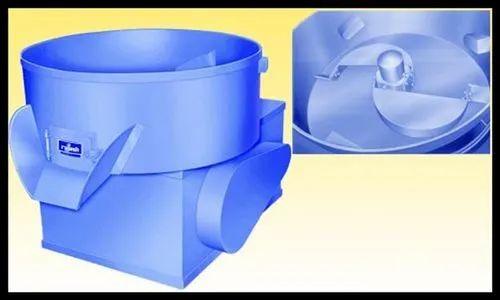

Being a well established-organization, we are engaged in providing a distinguished range of Core Sand Mixer. Keeping in mind the diverse demands of our clients, we provide this product in various specifications. The offered product is manufactured using quality tested raw material and latest technology in total conformity with the set industry standards. Our clients can avail this product from us at reasonable price. Product Description: Core Sand Mixer is specially designed on sound principles for mixing Foundry Core Sand Mixer and similar materials. The Sturdy chassis is robustly fabricated from heavy section M. S. Capable of with-chassis standing continuous heavy & hard use. This type Impellers (Blades) are of fabricated steel tips of wear resistive edge are replaceable, and mounted on center bracket. Breaker Blocks are provided at suitable height inside which gives a kneading action on the sand for a through mixing. The discharge door is side door type with positive locking. The counter system drive through V-Belt by motor, which in turn drive the bevel-Pinon Gear/Reduction Gear Box for Maximum efficiency. This is advance design for Big and Small Foundry. Specification: Batch Capacity (Approx.)R. P. M. of ImpellersEle. Motor H. P. Dia. of pan MM.- FT.50 KG33-403.0 H. P.750-2.5'75 KG33-403.0 H. P.750-2.5'150 KG33-405.0 H. P.900-3.0'250 KG33-407.5 H. P.900-3.0'300 KG33-4010.0 H. P.1200-4.0'400 KG33-4012.5 H. P.1200-4.0'500 KG33-4015.0 H. P.1500-4.0'750 KG33-4020.0 H. P.1500-4.0'1000 KG33-4030.0 H. P.1800-6.0'2000 KG33-4050.0 H. P.2100-7.0'
OEM Service - Yes
Capacity - 25 Kg to 2 Ton per Batch
Color - Smoke Grey
Material - Mild Steel
Minimum Order Quantity - 1 Unit
Usage/Application - Industrial
Automation Grade - Manual
Brand - Rajesh
I Deal In - New Only
Country of Origin - Made in India
