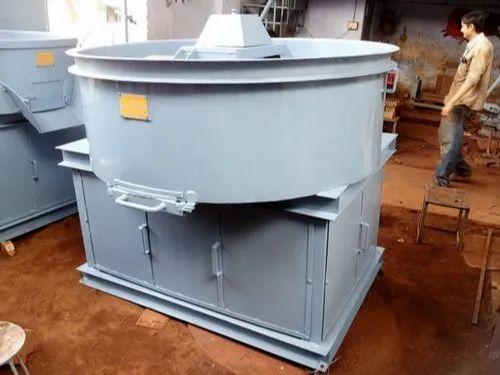

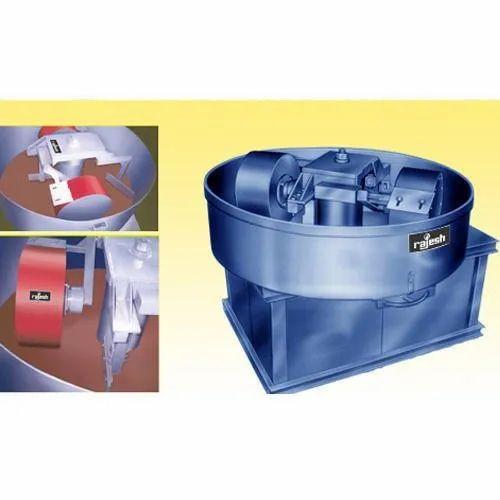

As per the requirements of our clients, we are engaged in providing a high quality range of Sand Mix Muller. The offered product is manufactured using high quality raw material and latest technology in observance with the set international norms. Known for its features like high-performance, corrosion resistant and best quality, this product is highly demanded in the market. Product Description:"RAJESH" Heavy duty ash Mix-Muller are specially designed, sturdy constructions and easy maintenance. Best Quality and tested raw materials are used and hence long life ensured even at high working rate. Means fit it forget it. Scrappers: Two scraper are provided for combined mixing and aerating action. One aerating the sand the periphery of the pan and the other around the center block. These scrapers are so arranged that sand is continually through in the path of rollers which ensure through mixing & mulling. Muller: Muller are made of heavy weight and having more width. The special design of eliminate the possibility of jamming. Mixer: Special design of mixing arm helps to mix quickly. Usually the plate of mixing arm needs often replacement. Due to special design replacement of plate becomes very easy. Bearing: Right type and size of bearing and use of more number of bearing in cover the life of machine and consume less power. Gear & Electrical: electrical motor and gears are totally enclosed by covers. Enclosed mechanism protect against accidents and also reduce the vibration and notice. Self lubricating gears are reduce the maintenance cost down time and increase the life of gears and bearings. In short the machine is perfect in respect of desired performance and out put with maximum sturdiness, durability and reliability. The installation as also maintenance of the machine is very easy. Technical Specification: Batch Capacity (Approx.) Ele. Motor H. P. Muller Size Dia. X W. R. P. M. Of Muller (Approx.) Dia. Of Pan MM.-FT (Approx.) 25 KG. 2.0 H. P 10" × 5" 24-28 750-2.5' 50 KG. 3.0 H. P 12" × 6" 24-28 900-3' 75 KG. 3.0 H. P 12" × 6" 24-28 0.25 HP, 150 KG. 5.0 H. P 16" × 8" 24-28 1200-4' 250 KG. 7.5 H. P 18" × 19" 24-28 1500-5' 300 KG. 10.5 H. P 18" × 19" 24-28 1500-5' 400 KG. 12.5 H. P. 18" × 19" 24-28 1500-5' 500 KG. 20.0 H. P. 20" × 10" 24-28 1650-5.5'
Batch Capacity - 200 Kg, 100 Kg, 25 Kg, 300 Kg
Muller Diameter - 10 Inch
RPM of Muller - 24-28
Pan Diameter - 750 mm to 2.5 Ft
Muller Width - 5 Inch
Material - MS
Motor Power - 2 HP
Automation Grade - Manual
