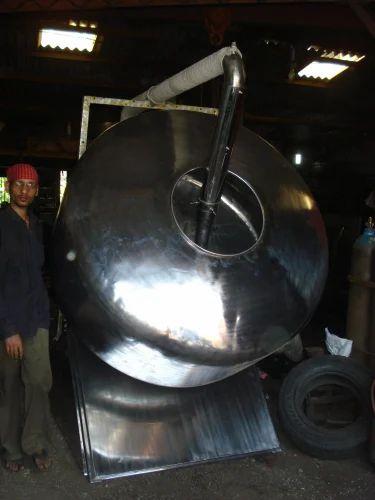

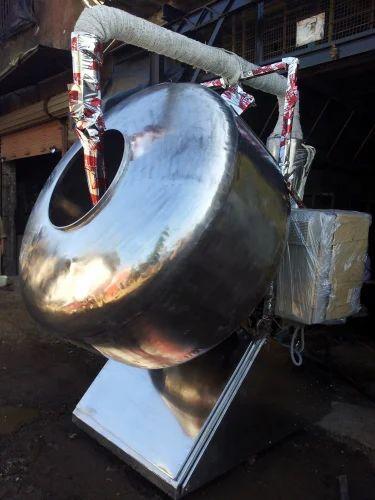

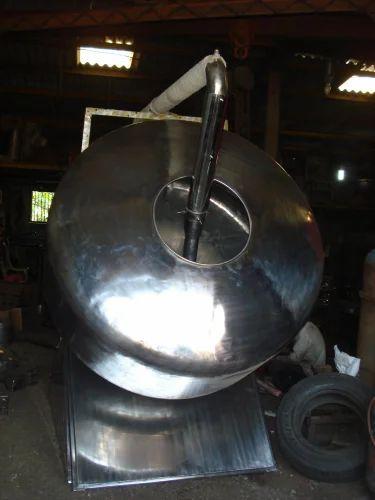

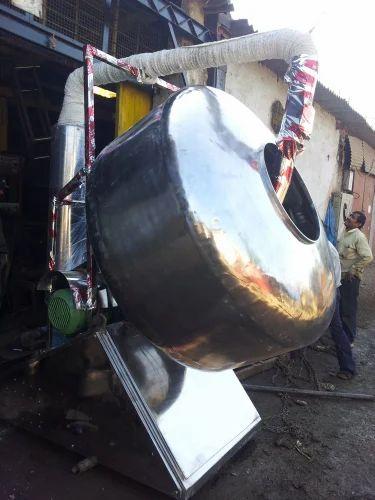

These machines can be supplied in either stainless steel construction, and in ‘onion’ or ‘tulip’ shapes. We supply machines either with a fixed angle base, or with variable angle from 0-80°. The variable angle pan has a motorized tilt unit and scale to indicate the angle. The pans can be supplied with a fixed speed, 3 speed, or variable drive mechanisms depending on the Client’s preference. The pans can be rotated in clockwise or anti-clockwise directions. Technical Specifications: Pan rotation speed25/30/35rpm (3 speed) 15-40rpm (vari-speed pulley) 0-50rpm (Inverter)Pan drive motor0.8kwTilt drive motor0.4kwHot air blowers4.5kw heaters. Temperature range from ambient up to 70°C. Air blower variable from 1 to 4.5m³/min. Filter supplied. Cold air blowersAs above with heaters off.
ELE Motor - 2 hp to 5 hp
Automation Grade - Semi-Automatic
Heater Capacity - 2 kg.wat
Finishing - steel
Warranty - 1 year
Speed - vfd drive
s.s. 304 - stainless steel
Condition - New
Brand - sanjivan
Grade - s.s. 304
Material - Stainless Steel
Weight - 300 kg.
Minimum Order Quantity - 1 Number
Capacity - 10 to 50 kg.
