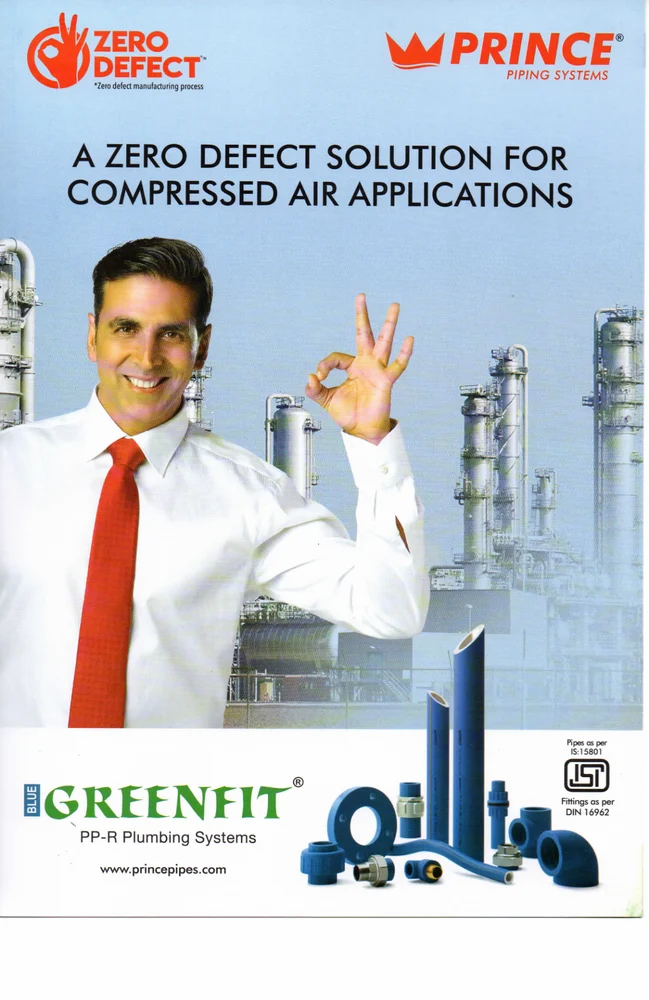

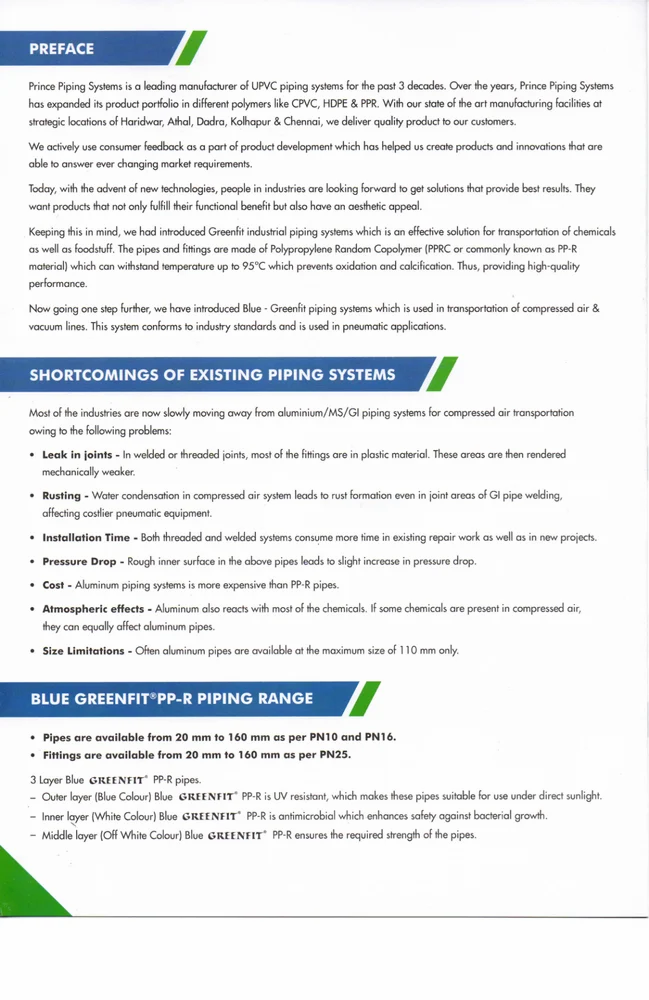

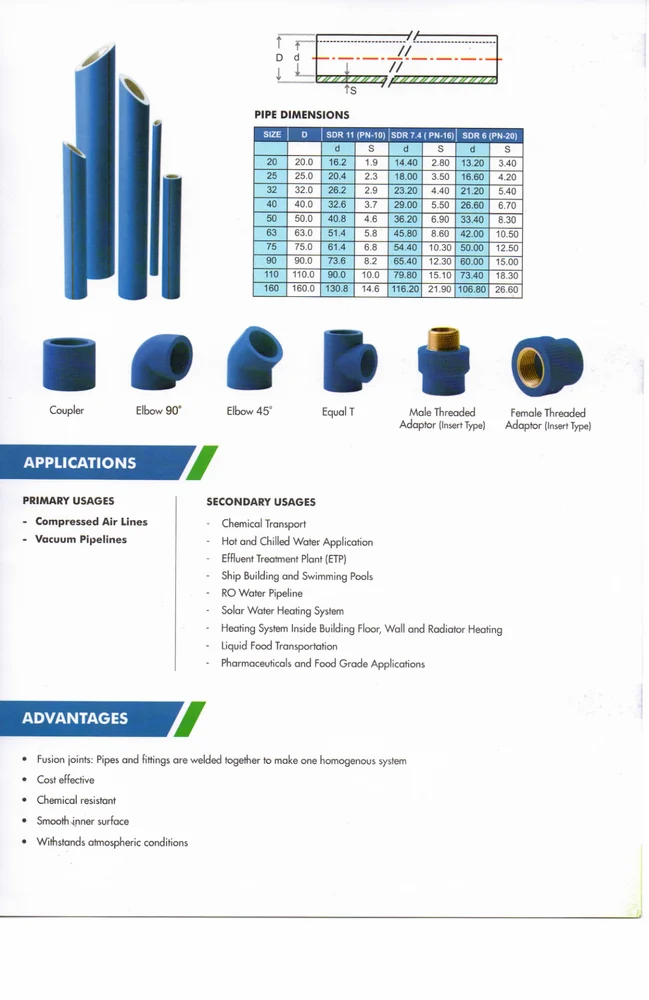

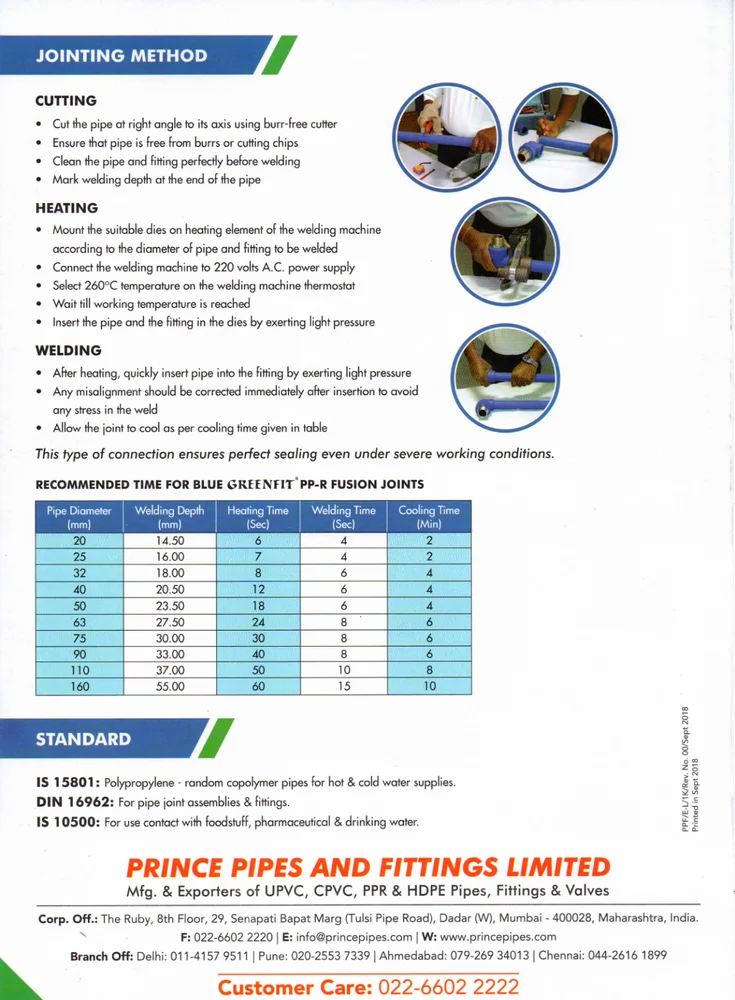

Compressed air, one of the major sources of industrial energy is being used increasingly in manufacturing and process industries. Modern process equipment, pneumatic controls and instruments need clean and uncontaminated air supply for their smooth functioning. In the past few decades, development of more advanced-design compressors and ancillary equipments was heavily felt. So, what we need is a new-age solution for compressed air and vacuum lines. Blue Greenfit industrial piping systems. Made of Polypropylene Random Copolymer (PPRC or commonly known as PP-R material) which can withstand temperatures from -0ºC up to 95ºC. Blue Greenfit is at par with global industry standards and is ideal for pneumatic applications. • Pipes: 20 to 160 mm as per PN 10 & PN 16 PN 20 • Fittings: 20 to 160 mm as per PN 20 & PN25 • Coil Pipe: 20 & 25 mm • Submersible Delivery Pipe: 90 & 110 mm FEATURES Proven hot & cold water performance from -0� C to 95� C No scaling. Can withstand higher ‘pH’ values UV resistant triple layered pipes are suitable for outdoor installations that are exposed to direct sunlight Good chemical resistance - suitable for most industrial liquids Heat-fusion jointing results in homogenous plastic system ensuring leak-proof joints Specially formulated thermax pipes reduce linear expansion / contraction of pipes due to temperature variance, ensuring suitability for outdoor application APPLICATION Compressed Air Lines Chemical Transport* Hot and Chilled Water Application Effluent Treatment Plant (ETP) Ship Building and Swimming Pools RO Water Pipeline Solar Water Heating Systems Heating System Inside Building Floor, Wall and Radiator Heating Liquid Food Transportation Pharmaceuticals and Food Grade Applications PIPES EXPLORE NOW FITTINGS • All • Moulded • Fabricated • Brass Inserts • Accessories Additional Information: • Delivery Time: 1 WEEK
Size - 20mm to 200mm
Welding Type - FUSION JOINT
Usage/ Application - Water, Chemical Gas
Material - PPRC
Color - BLUE
Usage/Application - Plumbing Pipe
