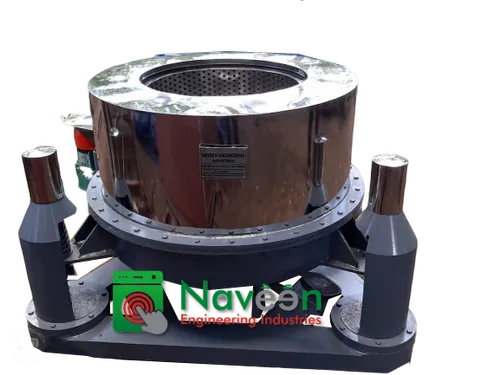

Being quality oriented organization, we are offering Non-coaxial Hydro Extractor to our clients. This extractor is acclaimed for its best performance. It is able to operate in reliable manner for years. This extractor is based on automatic operation and is offered in different grades to our clients. It is based on hydraulic concept and is reliable for years. This extractor is delivered within specified time frame to our clients. Features • Durable • Longer service life • Cost effectiveSpecifications • Outer Drum Cylindrical drum mode out of S. S • Inner Drum Revolving perforated drum made out of S. S. 304/316 • Volute M. S. Fabricated shell & bottom • Drive System The machine is driven by 440V, 3pH TEFC motor through clutch pulley V belts • Brake Mechanical leg brake system • Bearing Housing Made out of graded cast iron machines for close tolerance to heavy duty bearings with proper lubrication • External Finish Polished S. S. surface, attractive color ASPA paint on M. S. and C. I. surfacesTechnical SpecificationModelInner Drum dia/HtDrum R. P. MMotor H. PCapacity Kgs (WET)NHE -25625/350 mm1000325 KgsNHE -35775/350 mm1000540 KgsNHE -37925/4507855/7.550 KgsNHE -451025/50 mm7857.570 KgsNHE -491225/50 mm77510100 Kgs
Material - SS 304 & 316
Brand - Naveen
Automation Grade - Semi-Automatic
Usage/Application - Industrial, Laundry, Chemical
Speed - 1000 Rpm
Installation Services - Yes
I Deal In - New and Second Hand
