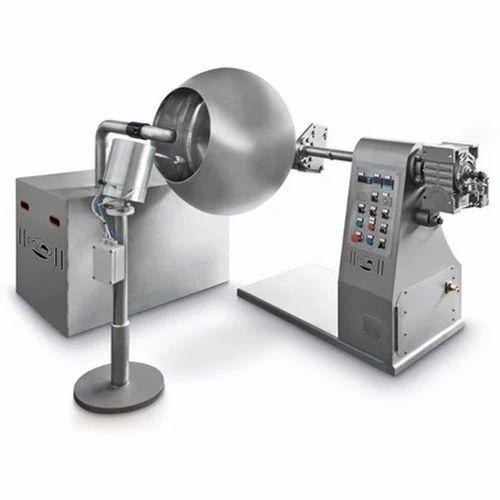

Tablet coating machines operate on relatively simple principles. Coating ingredients in the form of a solution are applied to a group of tablets in a bed that can move horizontally or vertically. The evaporation of the solvents is aided by a concurrent flow of heated air. We are providing Lab Tablet Coating Machine to our clients. We manufactuer and suply with various size, Capacity & Features as per customer requirement with best quality of product. Coating Machine is available with 12”, 24“, 30”, 36”, 42”, 48”, 60” or 72”, size SS Pan. Coating Machine is totally enclosed with MS Cladding with standard Gear Box, Motor, Hot Air Blowing arrangement. Machine is designed with MS fabricated structure and all arrangement –except electric control, air filter and SS Pan are inside the enclosure, which makes simple cleanable outside covering.30”, 36”, 42” or 48” Coating Machine has variable speed driveand hot air blowing system is built in the machine.60” or 72” Coating Machine has two speeds with step pulley without hot air blowing system. Suitable hot air blowing system can be supplied separately on demand. Coating Machines are provided with interlocked electrical circuit so that heaters can be operated only after blowers are made ‘ON’ to avoid burning of hearts. Coating SS Pan Mouth ring is soldered at their rim cavities to avoid collection of dirt or contaminated drug. Clit standards machinewith reduction Gear Box and Motor and all electrical controls are of Siemens or L&T make. Thermostat control can be provided on demand. On customer demand, Gear Box and electrical including motors can be provided local make for economic purpose.
Material Grade - SS 316
ExhaustBlower (CFM) - 400
Heater (KW) - 3
Exhaust Blower Motor (HP) - 1
Voltage - 440 V
Capacity - 12 liters
Model Number/Name - ILMCOM001
Material - SS
Automation Grade - Automatic
Frequency - 50 Hz
Usage/Application - Pharmaceutical
Minimum Order Quantity - 1 piece
Inlet Blower (CFM) - 200
Compressed Air (bar) - 6
Power - 5 Kw
Inlet Blower Motor (HP) - 0.5
