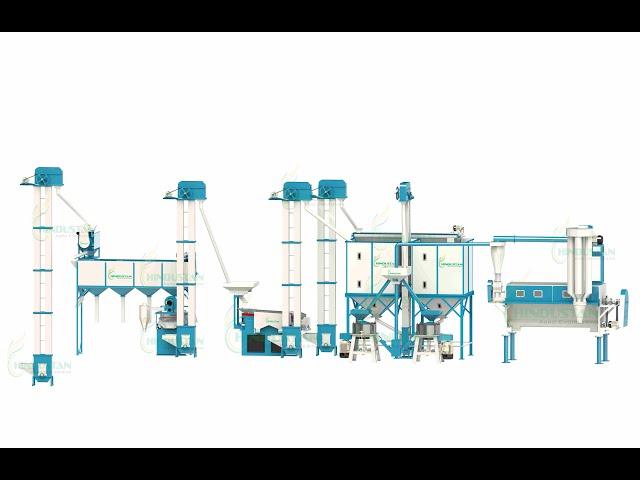

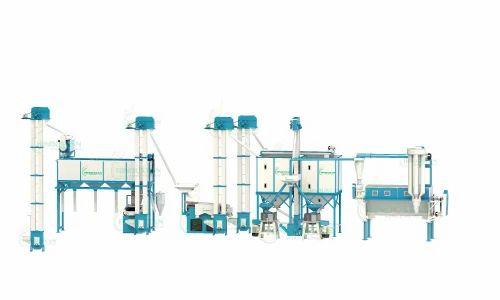

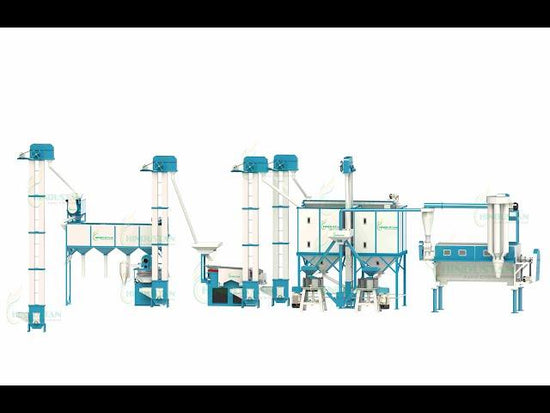

CLEANING MACHINE CAPACITY 2000 KG. PER HOUR WITH 1000 KG PER HOUR ATTA CHAKKI PLANTElevator-1❖ 4 INCH X 4 INCH BUCKET (PPCP MATERIAL)❖ ELEVATOR 7 INCH BOX SIZE, WITH COTTON BELT❖ 18 FEET❖ ELEVATOR DOOR4- SCREEN ROUND GRADER(SEPARATE BY SIZE, SEPARATED 5 DIFFERENT GRAIN SIZE)❖ WITH 10 NO. PERFOMETER JALI❖ GRADER SCREEN SIZE 3 FEET X 8 FEET❖ WITH BRUSH SYSTEM, WITH GEAR BOXDESTONER NO.4(SEPARATE BY WEIGHT, STONE REMOVING)CLEANER, BLOWER & CYCLONE SYSTEM(SUCK DUST & LIGHT IMPURITIES)ELEVATOR-2❖ WITH HOPPER SYSTEM❖ 11 FEETGRAVITY SEPARATOR❖ MODEL G2❖ CAPACITY 1.5-2 TON PER HOUR (BASED ON WHEAT)❖ SIZE OF DECK: 3 FEET X 5.5 FEET❖ 3 FAN❖ POWER: 6 HP❖ RECTANGULAR DECK❖ FAN 5 HP (3 PHASE)❖ DECK 1 HP (3 PHASE)GRAVITY PANEL❖ ELECTRIC DRIVE❖ AC DRIVE 1 HP MOTOR FOR DECK VARIABLEWHEAT CRUSHER(REMOVING HUSK FROM WHEAT)SCREEN SETACCESSORIES❖ STRUCTURE-STAND PIPE❖ FOUNDATION BOLT❖ PACKING❖ FORWARDING (LOADING)EXTRA ELEVATOR❖ 15 FEET X 2200❖ ELEVATOR BOX SIZE: - 7” X 7”❖ BUCKET SIZE 100MM X 100MM [PPCP MATERIAL]❖ WITH WINDOW AND HOPPER SYSTEAM❖ WITH COTTON BELT 8MM X 100MMVARAM CONVEYOR❖ 15 FEET X 2400STORAGE TANK❖ 8 X 5 X 5 FEET EACH TANK❖ WITH C-CHANNEL STRUCTUREFLOUR MILL 24 INCH CHAKKI❖ WITH RED/BLACK EMERY STONE PAIR❖ WITH PULLEY SET & V-BELTPNUMETIC SYSTEM❖ CYCLONE❖ AIR LOCK❖ BLOWER❖ PIPEINGCENTRIFUGAL ATTA SEPARATOR❖ WITH GERMAN MADE WIRE MESH NET Additional Information: • Production Capacity: 2000Kg cleaning with 500 Kg per hour • Delivery Time: 15 Days • Packaging Details: Plastic Pakaging
Motor Power - 58 HP
Frequency - 50 Hz
Material of Construction(Contact) - Mild Steel
I Deal In - New Only
Brand - Hindustan Agro
Dimensions - 69ft x 17ft x 18ft (L*W*H)
Minimum Order Quantity - 1 Unit
Voltage - 440 V
Driven Type - Electric Motor
Type - Pulverizer flour mill
Installation Services Required - Yes
Stone Size - 24 inch
Power Consumption - 1172Kwh
Capacity - 2000kg/hr cleanig with 500kg/hr
Usage/Application - Industrial
Is It Waterproof - Non Waterproof
Container Jali Number - 10
After Sales Service - Yes
Country of Origin - Made in India
Operation Mode - Automatic
Electricity Connection - Three Phase
