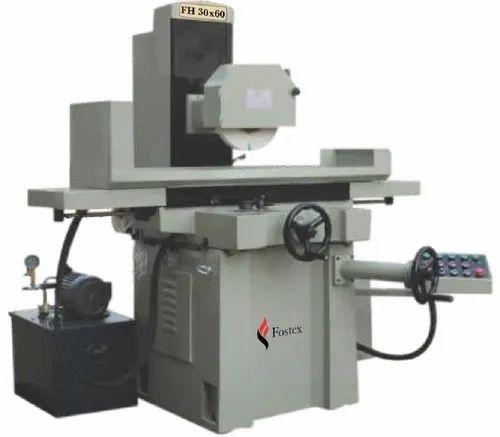

We are offering Hydraulic Surface Grinder Bed moving machine Additional Information: • Delivery Time: Ready stock or 4-6 weeks • Packaging Details: 1960x1630x1870mm
Model No - FH 30x60
Table Surface-Spindle Center distance (mm) - 480
Working Pressure - 3 Mpa
Grinding Area - 600 X 300 mm
Grinding Wheel Diameter(mm) - 300x30x75
Net Weight - 1400 kg
Max. Grinding Length (mm) - 600
Type of Grinding Machine - Surface Grinding Machine
Hydraulic Motor - 1.5 kW
Cross Feed Table Travel (mm) - 320
Longitudinal table Travel (mm) - 640
Gross Weight - 1550 kg
Minimum Order Quantity - 1 Unit
Max Flow Rate - 18 L/min
Overall Table Working Area (mm) - 600x300
Grinding Material - Metal
Oil Tank Capacity - 80 L
