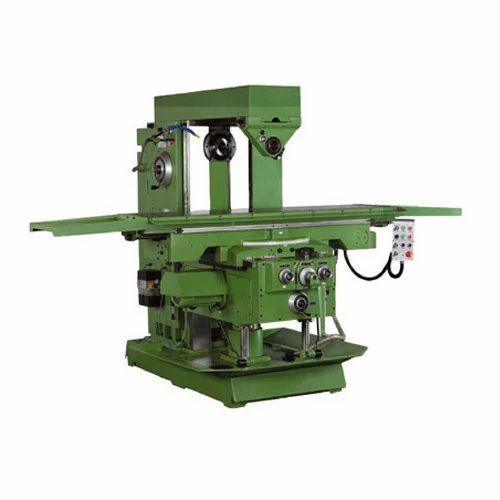

We are offering Horizontal Knee Type Heavy Duty Milling Machine that can be availed at affordable rates. Our clients can obtain these machines in multiple specifications. Features: • Consistent performance • Tough construction • Longer operational life • XY axes high precision ball screw, Z axis lead screw(Z-axis ball screw by option) • Heavy duty saddle. • Rigid square ways on cross & column. • Meehanite casting. • Hardened & ground on X, Y, Z slideways & table • Counter-balance weight device for milling head. • Rigid Designed Additional Information: • Item Code: X6150 • Port of Dispatch: ANY PORT OF INDIA • Delivery Time: 5 WEEKS
Number Width Distance of T Slot - 5-18-80 mm
Max Load Table - 1500 kg
Spindle Motor Power - 15 kW
Longitudinal Travel - 1530/1520 mm (Manual/Auto)
Transverse Travel - 360/345 mm (Manual/Auto)
Model - X6150
Table Size - 2000x500 mm
Overall Dimension - 2250x3200x2100 mm
Brand - Fostex
Vertical Travel - 630/610 mm (Manual/Auto)
Rapid Feed Speed - X/Y : 3000 Z : 1000 mm/min
Distance Between Spindle Nose and Table Surface - 10-640 mm
Spindle Speed Step - 17
Cutting Feed Speed - X/Y : 16-1800 Z : 5-250 mm/min
Machine Weight - 4600 kg
Spindle Speed Range - 45-1800 rpm
