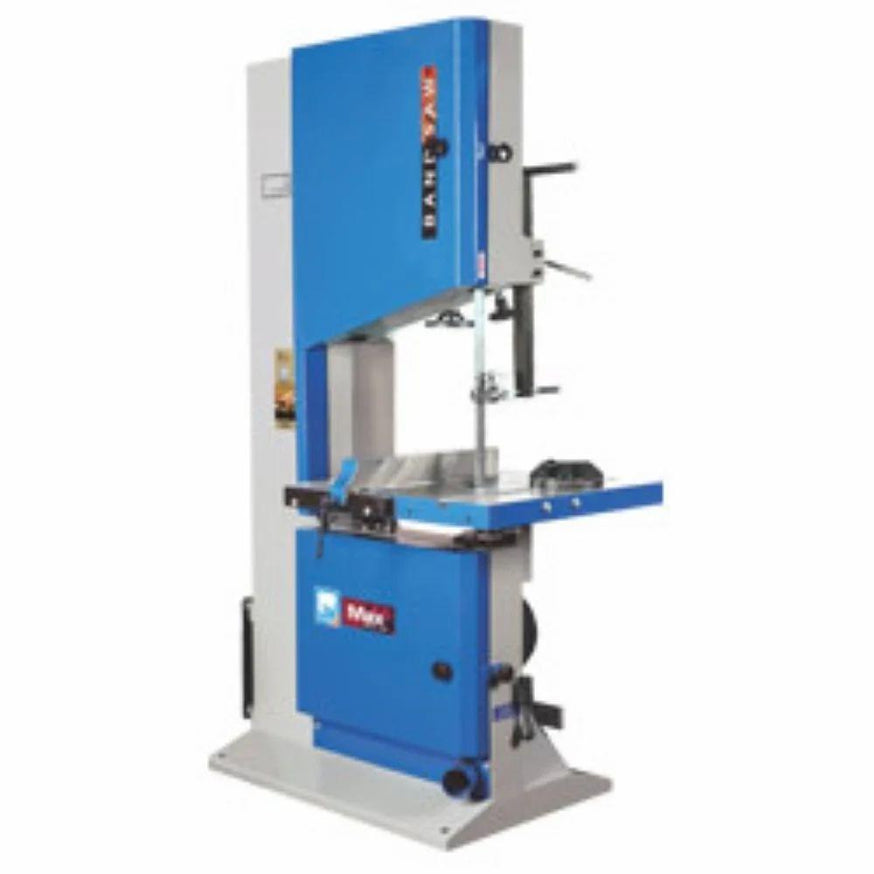

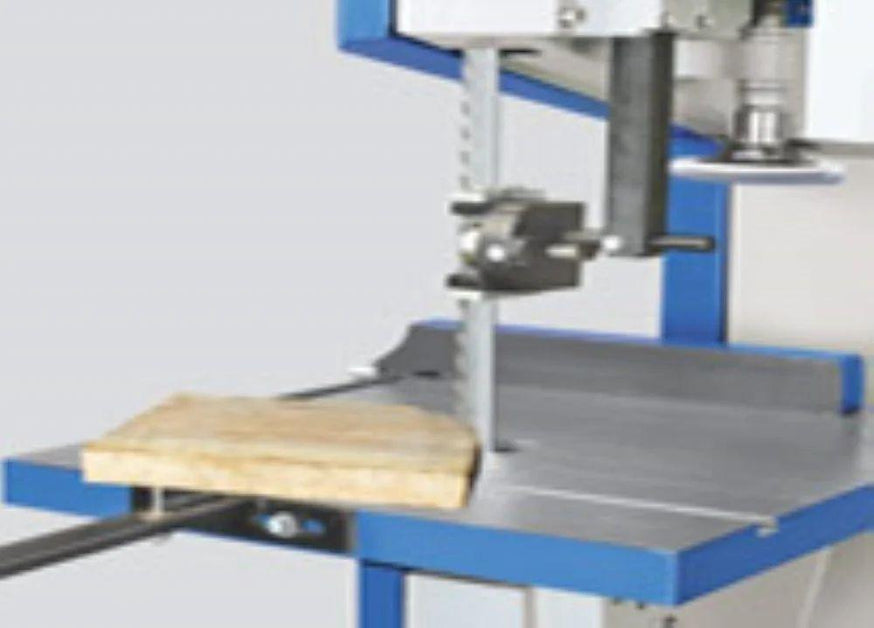

Global outlook and features for the professionals who value precision workmanship Specially designed heavy duty body for better strength. Dynamically balanced CI broad wheels for smooth operations. 45° table tilting for angular cutting.
Model Name/Number - J-540
Table Tilt Degree - 45 Degree
Capacity - 10 inch
Work table size - 535 x 585 / 21" x 23"
Approx. wt. of machine - kg - 300
Table Size - 535 x 585 / 21" x 23"
Automation Grade - Manual
Country of Origin - Made in India
Throat depth - 430 / 17"
Cutting Blade size - 18 Inch
Power - 3 HP
Speed of Saw wheels (RPM) - 500 / 750
Diameter of saw wheels - 455 / 18"
Max Cutting Capacity - 254 / 10"
Minimum Order Quantity - 1 Piece
Power Required HP/RPM - 3 / 1440
Width of saw wheels - 50 / 2"
Blade Length - 3535 / 139"
