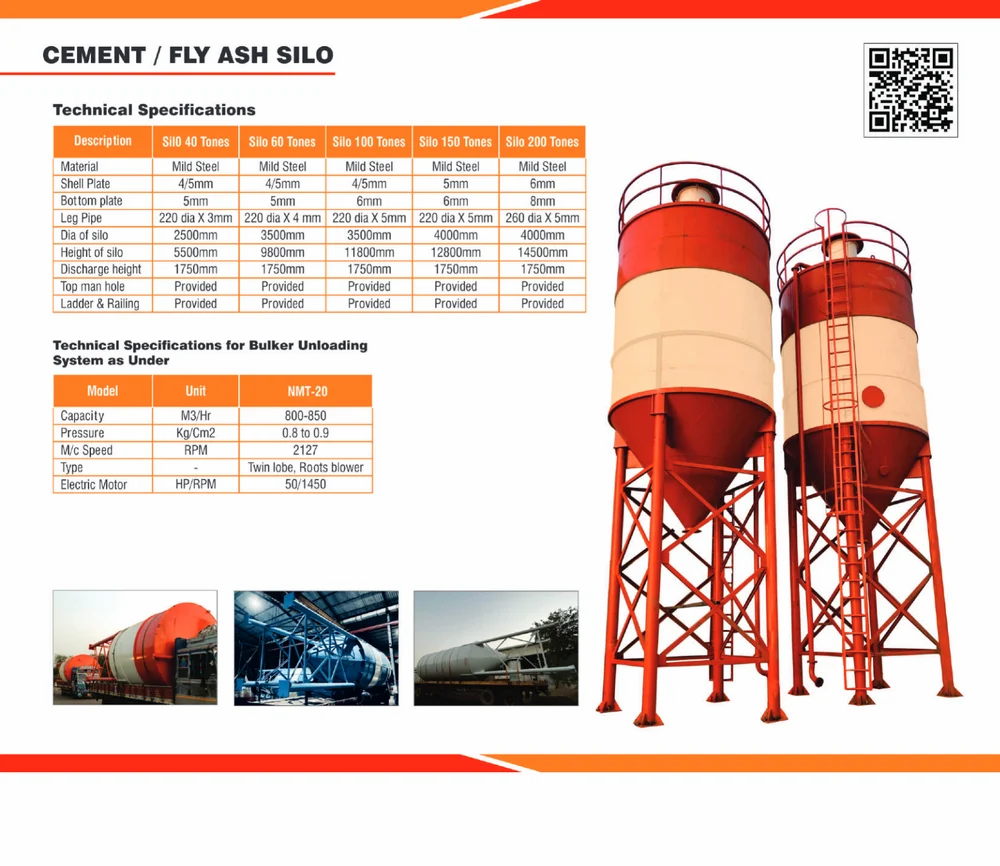

In order to cater the demands of our precious clients, we have come up with wide range of Fly Ash Silo. Features: • Durable • Excellent functionality • Highly efficientGeneral Technical specification of the Silo Shell is as below: • Diameter of Silo: 2500/2800/3400/4000 mm. • Thickness of plate: Shell 5 mm and bottom cone 6 MM and Top cone 5 mm • 4 / 6 legs each is 200 NB or ISMB 200. • Railing, Cage Ladder, Manhole on Top of Silo Included in Scope of Supply. • Cement Feeding Pipe Dia. 4” up to Foundation to Top Level.
Country of Origin - Made in India
Height - 30-40 feet
Container Length - 40 feet
Container Type - Tank Container
Storage Capacity - 30-150 ton
Material - Mild Steel
