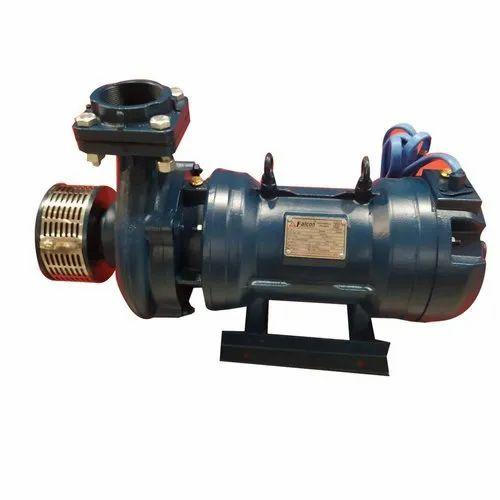

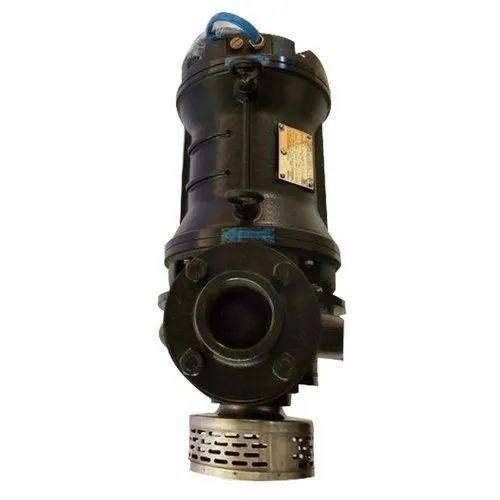

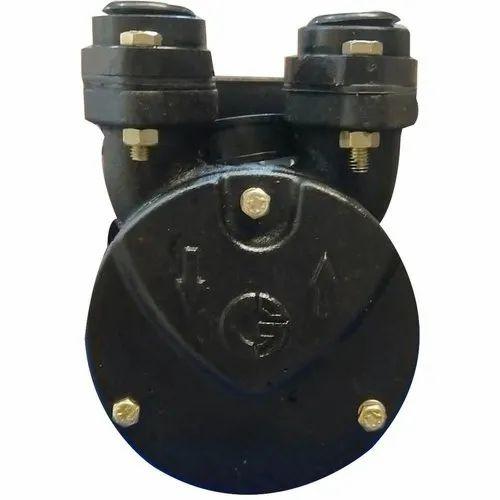

Product Description: • Falcon Openwell Submersible Pumpsets Are Ideally Suitable For Openwells Or Tanks Where A Wide Fluctuation Of Water Level Occur. This Works Under Water And Rest At The Bottom Of The Well. Prime Mover Is Rewindable, Water – Cooled Motor. Specially Designed Water Lubricated Bearings Are Used To Withstand The Axial Thrust Loads With Minimum Wear And Tear. The Stator Is Wound With Special Waterproof Synthetic Film Insulated Copper Winding Wires And Made Up Of Low Watt Loss Silicon Steel Laminations Assembled Under Pressure And Rigidly Locked. Motor Sealing Is Made By Polymers, 'O' Rings, Oil Seals And Sand Guard To Avoid Ingress Of Well Water/Salt Into The Motor. Pressure Equalizing Rubber Diaphragm Is Provided To Guard The Motor From Pressure And Volume Variation Of Water As Detailed In Our Operator's Manual. Three Phase Motor Requires An Adequate Motor Protection Control Panel. Applications: • Farming • Deep Well • Domestic • Water Supply • Industrial Salient Features:• • High Operating Efficiency • Noiseless Operation • No Need Of Pump House • Can Be Easily Dismantled And Repaired • Motor Designed With Higher Cooling Effect Ensures Longer Life • No Suction& Priming Problem Read & Understand Benifits: • High Operating Efficiency • Noiseless Operation • No Need Of Pump House • Can Be Easily Dismantled And Repaired • Motor Designed With Higher Cooling Effect Ensures Longer Life • No Suction& Priming Problem • Motor Body Available In Cast Iron / J4
Degree Of Protection - IP 58
Voltage - 380 V
Discharge Outlet Size - 25 X 25 mm
Frequency - 50 Hz
Method of Starting - Direct on Line
Maximum Starts Per Hour - 10 Times
Direction Of Rotation - Electrically Reversible
Capacity - 40 m
Brand - Falcon
Motor Phase - Three Phase
Max Flow Rate - 2200 LPM
Motor Speed - 2800 RPM
Ambient Temperature - 100 Degree Celsius
Material - Cast Iron
Usage/Application - Industrial
Motor Horsepower - 1 HP
Head - 65 m
Minimum Order Quantity - 2 Piece
