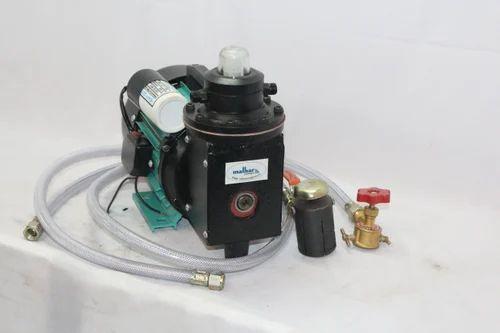

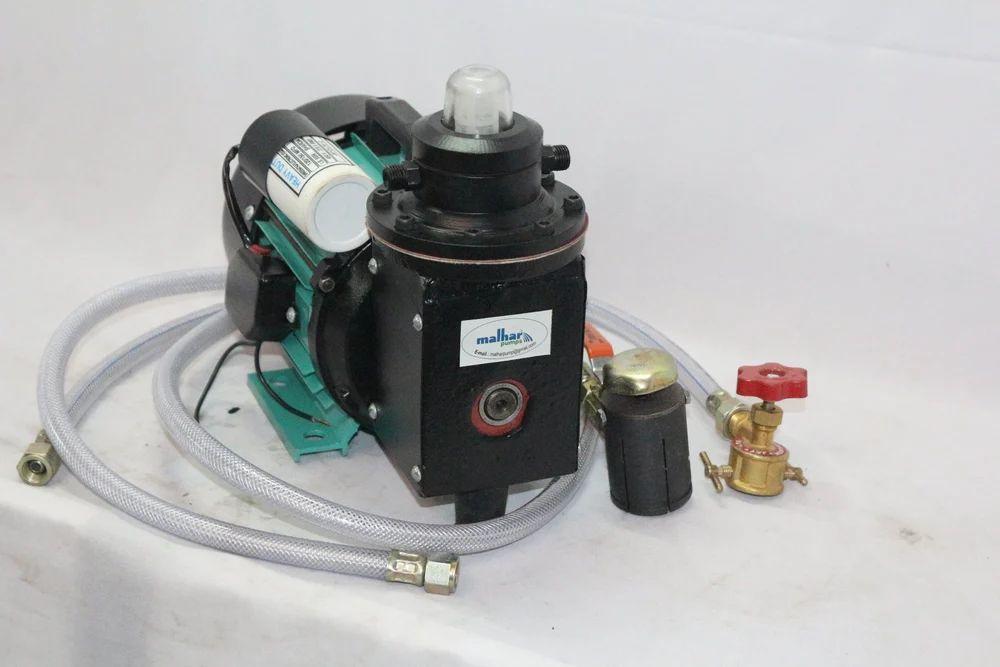

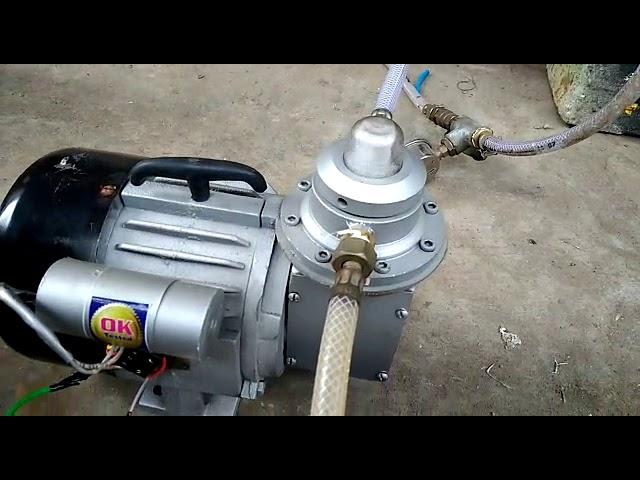

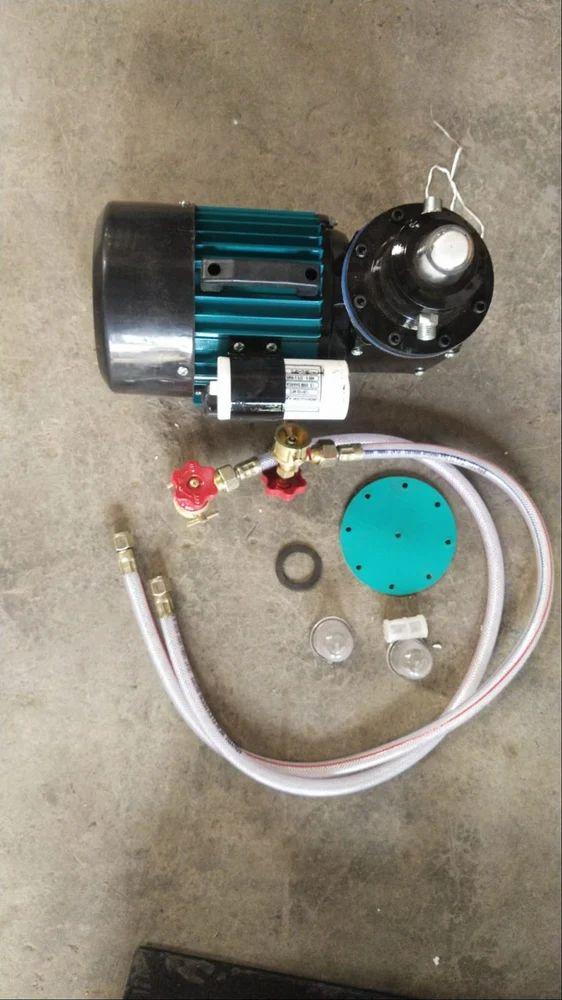

We are offering of LPG Pump. Meeting the requirements of handling highly compressed gases, lpg ac pump offered are developed as per defined industry parameters and also meet the defined safety standards for handling gases like lpg. Coming with non-sparking features, the construction material used also matches with the requirements of handling lpg gas application. Technical specifications: • Pump type:- ac (electric supply) lpg diaphragm pump, • Pump make:- “malhar” • Pump model:- md-ac-1 , • Suction x delivery sizes:- ¼ ” x ¼ ”, • Pump capacity:- 15 kg/7 minute I. E 2.14 kg/minute, • Maximum pressure:- 22 kg/cm2, • Pump weight:- 16 kg approx • Material of construction: • Standard cast iron construction. Ac motor specifications: • 0.5 hp x 1450 rpm, non flame proof motor totally enclosed fan cooled squirrel cage induction motors horizontal foot mounted b3 construction, continuously rated s1 duty suitable for single phase, 220 volts, 50 hz, ac supply (110 volts or 60 hz available on request) with ambient 45ºc & class “f” insulation. Scope of supply: • Ac lpg pump with suction and delivery pipes with valve, regulator and extra diaphragm
Motor Horsepower - 0.5hp
Pump Type - Jet Pump
Minimum Order Quantity - 1 Piece
Maximum Discharge Flow - 2.14kg/per minute
Discharge Pressure - 20kg
