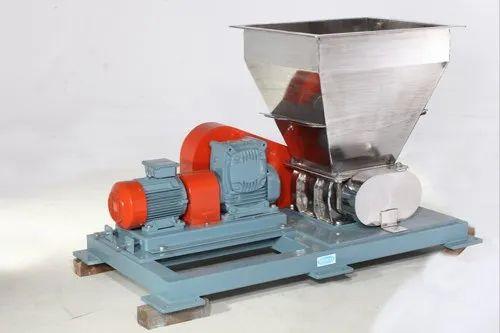

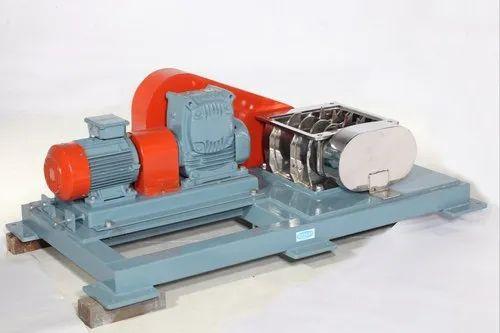

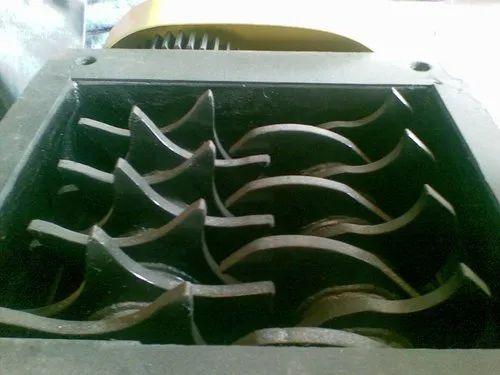

In Bulks Solids & Powder processing industry raw materials are usually big lump sizes which are difficult to process as it is. To reduce it to powder or granular particle size in the range of around 10mm, 15mm or even lesser, an equipment is a must. Our Crusher and Delumper range have been developed to address needs like this. Crusher is an equipment which crushes the big size lumps into small or desired size by using various screen sizes. They are perfectly designed to serve as pre crushers for pulverizers or as an independent crusher or other milling equipment as well. RIECO Crushers are of double roll type. The crusher consists of an outer housing in which two shafts are installed firmly supported by heavy bearings at either end. Two opposite rows of stars and prongs are mounted on sleeves keyed to gear driven shafts, which revolves towards each other. It Is the principal action between the tips of these prongs that reduce the lumps to a smaller size. Crushers are generally used for the medium soft lumps with less than 1% moisture for use of certain materials. Breaker bars may be installed under the rolls for further reduction. All units are normally equipped with adequate HP motors and suitable size gear box. The drive consists of chain & Sprocket. Mounted below the crusher jaws on each unit is a large perforated screen designed to prevent oversized material lump from passing out of the crusher. Various screen sizes are used to maintain desired output. Any crusher can be furnished with a manual re-ser friction clutch mounted on the drive shaft adjustable to wide range of torque capacities. This drive automatically disengages the roller shaft. Features: • Crusher can be installed online or offline as per process requirement • Various screen sizes are used for making small size lumps • All drive arrangements are fully covered by guards • Flaps are provided at inlet hopper to not allow material spillage outside while crushing • Sturdy base frame with support legs to withstand vibrations while crushing • Wide range of model to facilitate different materials & capacities • Safety key are provided on drive shaft for safety (during an overload issue the key will break itself and prevent major accident) Applications: • Pharmaceuticals • Chemicals • Resin • Color Pigments • Spices Specifications: Product Variants Power Range HP Intake Size (nch) Heavy Duty Crusher (HDC) 3-5 6 Extra Heavy Duty Crusher (2 HDC) 7.5-10 10 Super Heavy Duty Crusher (SHDC) 10-15 12
Capacity - 3000 kg/hr
Type Of Crushing Machines - Extra Heavy Duty Crusher
Feeding Size - 10 inch
Power - Max 10 HP
Voltage - 420V
Brand - RIECO
Model Name/Number - 2 HDC
Automation Grade - Semi-Automatic
Material - Mild Steel
