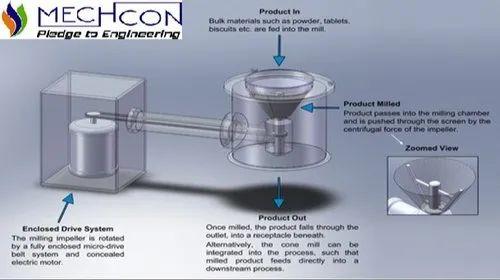

Cone Mill is used for high speed SHREDDING, SIZING, and GRINDING of power Granules, Tablets and a wide range of wet and dry materials without special attachments. As compared to the four common principles of size reduction i. e. grinding, compression, impact and shearing, which often do not produce controlled size reduction, this machine utilizes the principle of Centrifugal Shearing force. 1. Top DrivenSalient Features ·Incredible advantage for size reduction with sturdy construction for longer life. ·Simple to operate with Low Heat, Low Dust and Low Noise & Low fines percentage with consistent high quality end product ·Designed to accept all kinds of feed conditions including manual, mechanical or pressure feed. ·Stainless steel construction - ideal for Food and Pharmaceutical processing. ·Lump-free homogeneous blending to precise size requirements ·Reducing difficult, sticky, heat-sensitive agglomerates into pieces, crumbs or powders of uniform size, continuously without excessive heat build-up or screen blockage ·Provides option of inline milling under vacuum to avoid any dusting. ModelCapacity ( Kg/Hr)RPMPower (HP)MISPL- CM-20020014402MISPL- CM-25025014403MISPL- CM-30050014405MISPL- CM-30075028007.5MISPL- CM-3501000280010
Screen Diameter - 0.5 mm to 5 mm
Minimum Order Quantity - 1 Piece
Model Number - CM-200,CM-300
Design - Standard
Motor Type - TEFC
Size - 200,300
Condition - New
Automatic Grade - Semi-Automatic
Power Source - Electric
Rotor Speed - 1400 rpm
Is It Rust Proof - Non Rust Proof
Brand - Mechcon
Material - Stainless Steel
Capacity - 200 kg/hr
