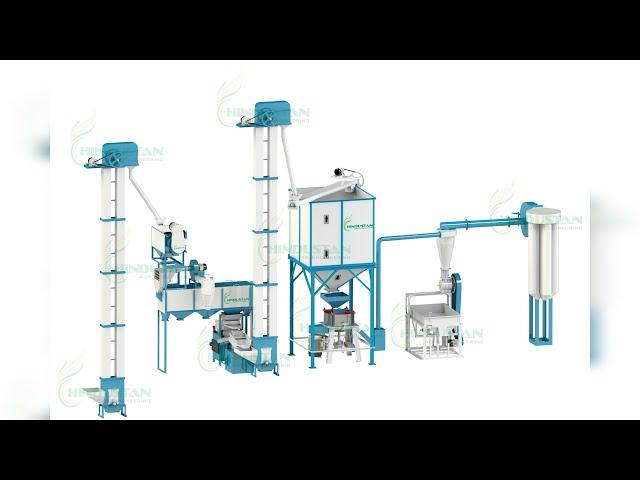

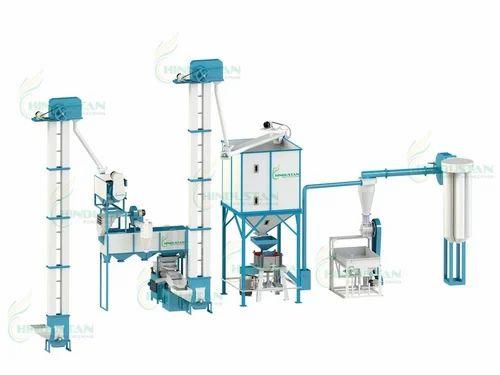

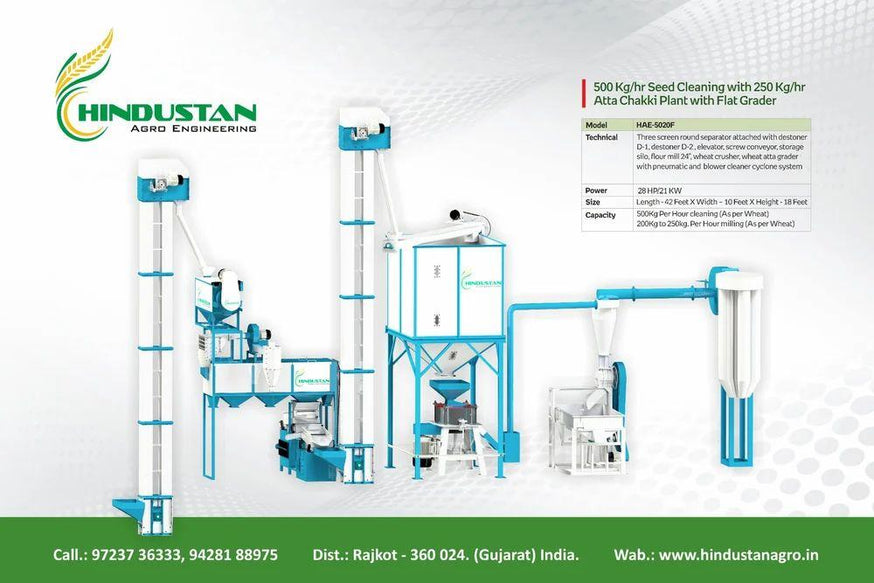

CLEANING MACHINE CAPACITY 500 KG. PER HOUR1)Elevator❖ 4 Inch X 4 Inch Bucket (PPCP Material)❖ Elevator 7 Inch Box Size, With Cotton Belt2) 3 - Screen Round Grader(Separate by Size, Separated 4 Different Gain Size)❖ With 10 No. Perfometer JALI❖ Grader Screen Size 2 Feet X 4 Feet❖ With Brush System3) Destoner No.1(Separate by Weight, Stone Removing)4) Destoner No.2(Separate by Weight, Lightweight Impurities Removing)5) Cleaner, Blower, Cyclone System(Suck Dust & Light Impurities)WHEAT CRUSHER❖ Husk RemovingEXTRA ELEVATOR❖ 15 Feet X 2200❖ Elevator Box Size: - 7” X 7”❖ Bucket Size 100mm X 100mm [PPCP Material]❖ With Hopper System❖ With Cotton Belt 8mm X 100mmVARAM CONVEYOR❖ 10 Feet X 2400STORAGE TANK❖ 7 X 4 X 4 Feet Each Tank❖ With C-Channel StructureFLOUR MILL 24 INCH CHAKKI❖ With Red Emery Stone Pair❖ With Pulley Set & V-BeltWHEAT GRADERPNUMETIC SYSTEM❖ Cyclone❖ Air Lock❖ Blower❖ PipingELECTRIC MOTOR [ CROMPTON COMPANY MOTOR]❖ (0.5+2+2+0.5+0.5+0.5+15+5+1) =27 HPINSTALLATION (T. A. D. A. AS PER EXP)All Plant Pulley Set, V-belt and Nut-Bolt are included. Seed Cleaning Machine Capacity Based on Wheat. Additional Information: • Item Code: HAE5020 • Production Capacity: 5-6 per month • Delivery Time: 15-20 days • Packaging Details: Plastic Covered Pack
Certification - ISO
Dimensions - 20 x 40 Feet
Minimum Order Quantity - 1 Piece
Voltage - 440 V
Operating Speed - 1440 RPM
Stone Size - 24 inch
Power Consumption - 27 HP
Weight - 3500-4000
Capacity - 200 kg/hr
Material of Construction - Mild Steel
Usage/Application - Commercial
After Sales Service - Yes
Country of Origin - Made in India
Operation Mode - Automatic
Electricity Connection - Three Phase
Warranty - 7 to 12 months
