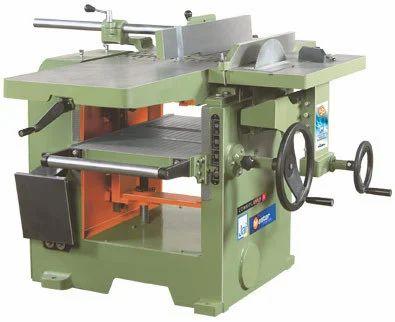

Combiplaner- S J-703
- Regular price
- Rs. 179,000.00
- Sale price
- Rs. 179,000.00
- Regular price
-
- Unit price
- per
These are preferred by wood working workshop for its enhanced utility, trusted performance and rugged durablitiy. STANDARD ACCESSORIES:- • 4/3 planer blades fitted in cutter block. • mitre gauge • motor pulley • motor fixing plate • v-belt gaurd • toolkit & m/c manual Master modelModel Combiplaner-sJ-703 mm / inchSurfacing capacity610 / 24"Max planing width610 / 24"Thicknessing capacity200 / 8"Length Of surface Table1550 / 61"Rebating Capacity12.5 / 1/2”Length Of Thickness Table915 / 36"Min. Length of workpiece for thicknessing254 / 10"Feeding Speed (feet per minute)24Cutter block diameter120 / 4.72"Cutter block speed- RPM4000Standard cutter block - code no.3B-WCircular saw table size610 x 355 / 24" x 14"Up/Down movement of Cir. saw table75 / 3"Max. circular saw diameter300 / 12"Power required - HP / RPM5 / 1440Approx. wt. of machine - kg.850
Brand - JAI
Usage/Application - WOOD WORKING
Model Name/Number - MBIPLANERJ-703
Minimum Order Quantity - 1 Piece
Table Size - 1550/61"
Power - 5/1440
Blade Length - 610/24"
Couldn't load pickup availability
Delivery
Delivery
All Over India Delivery
Dimensions
Dimensions
6*6*10 Feet
Warranty
Warranty
1 Year Complete Warranty
Share
These are preferred by wood working workshop for its enhanced utility, trusted performance and rugged durablitiy. STANDARD ACCESSORIES:- • 4/3 planer blades fitted in cutter block. • mitre gauge • motor pulley • motor fixing plate • v-belt gaurd • toolkit & m/c manual Master modelModel Combiplaner-sJ-703 mm / inchSurfacing capacity610 / 24"Max planing width610 / 24"Thicknessing capacity200 / 8"Length Of surface Table1550 / 61"Rebating Capacity12.5 / 1/2”Length Of Thickness Table915 / 36"Min. Length of workpiece for thicknessing254 / 10"Feeding Speed (feet per minute)24Cutter block diameter120 / 4.72"Cutter block speed- RPM4000Standard cutter block - code no.3B-WCircular saw table size610 x 355 / 24" x 14"Up/Down movement of Cir. saw table75 / 3"Max. circular saw diameter300 / 12"Power required - HP / RPM5 / 1440Approx. wt. of machine - kg.850
Brand - JAI
Usage/Application - WOOD WORKING
Model Name/Number - MBIPLANERJ-703
Minimum Order Quantity - 1 Piece
Table Size - 1550/61"
Power - 5/1440
Blade Length - 610/24"
