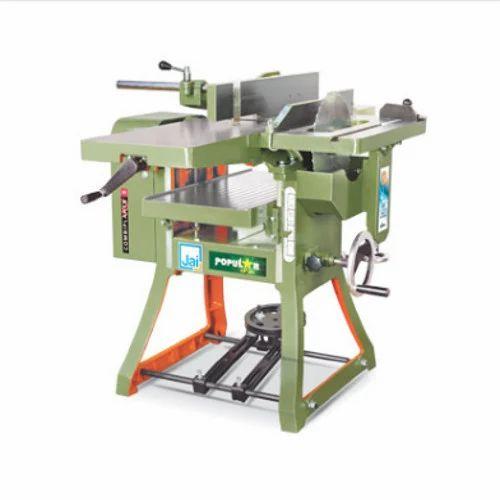

Useful multi-functionality of combiplaner, in value-for-money machines of this series. These are preferred by wood-working workshops for its enhanced utility, trusted performance and rugged durability. These m/cs are suitable for portability in a moderate budget. Standard Accessories • 2/3 planer blades fitted in cutter block • Mitre gauge • Motor pulley • Motor fixing rail • Toolkit & m/c manual. Other Product DetailsModelJ-302J-303 Lmm / inchmm/inchSurfacing capacity254 / 10"330 / 13"Max planing width254 / 10"330 / 13"Thicknessing capacity177 / 7"177 / 7"Length Of surface Table1140 / 45"1550 / 61"Rebating Capacity12.5 / 1/2"12.5 / 1/2"Length Of Thickness Table610 / 24"660 / 26"Min. Length of workpiece for thicknessing254 / 10"254 / 10"Feeding Speed (feet per minute)2424Cutter block diameter95 / 3.75"95 / 3.75"Cutter block speed- RPM40004000Standard cutter block - code no.2B3B-WCircular saw table size560 x 280 / 22" x 11"560 x 280 / 22" x 11"Up/Down movement of Cir. saw table75 / 3"75 / 3"Max. circular saw diameter300 / 12"300 / 12"Power required - HP / RPM2 / 14403 / 1440Approx. wt. of machine - kg.280350
Usage/Application - Wood
Cutter Block Diameter - 95 mm / 3.75 inch
Minimum Order Quantity - 1 Piece
Length Of Surface Table - 1220 mm / 48 inch
Power - 3 hp
Feeding Speed - 24 (feet per minute)
Automation Grade - Semi-automatic
Rebating Capacity - 12.5 mm / 1/2 inch
Thicknessing Capacity - 177 mm / 7 inch
Weight - 320 Kg
Standard Cutter Block Code No - 3B-W
Max Circular Saw Diameter - 300 mm / 12 inch
Min Length of Work Piece for Thicknessing - 254 mm / 10 inch
Cutter Block Speed - 4000 rpm
Circular Saw Table Size - 560 x 280 mm / 22 x 11 inch
Max Planing width - 330 mm / 13 inch
Surface Capacity - 330/13"
Power Required - 3 HP / 1440 rpm
Length Of Thickness Table - 660 mm / 26 inch
Up Down Movement of Circular Saw Table - 75 mm / 3 inch
