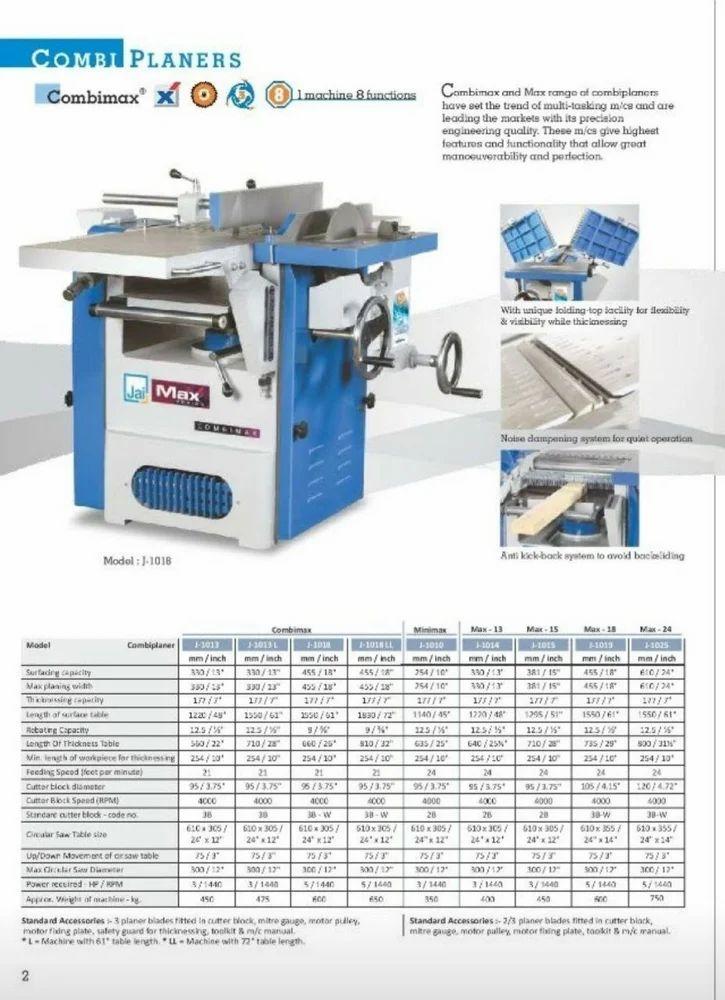

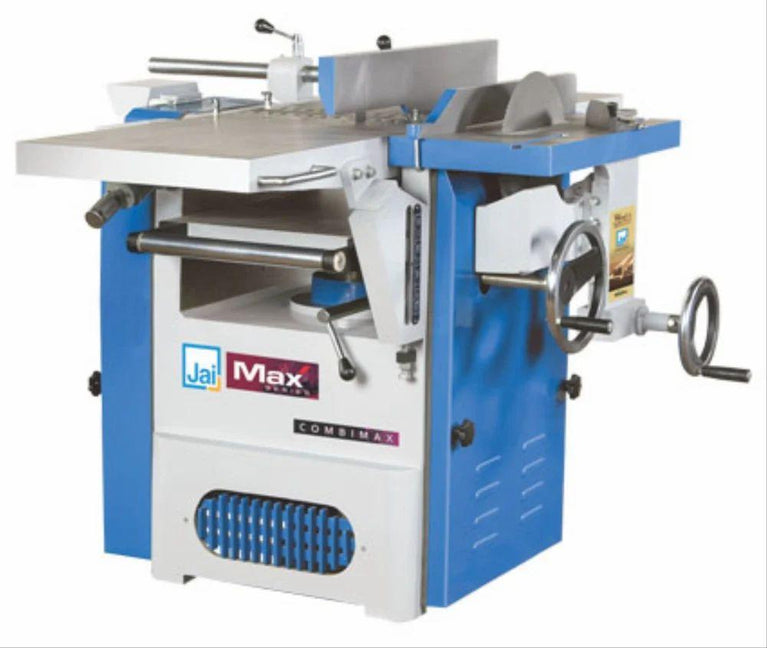

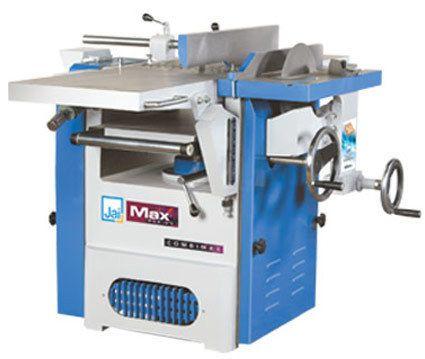

Combiplaners are combined Surfacer & Thicknesser m/cs. Combimax has the highest features in this range. Combining precision and multi functionality in a machine that can work wonders for a professional set-up. STANDARD ACCESSORIES:-3 planer blades fitted in cutter block. mitre gaugemotor pulleymotor fixing platesafety gaurd for thicknessingtoolkit & m/c manualOTHER PRODUCT DETAIL:-COMBIMAX Model CombiplanerJ-1013Lmm / inch Surfacing capacity 330 / 13" Max planing width 330 / 13" Thicknessing capacity 177 / 7" Length Of surface Table 1550 / 61" Rebating Capacity 12.5 / ½" Length Of Thickness Table 710 / 281/2" Min. Length of workpiece for thicknessing 254 / 10" Feeding Speed (feet per minute) 21 Cutter block diameter 95 / 3.75" Cutter block speed- RPM 4000 Standard cutter block - code no. 3B Circular saw table size 610 x 305 / 24" x 12" Up/Down movement of Cir. saw table 75 / 3" Max. circular saw diameter 300 / 12" Power required - HP / RPM 3 / 1440 Approx. wt. of machine - kg. 475 Additional Information: • Item Code: COMBIMAZJ-1025 • Production Capacity: READILY AVAILABLE • Delivery Time: 15 DAYS • Packaging Details: WELL PACKED POLYTHENE PACKING
Material - IRON CASTING
Brand - JAI
Usage/Application - WOOD WORKING
Country of Origin - Made in India
Length of surface table - 1550 / 61"
Cutter block speed(RPM) - 4000
Thickness Capacity - 177 / 7"
Up/down movement of cir.saw table - 75 / 3"
Model Name/Number - COMBIMAXJ-1013L
Power Required - HP / RPM - 3 / 1440
Feeding Speed (feet per min.) - 21
Power - 3/1440
Automation Grade - Semi-automatic
Rebating Capacity - 12.5 / 1/2"
Circular saw table size - 610 * 305 / 24" * 12"
Standard cutter block-code no. - 2B
Max circular saw diameter - 300 / 12"
Min.Length of workpiece for thicknessing - 710 / 28"
Approx. weight-kg - 475
Max Planing width - 330 / 13"
Cutter block diameter - 95 / 3.75"
Surfacing Capacity - 330 / 13"
