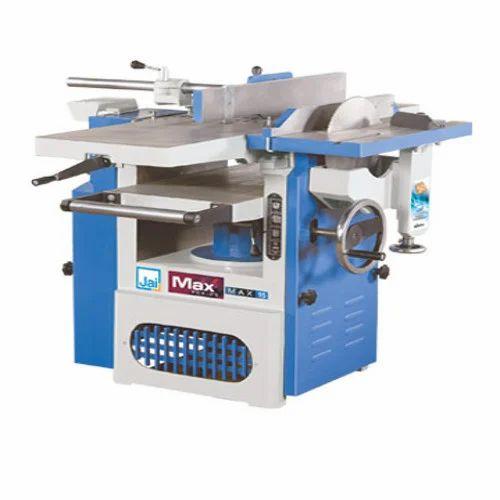

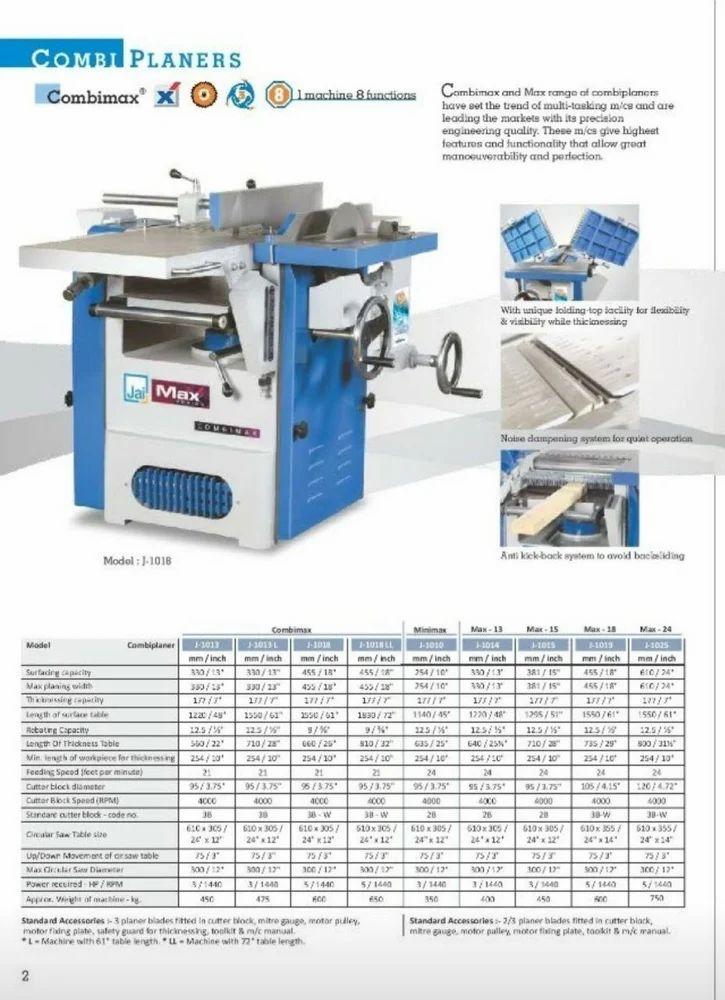

Combi Planers Max15 are combined Surfacer & Thicknesser m/cs. These are same high-value machines like Combimax, but with the fixed top. Combining precision and multi-functionality in a machine that can work wonders for a professional set-up. Standard Accessories • 3 planer blades fitted in cutter block • Mitre gauge • Motor pulley • Motor fixing plate • Toolkit & m/c manual. Other Product Details Model Max-13 J-1014 mm / inch Surfacing capacity 330 / 13" Max planing width 330 / 13" Thicknessing capacity 177 / 7" Length Of surface Table 1220 / 48" Rebating Capacity 12.5 / 1/2" Length Of Thickness Table 640 / 251/4" Min. Length of workpiece for thicknessing 254 / 10" Feeding Speed (feet per minute) 24 Cutter block diameter 95 / 3.75" Cutter block speed- RPM 4000 Standard cutter block - code no. 2B Circular saw table size 610 x 305 / 24" x 12" Up/Down movement of Cir. saw table 75 / 3" Max. circular saw diameter 300 / 12" Power required - HP / RPM 3 / 1440 Approx. wt. of machine - kg. 400
Length Of surface Table - 1295 mm / 51 inch
Cutter Block Diameter - 95 mm / 3.75 inch
Minimum Order Quantity - 1 Piece
Feeding Speed - 24 (feet per minute)
Rebating Capacity - 12.5 mm / 1/2 inch
Model No - J-1015
Thicknessing Capacity - 177 mm / 7 inch
Weight - 450 Kg
Standard Cutter Block Code No - 2B
Max Circular Saw Diameter - 300 mm / 12 inch
Min Length of Work Piece for Thicknessing - 254 mm / 10 inch
Cutter Block Speed - 4000 rpm
Circular Saw Table Size - 610 x 305 mm / 24 x 12 inch
Max Planing width - 381 mm / 15 inch
Power Required - 3 HP / 1440 rpm
Length Of Thickness Table - 710 mm / 28 inch
Up Down Movement of Circular Saw Table - 75 mm / 3 inch
