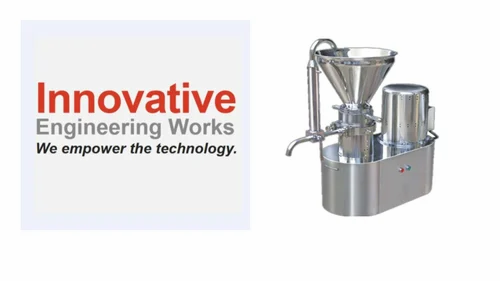

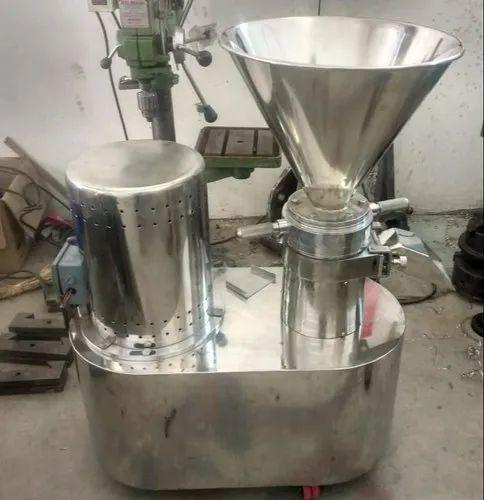

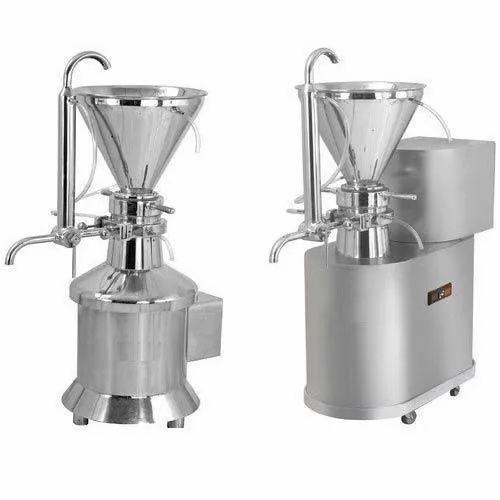

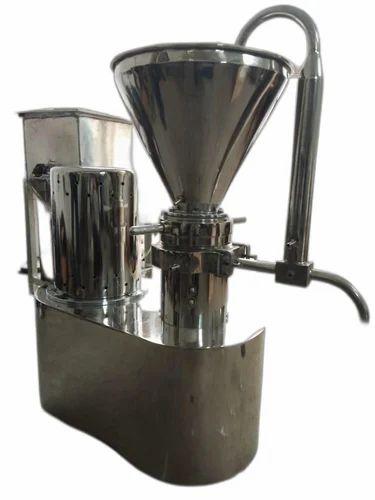

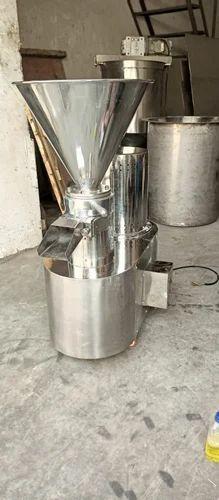

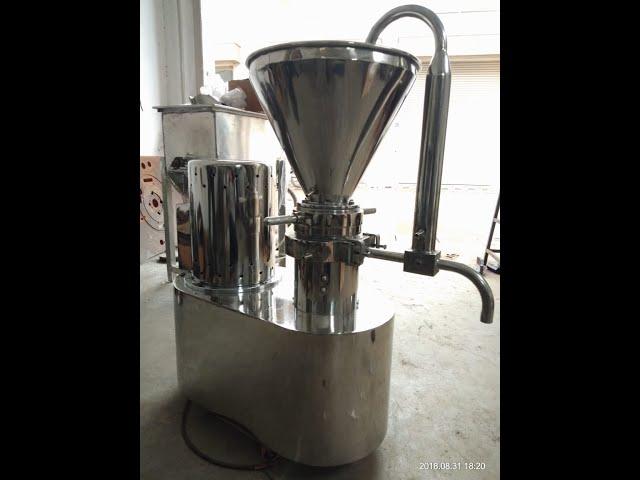

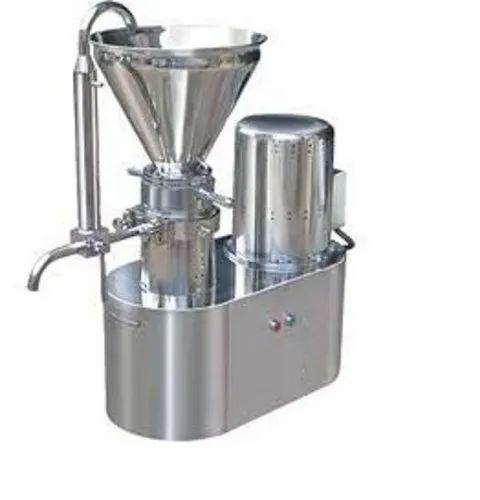

To cater the variegated needs of our esteemed customers, we are highly engaged in offering a wide array of Colloid Mill Machine. Colloid Mill is used for Homogenizing, De-agglomeration, Mixing, Reduce Particle Size, Emulsifying, Dispersing, Dissolving, Wet milling, Micro-comminution and reduce viscosity of product. By using Innovative Colloid Mill, you can reduce particle size up to 5 Micron. Material is processed between High Speed Rotor and Stator in Colloid Mill. Teeth of Rotor and Stator are specially designed as per product. We can adjust grinding gap between stator and rotor using Adjusting Ring. We built machine as per FDA & cGMP Guidelines and Engineering Standard. Features:· Design is as per cGMP guidelines.· All contact parts Material is SS 316.· Non-Contact parts Material is SS 304 or MS Cladded with SS 304.· Adjustment of Grinding Gap is easy by using Gun Metal adjusting ring.· Oil seals are used to prevent leakage of liquid from processing chamber.· Machine is easy to operate. Skilled worker not required.· Three way cock body assembly to rotate material second or more time to improve result of product.· Pharmaceutical Grade Silicon gasket are used to prevent leakage from machine.· Discharge spout is provided for high viscous material.· Best quality Bearing, Motor and other bought out item are used to build High performance machine.· Less Noise and Vibration Safety Features:· Overload pressure release starter switch for motor· Emergency Stop Button Optional Features: · Flame Proof Motor and Electrical· Water Jacketed Cooling System· Mechanical Seal· Variable Frequency DriveLab Colloid Mill - Small Scale MachineIndustrial Colloid Mill - Medium Scale MachineInline Colloid Mill - Large Scale MachineHigh Shear Mixer Colloid Mill-Large Scale MachineWe supply colloid mill with best price in India. Machine ModelColloid MillOutput12 to 100 Kg/HourAll Contact PartsStainless Steel - 316 / 316 L. (Optional)All Non-Contact PartsStainless Steet. li-s104. (Optional - M. S.)Particle size reduction5 to 10 MicronsHopper capacity15 -18 LittersMotor5HP / 2800 RPM / 3 PhHeight1100 mmWheels & BasePU-Castor Wheel or Anti Vibration Pad
Size/Dimension - 750X450X1200 mm
Brand - Innovative
Voltage - 415 V
Capacity - 100 Litre Per Hour
Model Number/Name - ICMM001
Material - Stainless Steel
Phase - 3 Phase
Automation Grade - Automatic
Frequency - 50 Hz
Motor Speed - 2800 RPM
Minimum Order Quantity - 1 Piece
