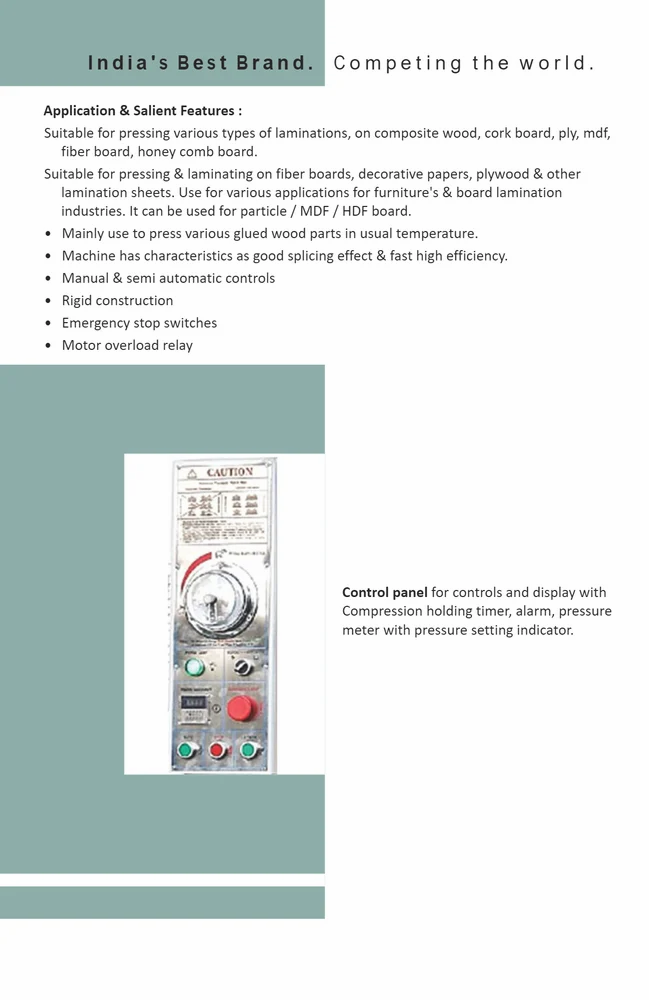

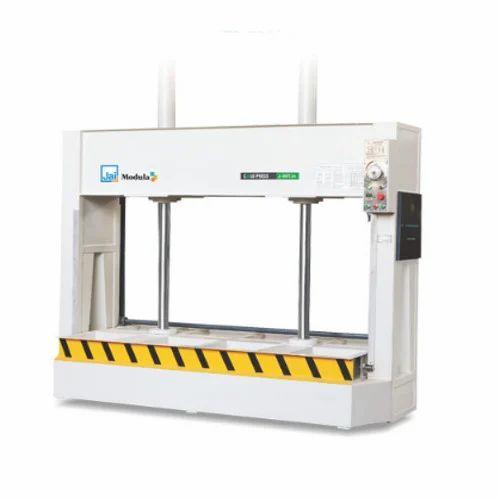

Salient Features: Machine suitable for pressing various types of lamination on MDF, particle, plyboards, conposite wood cork boards, fiber board, honey comb board for furniture industries. Other Details: Manual & semi-automatic controls, Emergency stop switches, Motor overload relay. Timer control, can set pressing time according to production technology. Heavy duty rigid construction to take care of pressing distrotion with specially desighned platen and base to have uniform pressure system on workpiece. Additional Information: • Production Capacity: READILY AVILABLE • Delivery Time: 10 DAYS • Packaging Details: WELL PACKED POLYTHENE PACKING

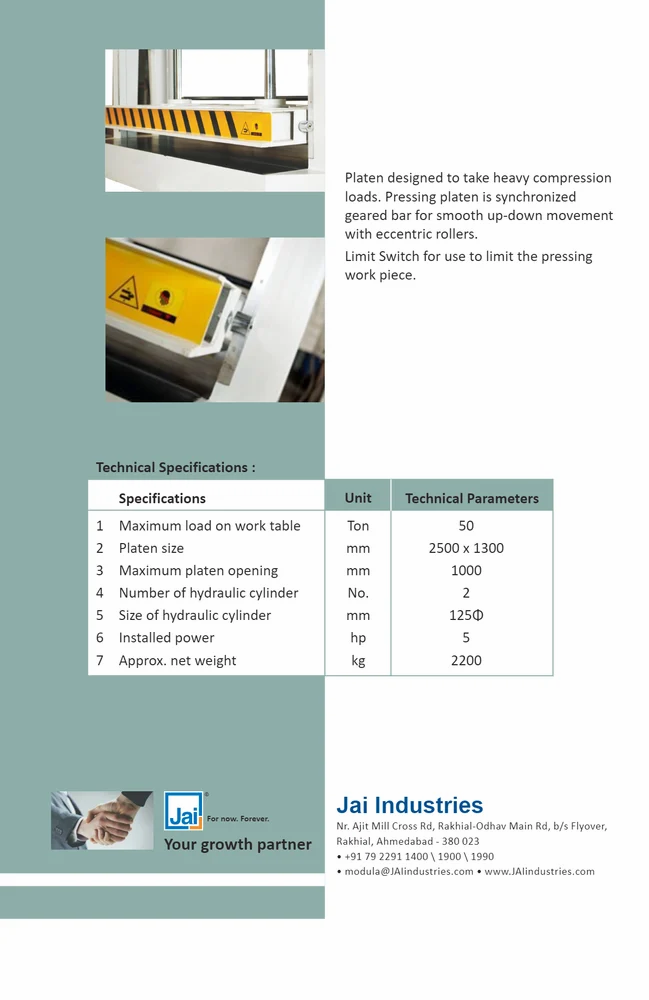

Max Load On Work Table - 50 Ton
Bore Size of Hydraulic Cylinders - 125 mm
Model Name/Number - COLD PRESS J-50 T
Minimum Order Quantity - 1 Piece
Platen Size - 2500 x 1300 mm
Installed Power - 5 HP
Max Platen Opening - 1000 mm
Model No - J-50T
No of Hydraulic Cylinders - 2 nos
