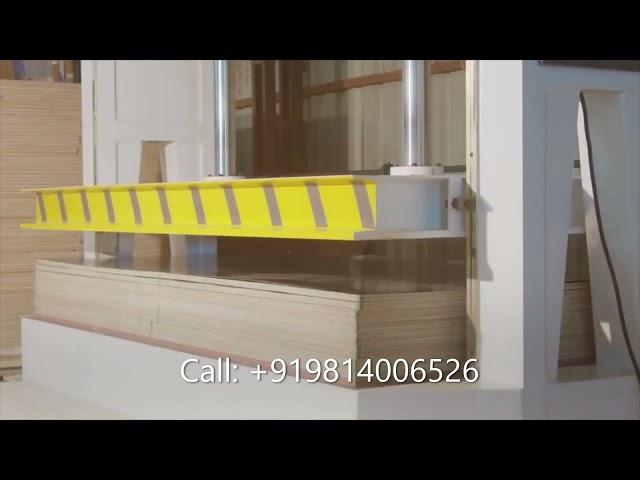

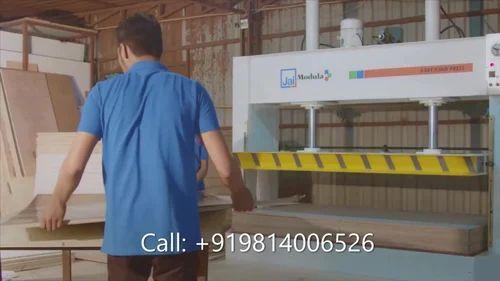

Salient Features: Machine suitable for pressing various types of lamination on MDF, particle, plyboards, conposite wood cork boards, fiber board, honey comb board for furniture industries. Other Details: Manual & semi-automatic controls, Emergency stop switches, Motor overload relay. Timer control, can set pressing time according to production technology. Heavy duty rigid construction to take care of pressing distrotion with specially desighned platen and base to have uniform pressure system on workpiece. Cold Press J-100T (4 cylinders) with trolley also available. Additional Information: • Production Capacity: READILY AVAILABLE • Delivery Time: 10 DAYS • Packaging Details: WELL PACKED POLYTHENE PACKING
Max Load On Work Table - 100 Ton
Bore Size of Hydraulic Cylinders - 125 mm

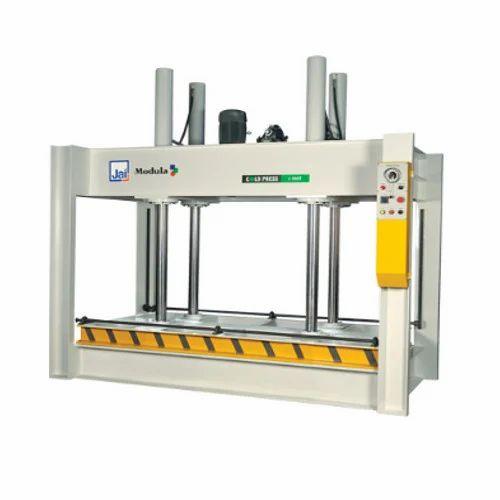

Model Name/Number - COLD PRESS J-100T
Minimum Order Quantity - 1 Piece
Platen Size - 2500 x 1300 mm
Installed Power - 5 HP
Max Platen Opening - 1000 mm
Model No - J-100T
No of Hydraulic Cylinders - 4 nos
