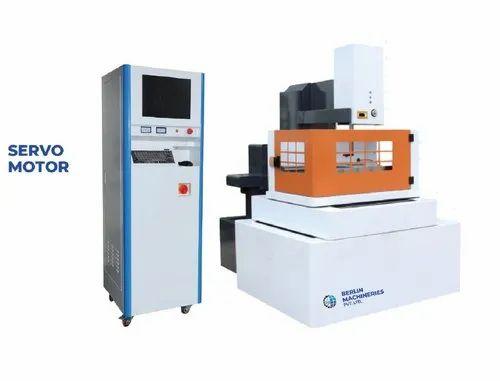

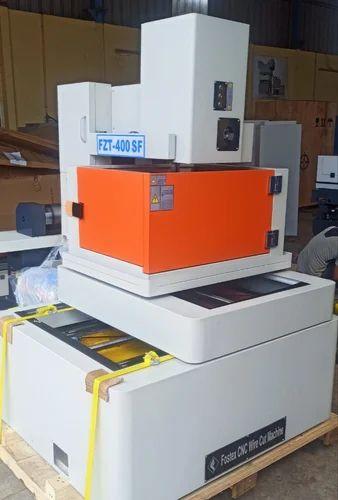

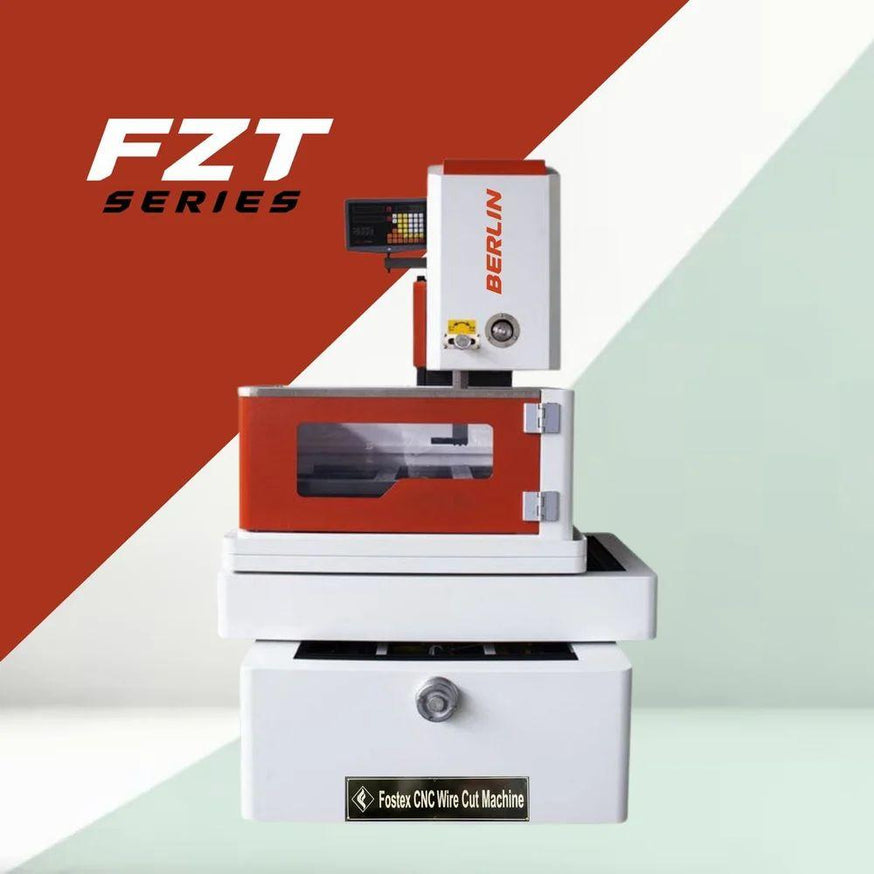

NAME: FZT SERIES FEATURES • Robust frame with ‘C’’ mast. • Long travel rail installed in the bottom, which improves the stability for heavy job piece. • With height adjustable diamond guider. • Four axes independent (X/Y/U/V) work, with Taiwan linear and ball screw. Special Tensioning mechanism for molybdenum wire, keep stable cutting. Stepper motor is standard / Servo motor is optional. • Tolerance can be mentioned in +/-0.006 mm, Roughness Ra 0.8 • Full enclosed cover, Similar to European machine. • New generation control cabinet, high efficient.
Model Name/Number - FZT320SF
Power Supply - 415 V / 50 Hz,2.5 kW
Wire Speed - 12,9,7,5,2 m/sec
Table Size - 700x500 mm
Weight - 1300 kg
Max Cutting Angle - +/-3 deg/100 mm
Brand - Fostex
Table Travel - 400x320 mm
Molybdenum Wire Dia - 0.22 mm
Machine Type - WIRE CUT EDM MACHINE(SERVO)
Max Cut Thickness - 300 mm
Automatic Grade - Automatic
