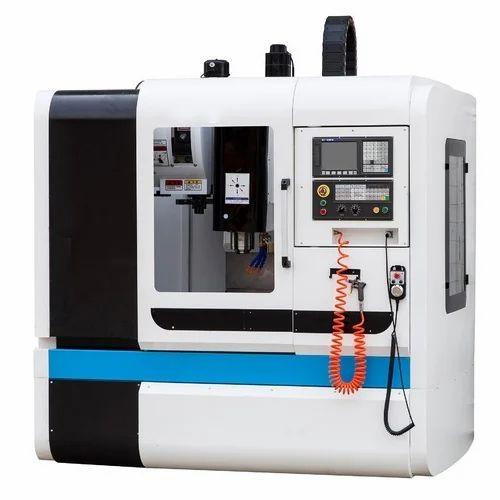

Specifications: • Having table size: 920 x 320mm, table travel (x/y/z) 600 x 350 x 500mm, x/y/z-axis linear • Guide way, disc type 16 pcs. Atc cnc controller –gsk218mc-h with standard accessoriesTechnical specifications: • Traverse: X/y/z – axis movement: 600/350/500mm • Guideway ball screw X/y/z – axis guide way: linear way • Axis drive Feed rate: 2.5 – 10000mm/min. • Rapid traverse x/y/z-axis: 36/36/24m/min. • Spindle • Taper: bt-40 • Type of tool changer: disc type • Number of tools: 16 nos. • Overall dimensions (l x w x h) : 2100 x 1970 x 2170mm • Cnc controller: gskStandard Features: • Auto manual coolant system with chip tray, centralized programmable lubrication, laser calibrated axis, pneumatic tool clamping unclamping, telescopic cover bellow on z-axis, serial interface rs232 port, machine work light, instruction operating manual, maintenance tool kit Additional Information: • Item Code: xh7132a
Speed - 40-8000 rpm
Model - XH7132A
Maximum Load on Table - 300 kg
Distance from Spindle to Column - 395 mm
Motor Power - 5.5/7.5 kW
Distance from Spindle to Table - 100-600 mm
Table Dimension - 920 x 320 mm L x W
Machine Weight - 3200 kg
