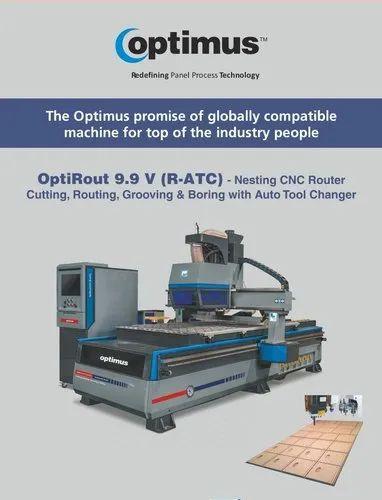

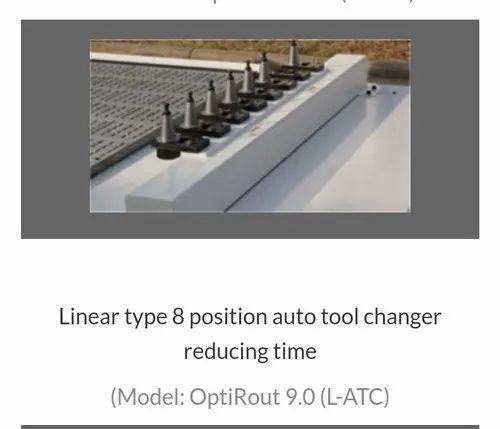

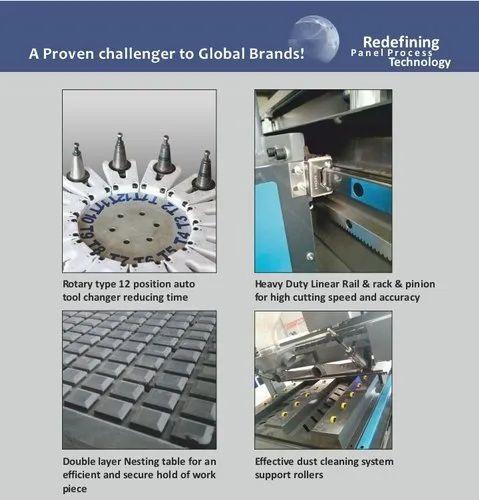

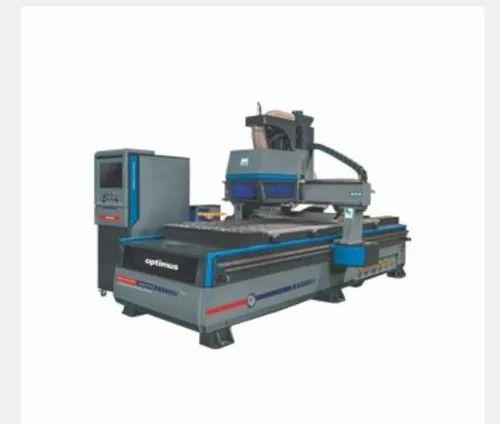

Home Optimus Nesting CNC Router OptiRout 9.9 VDownload CatalogeRedefining Panel Processing TechnologyModel: OptiRout 9.9 V (R-ATC) - Nesting CNC Router Cutting, Routing, Grooving & Boring with Auto Tool ChangerModel OptiRout 9.0 (L-ATC) CNC Router without boring also availableSalient Features:-Nesting technology with heavy duty gantry structure ensures efficient cutting, routing, grooving & boring in one operation with panel optimization. High performance machine with High feeding speed gives more production. Equipped with high quality and accurate Weihong control system. Rotary type 12 position auto tool changer reducing time.(Model: OptiRout 9.9V (R-ATC)Linear type 8 position auto tool changerreducing time.(Model: OptiRout 9.0 (L-ATC)Stronger and large helical rack/pinion and high precision linear rails. Save labour cost as customer requires manpower only for 1 machine. All electronic & pneumatic parts are from well-known international brands. Ensuring longer machine life, safe operation, reduced unscheduled downtime and more economical operation costs. Low maintenance m/c, easy available cost effective spares, best service support. Additional Information: • Production Capacity: Readily Available • Delivery Time: 10 days • Packaging Details: Well packed with polythene packing
Model Name/Number - CNC ROUTING & BORING CENTRE OPTIEDGE 9.9 V
X - Axis Travel - 1300
Command code - G code
Compatible software - Art cam,Alfa cam
Y - Axis Travel - 2500
Brand - JAI
Resolutions - 0.0025 mm
Boring head power - 1.5 kw

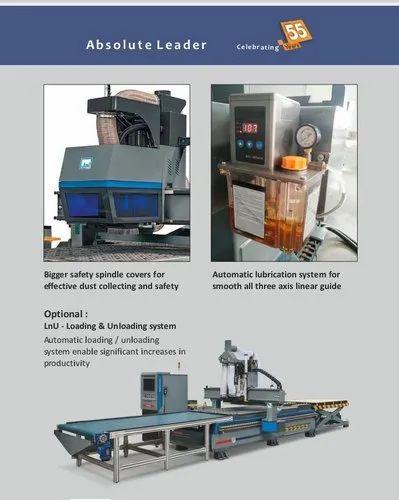

Oil lubrication system - Standard
Country of Origin - Made in India
Z - Axis Travel - 200 MM
Working voltage - AC 380 v / 50 hz,3 phase
X-Y movement - Rack & pinion gear drive/Taiwan
Collet type & size - ER32 (6,8 mm)

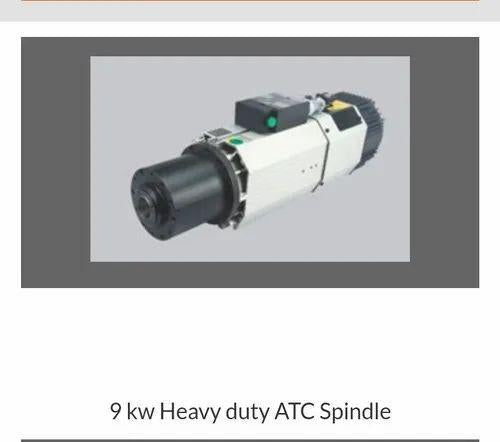

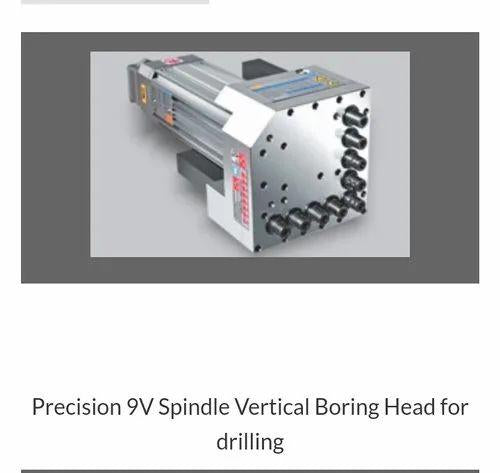

Spindle & boring head - 9 kw,Air cooled spindle/18000 rpm,9v Boring head (5+4)
Controller & drive motors - WEIHONG with servo motors & shimpo reducer
Vacumm table & pump - Standard with 7.5 kw air type pump
Minimum Order Quantity - 1 Piece
X-Y-Z Axis working area - 1300*2500*200 mm
Z movement - Heavy ball screw / TBI
Guide - Linear guide-30mm-Taiwan for Y Axis, Linear guide 25mm-Taiwan for X and Z Axis
Spindle Speed - 9 KW,ATC AIR COOLED SPINDLE/18000 RPM
Tool magazine type - Rotary type with 12 tools holder
