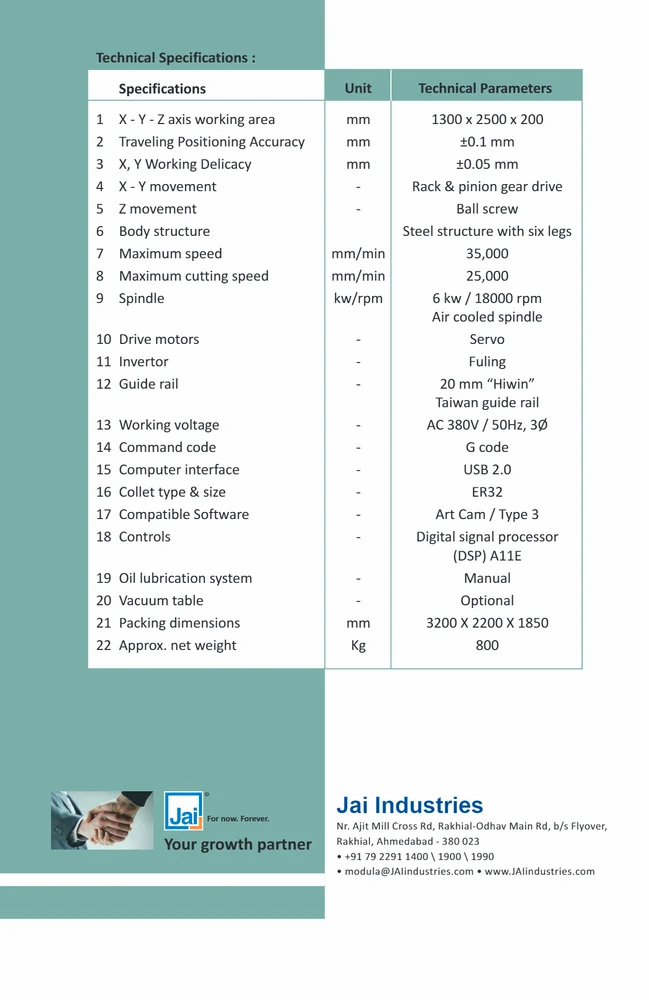

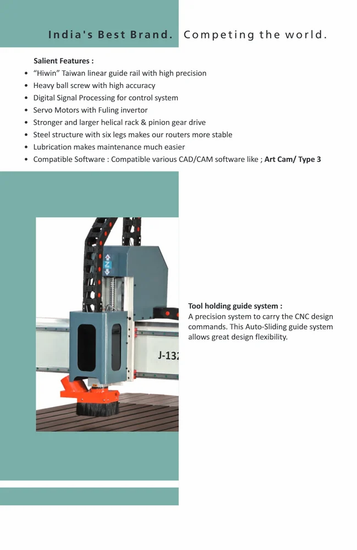

Salient Features:- • "Hiwin" Taiwan linear guide rail with high precision • Heavy ball screw with high accuracy • Digital Signal Processing for control system • Stepper Motors with Invertor • Stronger and larger helical rack & pinion gear drive • Steel structure with six legs makes our routers more stable • Lubrication makes maintenance much easier • Compatible Software: Compatible various CAD/CAM software like ; Art Cam/ Type 3
Machine Weight - 800
Working Area (feet x feet) - 4 x 4
X-Y Movement - Rack & pinion gear drive
Body structure - Steel structure with six legs
Job Material - Wood
Machine Condition - New

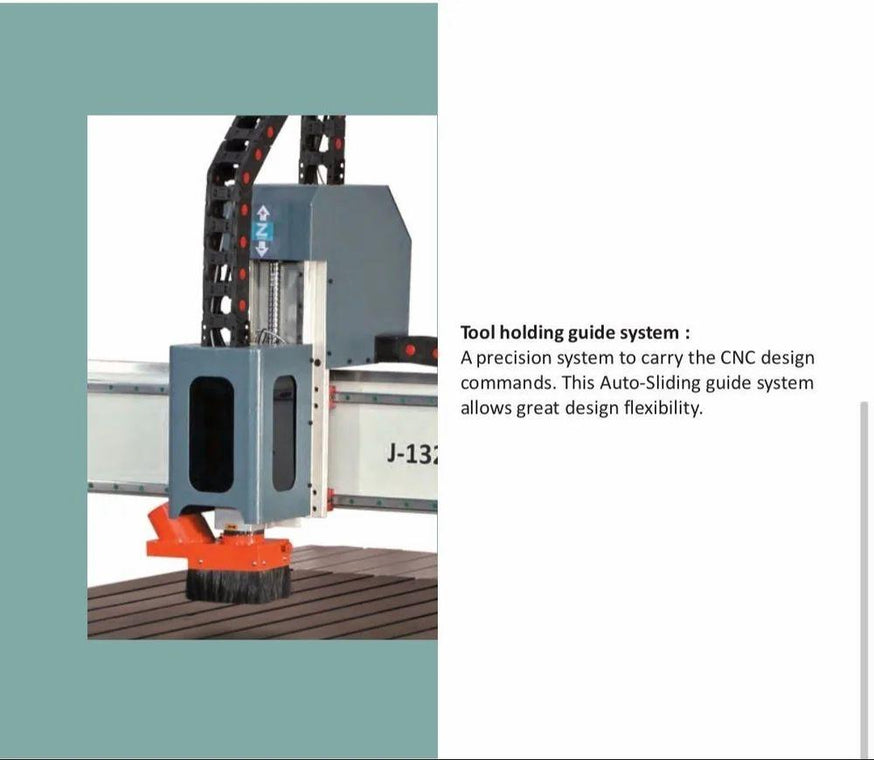

Z Movement - Ball Screw Transmission
Command Code - G Code
Drive motors - STEPPER
Driven Motor - Servo Motor
Machine Type - 3 Axis
Oil lubrication system - Manual
Country of Origin - Made in India
Machine Dimension - 3200 x 3500 x 1800
X - Y working delicacy - +-0.05

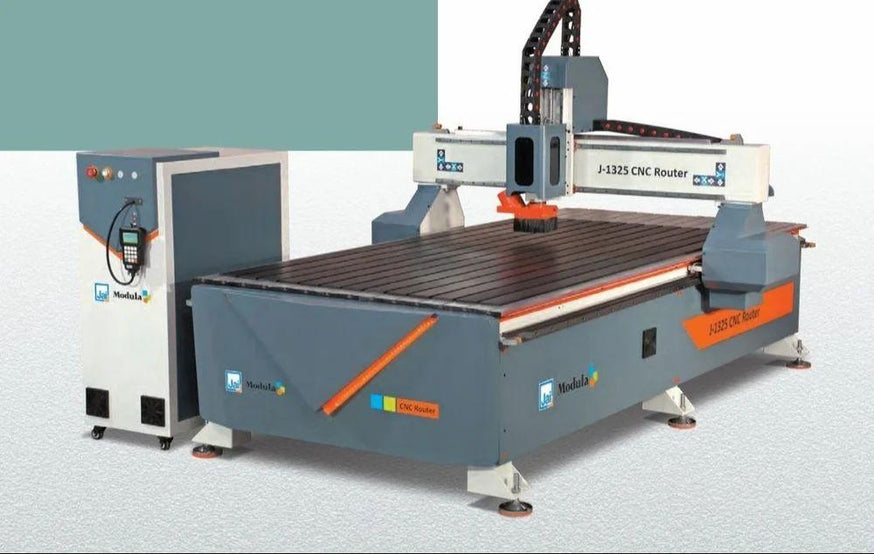

Model - J-1325+A 6KW
XY Axis Working Area - 1300 x 2500 mm
Total Power - 9
Working voltage - AC 380V / 50Hz
Maximum Cutting Speed - 25000
Guide rail - "Hiwin" Taiwan heavy duty high precision linear guide rail
Computer interface - USB 2.0

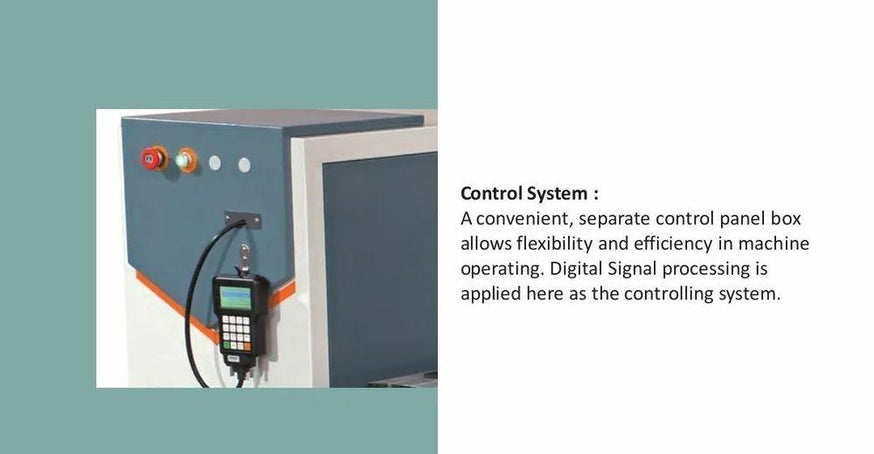

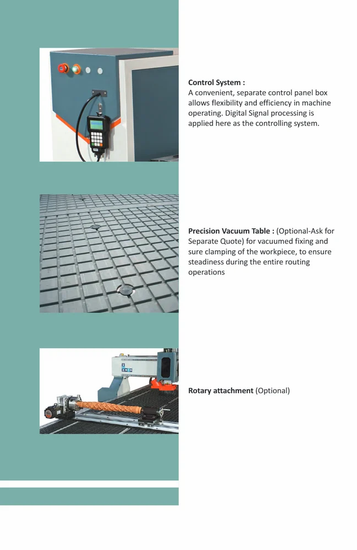

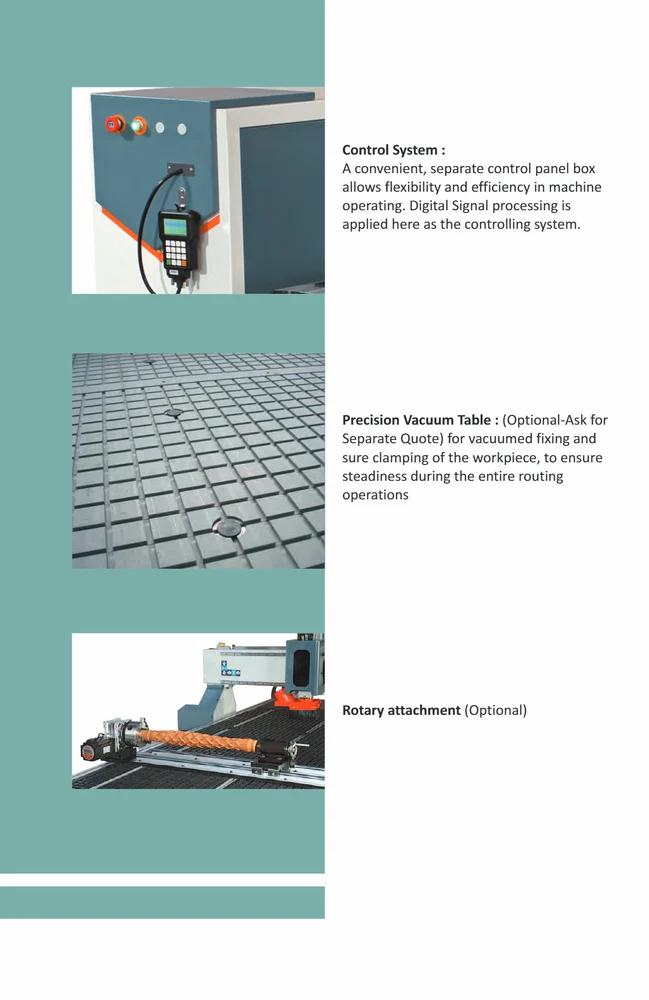

Controls - Digital signal processor (DSP) A11E
Minimum Order Quantity - 1 Piece
Spindle Power - 3.5 kW
Spindle Speed - 3.5 kw / 18000 rpm Air cooled spindle
Invertor - 3.7
Traveling positioning accuracy - +-0.1
Spindle Head Type - Single Spindle
