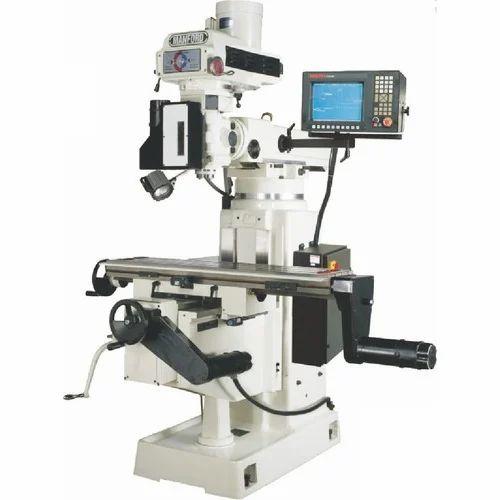

We are offering CNC Milling Machine. We offer turret milling machines at reasonable rates for our esteemed customers. Features: • Tough construction • Longer operational life • Speedy operation Specifications: ModelUnitFCV-400FCV-520X Axismm870870Y Axismm390410Z Axismm390450Table-T SlotsT SlotsRam Travelmm560560Quill Travelmm127127Size of T Slotsmm3-163-16Size LxWmm254x1270305x1370Max Loadkg200290Taper#R8/NT30NT40Speed of SpindleRPM16speed 80-544016Sppds 80-3600Spindle Travelmm127127Max Rotating angle of Spindlemm+45Left/right45Max distance between table and spindle endmm0-4500-450Power of motorkW2.23.75Max torque of X/Y axes servo motorNM66Table Feedmm/min5 – 20005 – 2000Lubrication-Auto-Overall Heightmm20112262Overall Depthmm20872120Overall Widthmm18401840Net Weightkgs13001500
Z Axis - 450 mm
Size of T Slots - 3-16 mm
Model No - FCV-520
Overall Depth - 2120 mm
Net Weight - 1500 kg
Table - T Slots
Brand - Fostex
X Axis - 870 mm
Ram Travel - 560 mm
Max Rotating angle of Spindle - Left/Right 45 degree
Max Load - 290 kg
Size LxW - 305x1370 mm
Taper - NT40
Speed of Spindle - 16 Speeds 80-3600 rpm
Max torque of XY axes servo motor - 6 Nm
Y Axis - 410 mm
Spindle Travel - 127 mm
Max distance between table and spindle end - 0-450 mm
Overall Height - 2262 mm
Overall Width - 1840 mm
Quill Travel - 127 mm
Power of motor - 3.75 kW
Table Feed - 5 - 2000 mm/min
