SPECIFICATIONS Dimension And Pressure Rating Chart Of CPVC PipeNominal Pipe SizeOuter Diameter (mm)SDR 11SDR 13.5Wall Thickness (mm)ToleranceToleranceWorking Pressure atWall Thickness (mm)ToleranceToleranceWorking Pressure at23°c82°c23°c82°cInchMMAverageToleranceMin. ToleranceKg/cm2Min. ToleranceKg/CQ20.50"150.625±0.0030.068+0.02028.17.00.055+0.02022.65.6(15.90)(±0.08)(1.73)(+0.51)(1.40)(+0.51)0.75"200.875±0.0030.080+0.02028.17.00.065+0.02022.65.6(22.20)(±0.08)(2.03)(+0.51)(1.65)(+0.51)1.00"251.125±0.0030.102+0.02028.17.00.083+0.02022.65.6(28.60)(±0.08)(2.59)(+0.51)(2.12)(+0.51)1.25"321.375±0.0030.125+0.02028.17.00.102+0.02022.65.6(34.90)(±0.08)(3.18)(+0.51)(2.59)(+0.51)1.50"401.625±0.0040.148+0.02028.17.00.120+0.02022.65.6(41.30)(±0.010)(3.76)(+0.51)(3.06)(+0.51)2.00"502.125±0.0040.192+0.02328.17.00.157+0.02322.65.6(54)(±0.010)(4.90)(+0.58)(4.00)(+0.58)
Head Code - Round
Nominal Size - 1'',1.50'',2'',1/2'',3/4''
Material - CPVC
Single Piece Length - 3 meter,6 meter etc

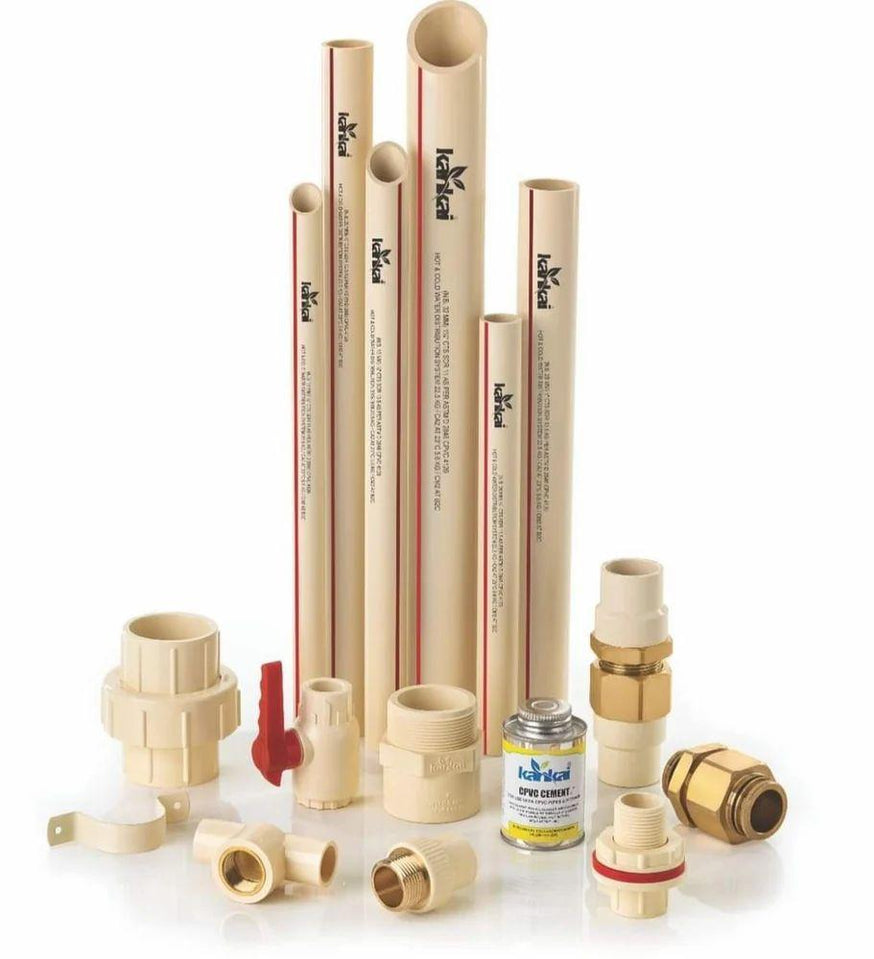

Brand - Kankai
Application - Agriculture Pipes
