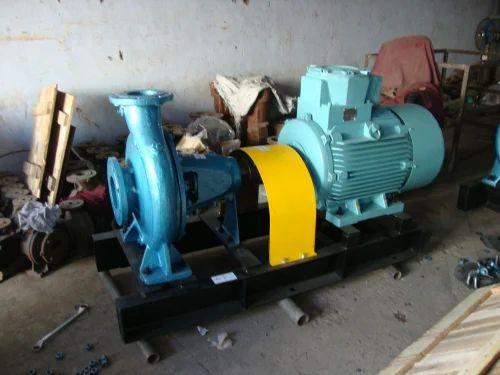

Manufacturer & Exporter of Chemical Process Pumps. Our product range also comprises of Centrifugal Pump and Sanitary Pump. Features: • More than 3 mm corrosion allowance (Cast Iron) for extended use on corrosive applications. • Back pull out construction allows rotating assembly to be withdrawn without disturbing the suction and delivery connections. • One piece self vented foot mounted, center suction volute casing, single stage, closed / semi open dynamically balanced Impeller. • Flange drilling standards as per DIN 24255 / ISO 2858 or as per Customer’s Requirement. • Designed for 16 bar working pressure with optional casing for a working pressure of up to 20 bar. • A robust and solid construction that guarantees long life even under high suction pressure conditions. • Heavy –Duty, Deep- Grooved bearings with Minimum 50,000 hours operating life under normal condition. (Grease lubricated, Oil lubrication available on request) • Heavy –Duty, Stiff solid shaft design with low L3/D4 ratio ensures less than 0.05 mm shaft deflection at the seal face in all operating condition. This extends the seal life. • Seal housing is constructed to accommodate different seal / gland designs, so as to meet the severe heavy-duty requirements. (Standard is gland packing, seal version on special request) • Excellent parts interchangeability reduces inventory levels for spare parts to a minimum. • Special design for high temperature thermic fluid available on request. • Motor or Engine driven sets. • Special Monoblock versions available on request. Specifications: • Material of construction: Cast Iron Construction with En-8 Shaft, SS-410 Sleeve, Gland Packing and special material like WCB, CF-8 , CF-8M, Alloy 20 , SS-304 , SS-316 Fabricated etc on requestApplications: • For pumping Clear / Turbid water / Chemicals & Volatile Liquids. • Air conditional plants, power station, Mine Drainage, • Sprinkle systems fire fighting, Booster service, Oils Brine.
Color - Grey
Usage - Industrial
Usage/Application - Industrial
I Deal In - New Only
Brand - MALHAR
Country of Origin - Made in India
