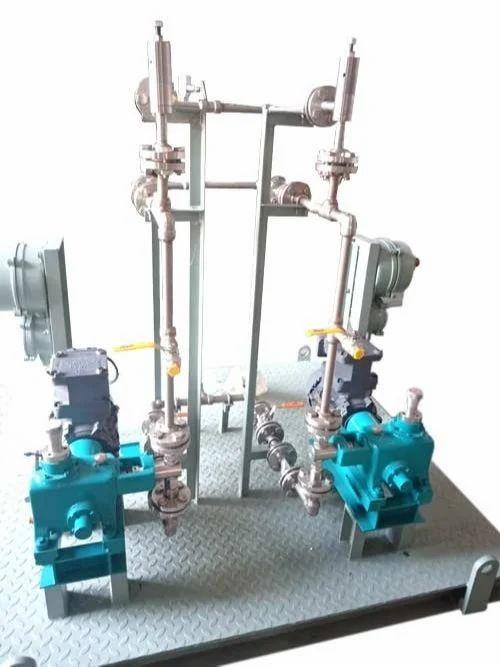

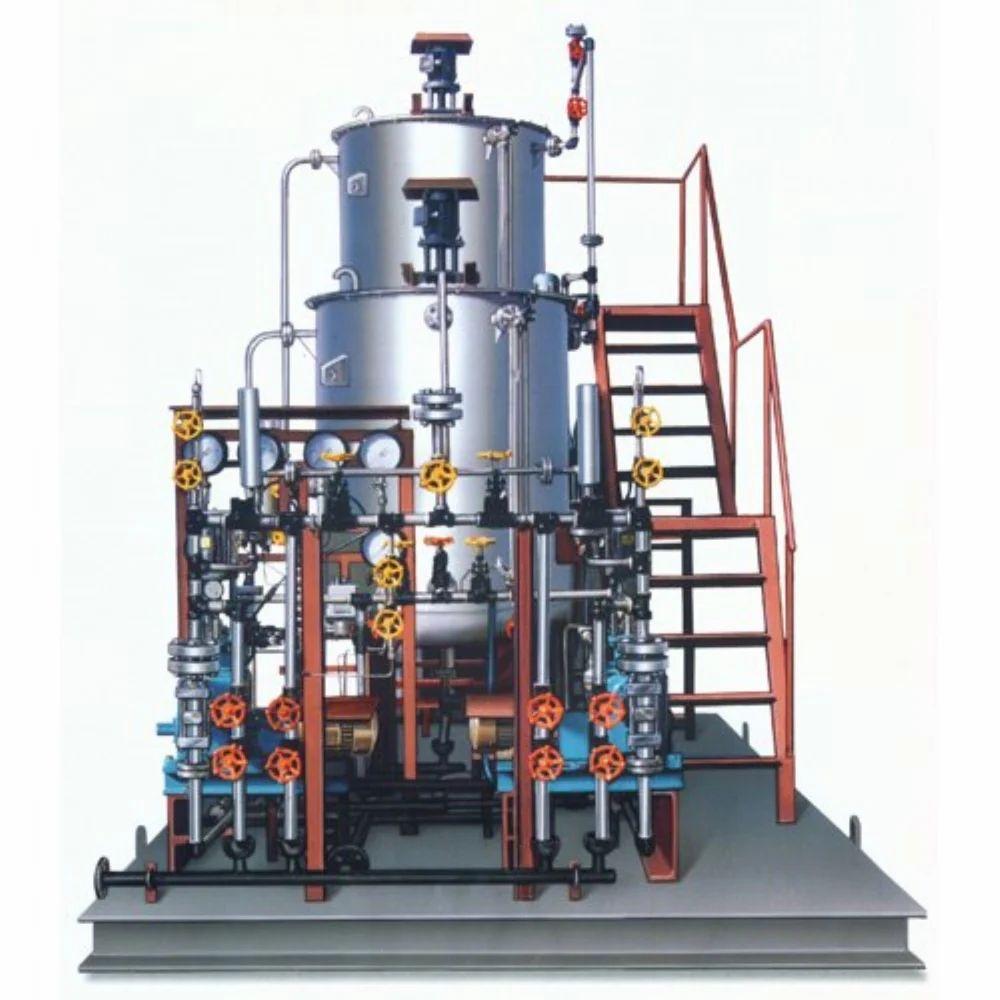

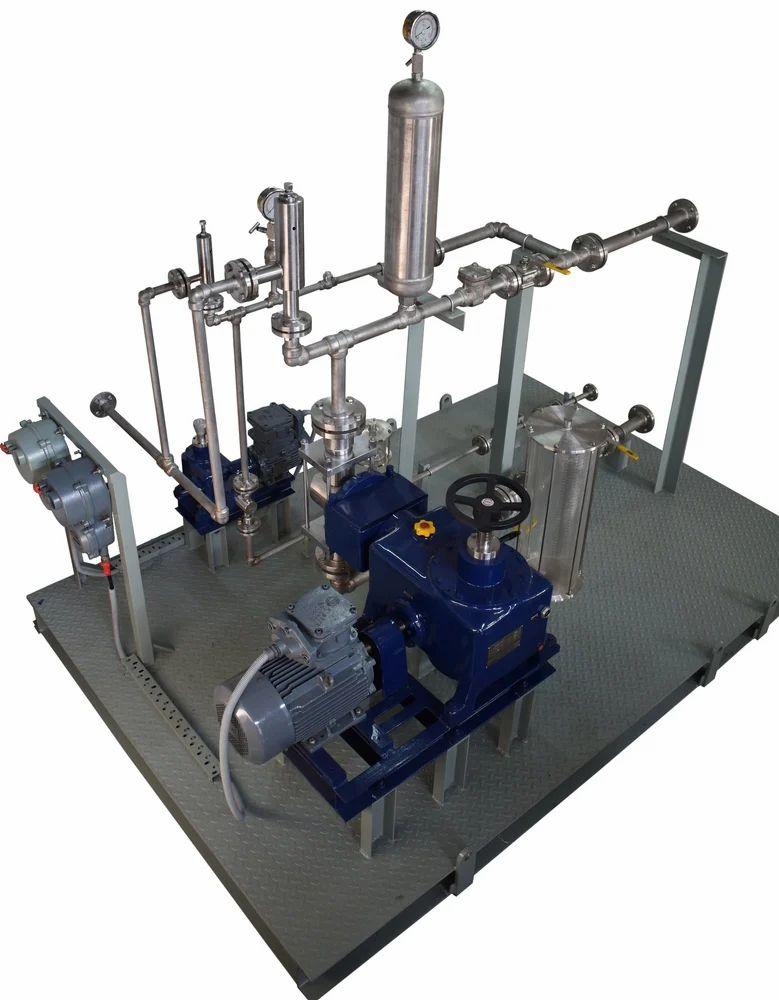

Shree Rajeshwari Engineering Works offers Chemical Injection Dosing Package System in the form of pre-packaged custom designed, performance tested ready to install Skids. Typical skid mounted packages come with preparation tank, dosing tanks, pumps, valves, gauges, relief valves, dampeners and other instrumentations. These packages are designed by our Piping and Design engineers to ensure minimum space requirement and manufacture an economically designed skid. Taking into consideration all the customer requirements, necessities and constraints, our Design engineers carefully layout the system which is economical. At Shree Rajeshwari Engineering Works, we do not compromise on quality and thus give a robust and a long lasting system. Additional Information: • Production Capacity: 150 Nos. / Year • Delivery Time: 30-60 Days • Packaging Details: Standard or Wooden Box
Tank Size - As per Client Technical Specification
Power Source - Electric
Country of Origin - Made in India
Frequency - 50 Hz
Design Type - As per API 675
Pressure - 500 Kg/cm2
Discharge Flow - 10000 LPH to 75000 LPH
Capacity - 10000 LPH in Simplex Version & 75000 LPH in Multiplex Version
Minimum Order Quantity - 1 Unit
Pump Head Material - SS 304, SS 304L, SS 316, SS 316L, PP, PTFE, PVDF, MS, CS, Alloy, Hatelloy-20, Nickel, Titanium
Surface Finish - Auto Finish
Type of Pump - Plunger, Hydraulic Actuated Diaphragm
RPM - 1000 RPM, 1500 RPM, 3000 RPM
Phase - Single Phase or Three Phase
Mixing Speed - As per Client Technical Specification
Motor Horsepower - 0.5 HP to 30 HP
Usage/Application - Oil & Gas Industries, Petrochemical Industries, Boiler Industries, Refineries
Features - Calibration Pot, Strainer, Pulsation Dampener, Pressure Gauge, Starter Panel, Globe & Ball Valve etc
Finishing - Auto Finish
Temperature - 70 DegreeC to 350 DegreeC
Discharge Pressure - 500 Kg/cm2
Installation Service - Yes
Filter Material - Y-Type Strainer, T-Type Strainer, Basket Type Strainer
Max Flow Rate - 75000 LPH
Chemical - Hazardous and Non-Hazardous Chemical like Water, Lime, Tri-Sodium Phosphate, Chlorine, Alum and etc.
Warranty - 1 Year
Flow Rate - 10000 LPH to 75000 LPH
Design - As per API 675
Head - Single Head or Multi Head
Material(MOC) - SS 304, SS 304L, SS 316, SS 316L, PP, PTFE, PVDF, MS, CS, Alloy, Hatelloy-20, Nickel, Titanium, SS 304, SS 304L, SS 316, SS 316L, PP, PTFE, PVDF, MS, CS, Alloy, Hatelloy-20, Nickel, Titanium
I Deal In - New Only
Model Name/Number - UMBL-10, UMBL-20, UMBL-25, UMBL-30, UMBL-40, UMBL-60, UMBL-80, UMPN-0, UMPN-00, UMPN-000, UMBL & UMPN
Brand - SREW
Pump Type - Plunger & Hydraulic Actuated Diaphragm Type Pump
Color - Epoxy Coated Colour
Grade Standard - As per API 675
Voltage - 230V & 415V
