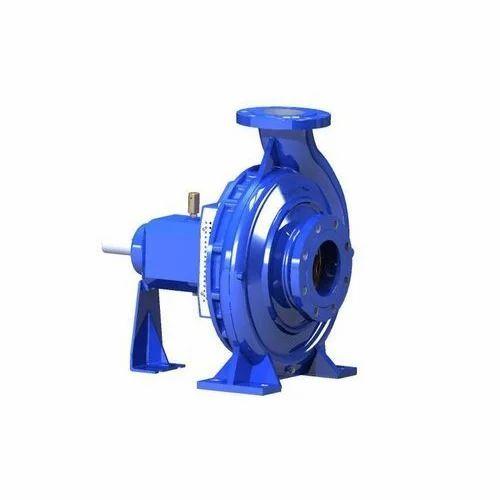

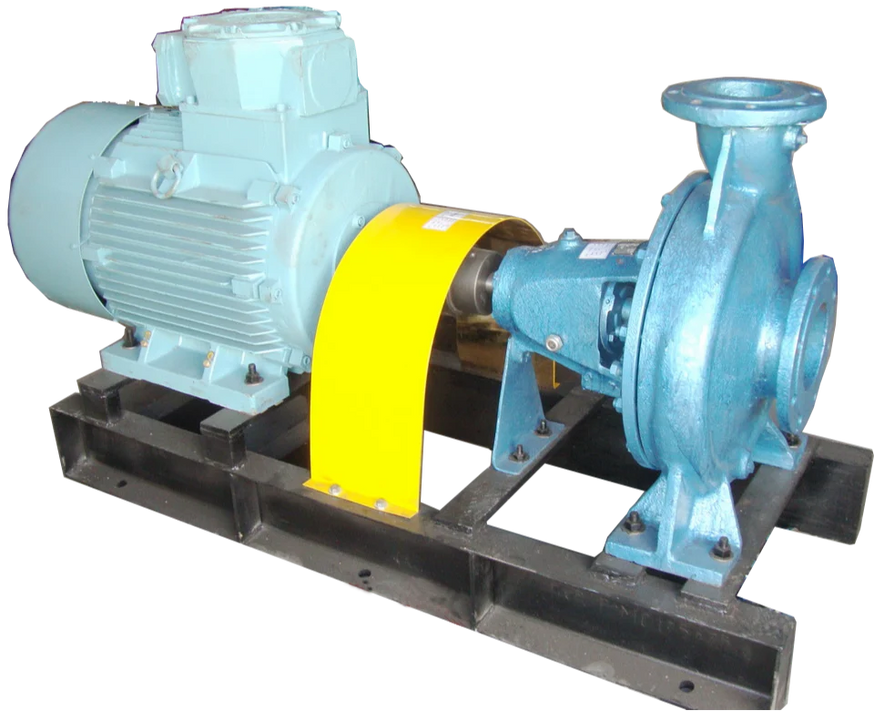

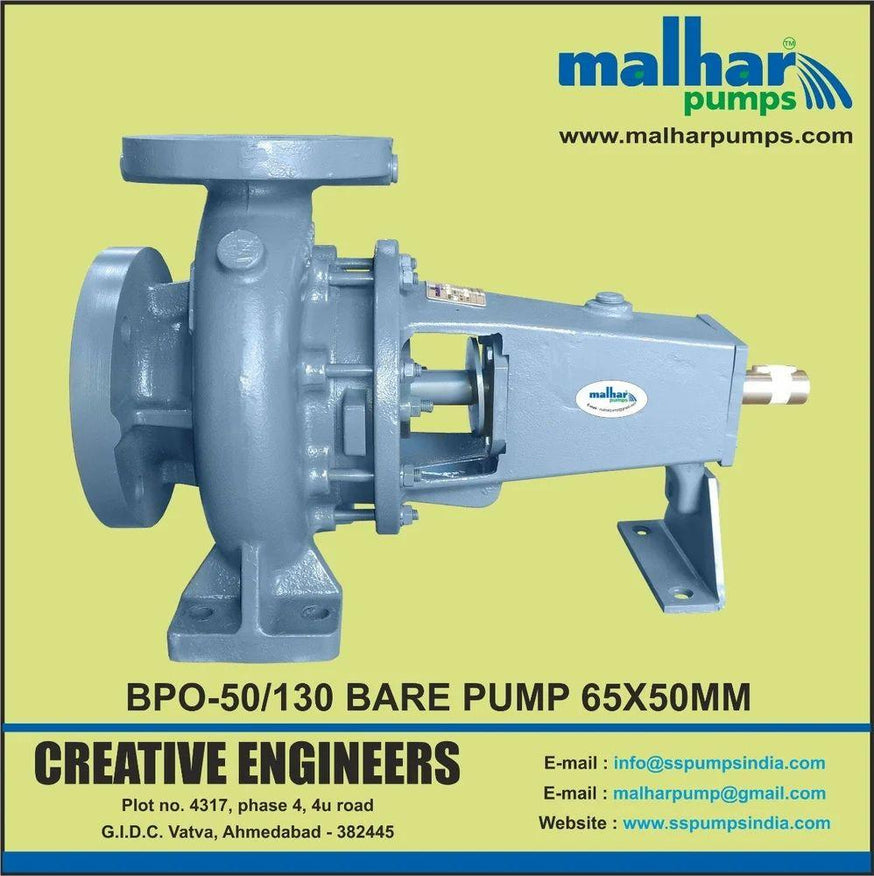

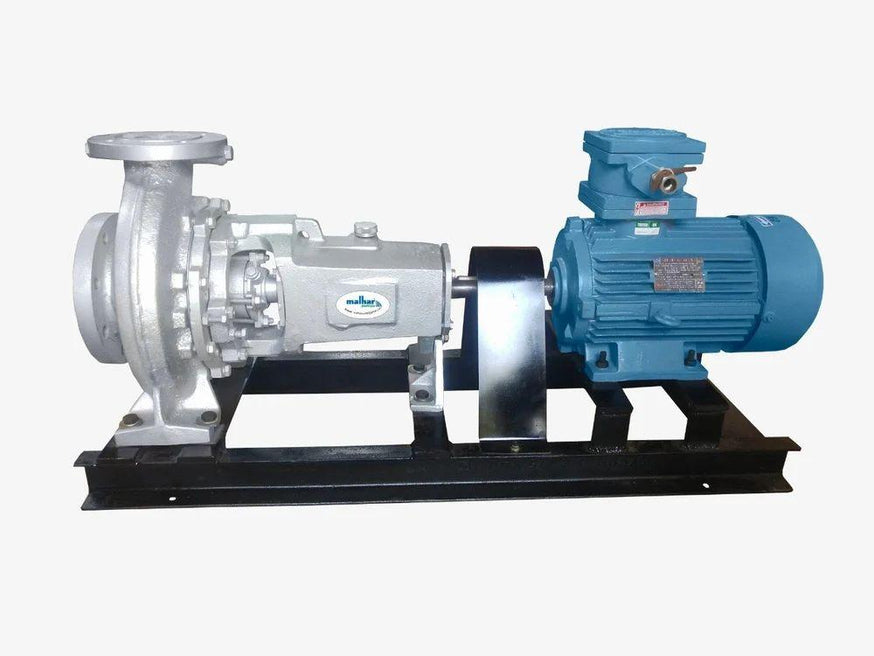

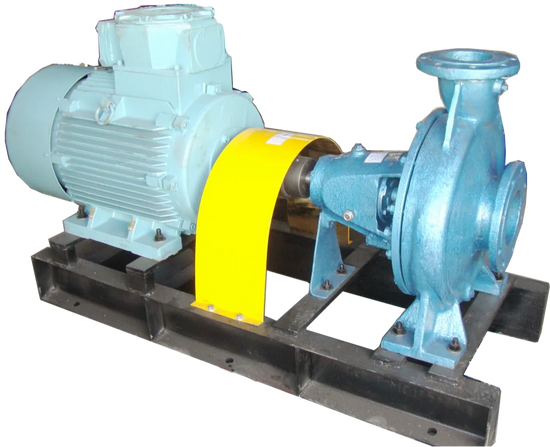

We are leading Manufacturers of Centrifugal Back Pull Out Bare Shaft Coupled PumpFeatures:- • More than 3mm corrosion allowance (cast iron) for extended use on corrosive applications. • Back pull out construction allows rotating assembly to be withdrawn without disturbing the suction and delivery connections. • One piece self vented foot mounted, center suction volute casing, single stage, closed / semi open dynamically balanced impeller. • Flange drilling standards as per din 24255 / iso 2858 or as per customer’s requirement. • Designed for 16 bar working pressure with optional casing for a working pressure of up to 20 bar. • A robust and solid construction that guarantees long life even under high suction pressure conditions. • Heavy –duty, deep- grooved bearings with minimum 50,000 hours operating life under normal condition. (grease lubricated, oil lubrication available on request) • Heavy–duty, stiff solid shaft design with low l3/d4 ratio ensures less than 0.05 mm shaft deflection at the seal face in all operating condition. This extends the seal life. • Seal housing is constructed to accommodate different seal / gland designs, so as to meet the severe heavy-duty requirements. (standard is gland packing, seal version on special request) • Excellent parts interchangeability reduces inventory levels for spare parts to a minimum. • Special design for high temperature thermic fluid available on request. • Motor or engine driven sets. • Special monoblock versions available on request. Material of construction: • Cast iron construction with en-8 shaft, ss-410 sleeve, gland packing and special material like wcb, cf-8 , cf-8m, alloy 20 , ss-304 , ss-316 fabricated etc on request Applications:- • For pumping clear / turbid water / chemicals & volatile liquids. • Air conditional plants, power station, mine drainage, • Sprinkle systems fire fighting, booster service, oils brine.
Motor Horsepower - 10HP
Head - 70 MTR
Stages - Single Stage
Material - CAST IRON
Motor Phase - Three Phase
Application/Usage - For Chemical Process & Pharmaceutical Industry
Max Flow Rate - 400 - 500MR/HR
Pump Type - CENTRIFUGAL
Minimum Order Quantity - 1 Unit
Type of end use - Industrial
