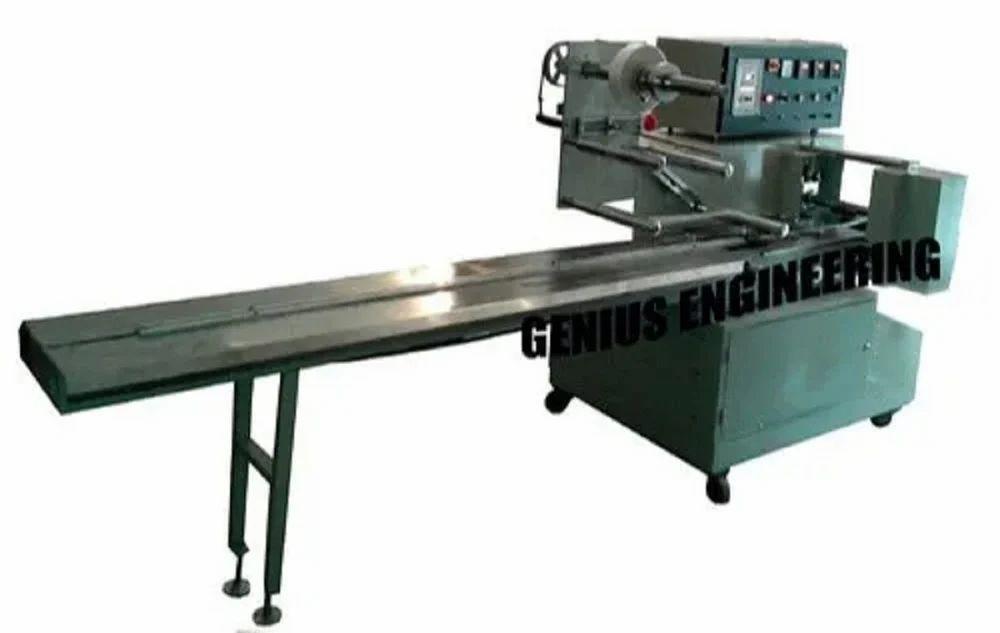

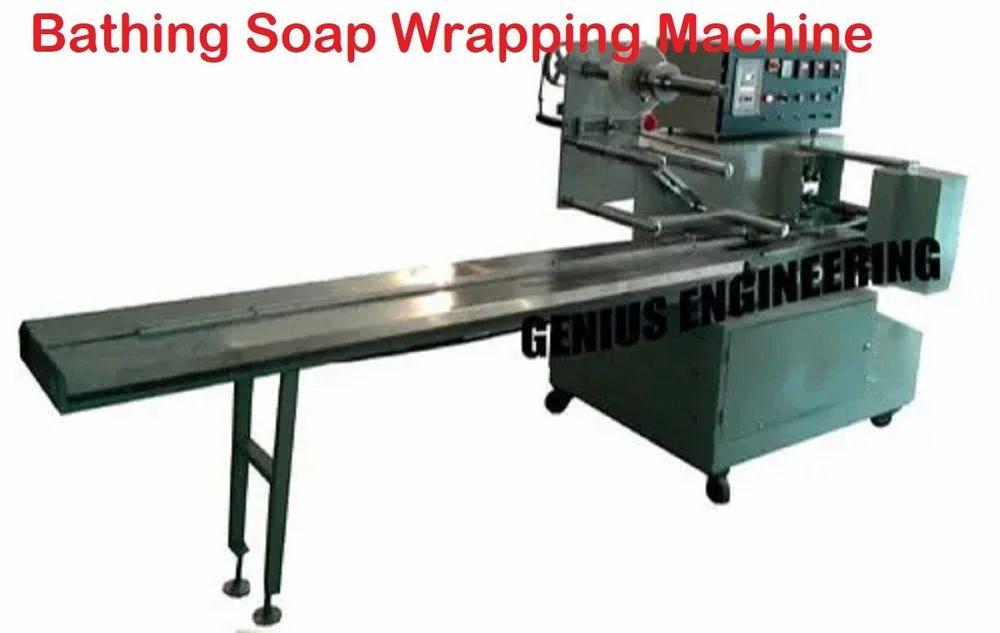

Specifications: Product applicationBathing soapQuantity / PouchOne unit / Pouch. Product DimensionTo be conveyed in mm. In-Feeding SystemManual feeding through in-feed conveyor with Pushers. (Approx. 2 meter long). Output conveyorYes. (1 Meter long)Temperature ControllerPID basedContact PartsSS- 304Pouch / Sealing TypePillow type / Center sealing. CoveringSS- 202LaminateAny continuous heat sealable laminated rollDriveA. C. Drive (1 H. P, Standard Make)Photocell with Control PanelAnalogAmp MeterDigital with control panel. Adjustable Forming PlateYesHorizontal Track for Smooth runningYesControl Panel with SSRYes
Body Material - MS
Speed - Approx. 45-60 Pouches per Minute
Net Weight - Approx 500 Kg
Phase - 3 Phase
Voltage - 220V
Gear Motor - 1 HP
Power Consumption - 3 kW
Frequency - 50 Hz
