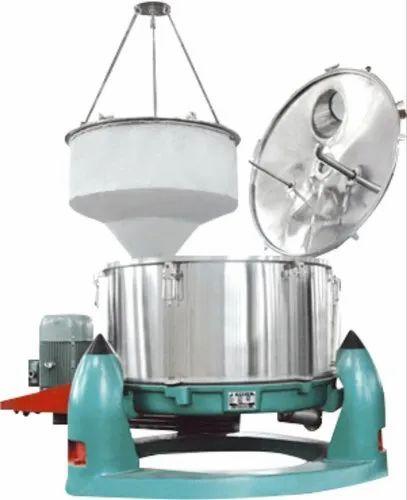

Being quality oriented organization, we are offering Bag Lifting Centrifuge Machine to our clients. This extractor is acclaimed for its best performance. It is able to operate in reliable manner for years. This extractor is based on automatic operation and is offered in different grades to our clients. It is based on hydraulic concept and is reliable for years. This extractor is delivered within specified time frame to our clients. FeaturesDurableLonger service lifeCost effectiveSpecificationsOuter Drum Cylindrical drum mode out of S. SInner Drum Revolving perforated drum made out of S. S. 304/316Volute M. S. Fabricated shell & bottomDrive System The machine is driven by 440V, 3pH TEFC motor through clutch pulley V beltsBrake Mechanical leg brake systemBearing Housing Made out of graded cast iron machines for close tolerance to heavy duty bearings with proper lubricationExternal Finish Polished S. S. surface, attractive color ASPA paint on M. S. and C. I. surfacesTechnical SpecificationModelInner Drum dia/HtDrum R. P. MMotor H. PCapacity Kgs (WET)NHE -25625/350 mm1000325 KgsNHE -35775/350 mm1000540 KgsNHE -37925/4507855/7.550 KgsNHE -451025/50 mm7857.570 KgsNHE -491225/50 mm77510100 Kgs Additional Information: • Item Code: NEIBCF36 • Production Capacity: Regular • Delivery Time: 30 Days
Type - Bag Lifting Type
Size/Dimension - 20,24,30,36,48,52 Inches
Phase - Three
Material - 304/316L
Speed - 800-1000
Minimum Order Quantity - 1 Piece
