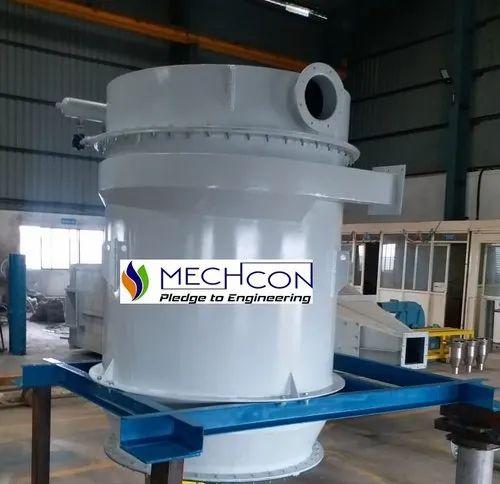

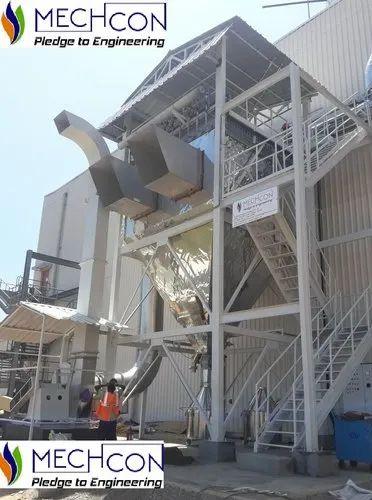

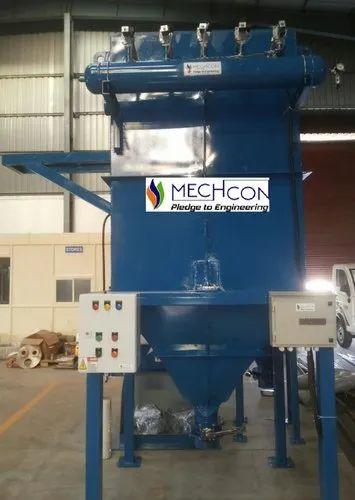

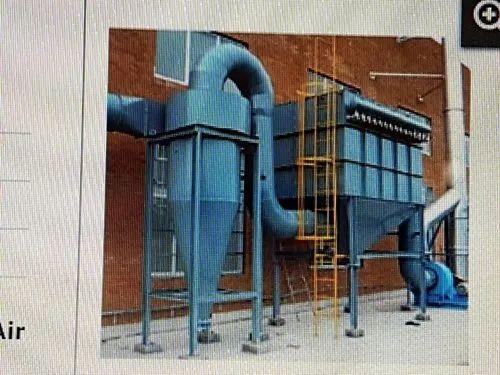

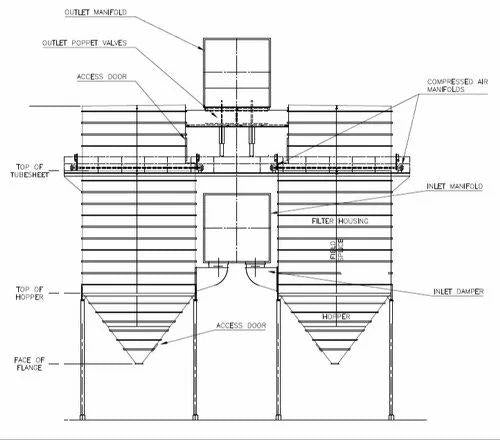

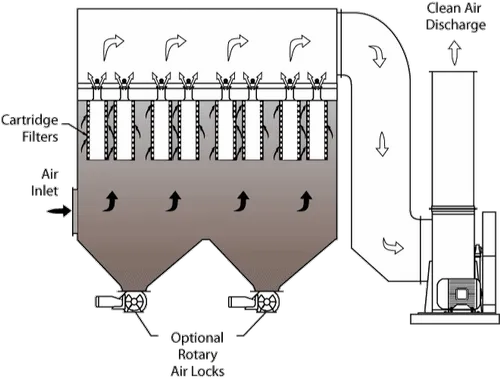

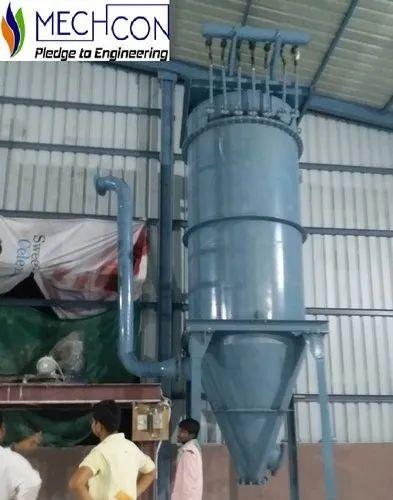

Industrial filters and de-dusting systems for every need involving: • Pulse Jet Fabric Filters • M - Pulse Baghouse • Cartridge Dust Collectors • Cyclofilters • Cyclone and Multi-cyclonePulse Jet Bag filters are compact fabric filters with a full automated de-dusting of the filter bags through jets of compressed air. They are used for the dry separation of dust particles or for recovering useful dusts from air and gas flows. Equipped with the corresponding filter media, bag filters effortlessly fall below the existing and expected emissions values. Compared to other filter systems, such as electric filters, bag filters distinguish themselves by a low capital expenditure. Fabric filters can be used at temperatures up to 250°C. Bag filters are particularly well suitable for usages in harsh, industrial environments and are successfully used in almost all industrial areas. We offer both standardized and customized innovative updating solutions for filtering system. Pulse Jet Filters come in a variety of shapes, sizes, and filter bag layouts to fit a broad range of applications. But the cleaning cycle is the same throughout the line. Dust-laden air or gas enters the Pulse Jet Filter through a hopper inlet where it is directed toward a deflector that slows the airflow and causes heavier particles to fall directly into the hopper. Our Solutions: • Fabric filters, both Single-line bag filters and Double-line bag filters - For highest dust removal efficiencies over the whole range of particle size spectrums and Air Volume 300 m³/h to 10,00,000 m³/h. • Silo / Bin Mount Filters/Pulse Jet Filters/cartrdidge filters/Cyclo Filters • Cylindrical collectors - For high vacuum or high-pressure applications. Typical applications include spray drying, separating, coal grinding, mixing food manufacturing, car loading, and product receiving from process applications. The tangential inlet collector can handle higher air-to-cloth ratios • Perfectly adapted to demands in main dimensions, materials and filter media according to the application • Variable extensions up and down to meet the demands of Core segment Industry i. e. Cement, Minerals & Metals, Power etc. • Designed version for the food and pharmaceutical industry • Low maintenance with highest reliability up to 10mg/Nm³ or less • Dust and hazardous and toxic compounds downstream of boilers and can be expanded to a complete waste gas cleaning systemAdvantages: • Customized adjustment to specific requirements • Easy to assemble and Pre-assembled components for fast & cost-efficient installation • Maintenance requirements reduced to once a year after initial break-in phase • Robust construction for extremely high durability • High Cleaning efficiency • Optimum consumption of Compressed Air • Minimal pressure loss due to excellent flow distribution
Voltage - 440 V
Airflow (m3/h or CFM) - 300 - 1000000 m3/h
Product Type - Pulse Jet Bag Filters
Usage - Cement Industry
Pressure - 2.5 Kg/cm2g
Condition - New
Frequency - 50/60 Hz
Inlet Temperature (deg Celsius) - 250 DegreeC
Efficiency - 99.99%
Brand - Mechcon
Material Of Construction - Stainless Steel/Carbon Steel
