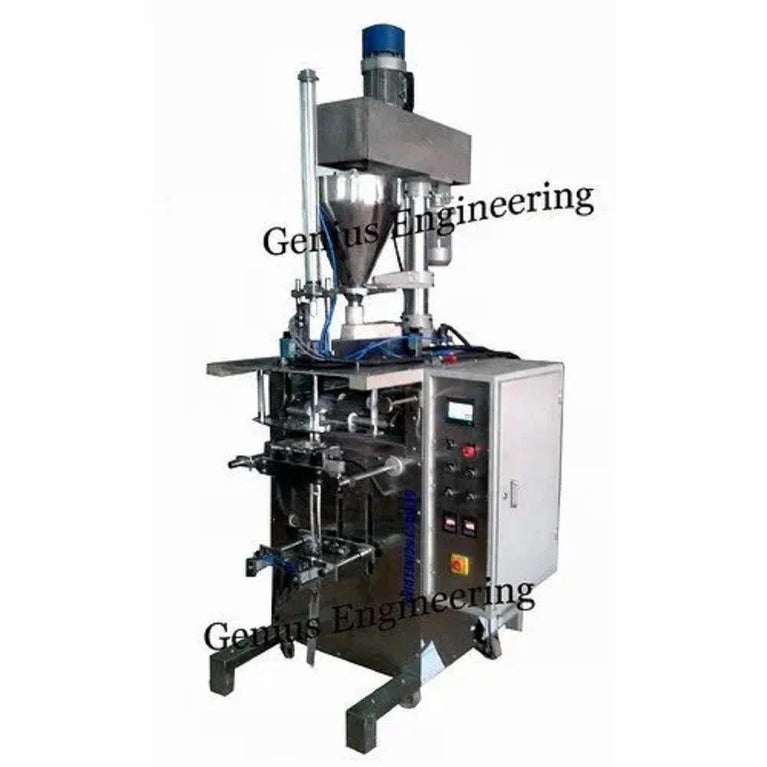

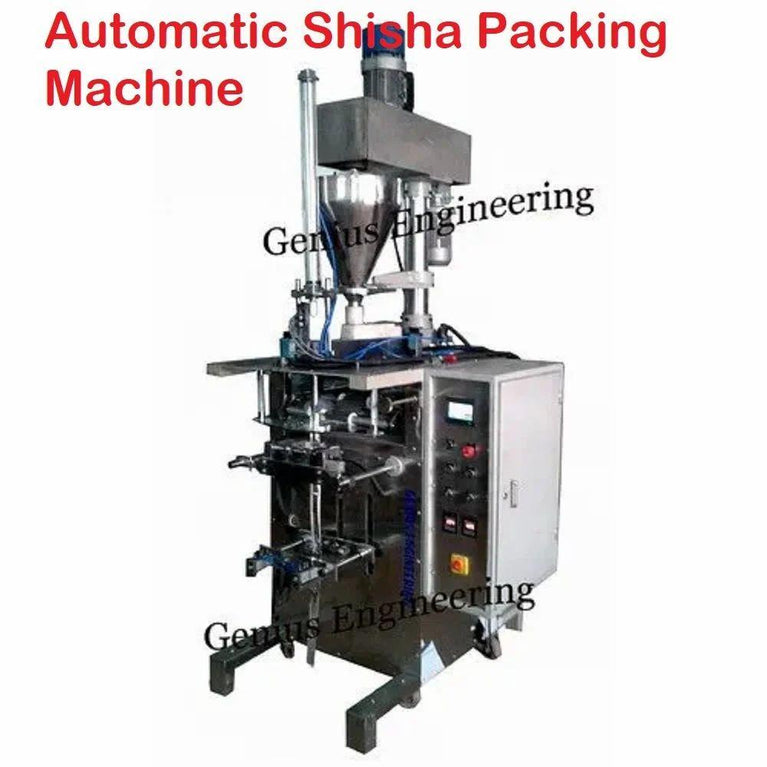

Product Details: Product applicationShisha (Molasses). Pouch SizeTo be conveyed in mm. Packing speedFor 50gm: Approx. 40 pouches per minute. For 100gm: Approx. 35 Pouches/ Minute. Sachets orientationFront collection. Sealing typeCenter seal. Filling SystemServo operated auger Filler. Packaging filmAny continuous heat seal able laminated film in roll form. Film draw mechanismThrough horizontal sealing jaws up/down sliding motion. Machine motionIntermittent. Horizontal sealingSliding (Up/ down) motion. PLCMicroprocessor controlled MMI with PLC (Schneider Make). Micro viewYes (Schneider make). Pneumatic componentsPneumax make. PhotocellP & F make. Contact PartsStainless Steel- 304. Batch cutting optionYES. (Chaplets of 10 sachets each and cutting.)Nitrogen FlushingYes. Electrical motorsBonfiglioli / Crompton. Other electrical componentsSchnieder make.
Packing Speed - For 200gm Approx. 25 Pouches/ Minute
Temperature Controller - PID Based
Model Number - GE- 60C
Packaging Material - Pouch
Phase - 3 phase
Voltage - 415 V
Filling Accuracy - +2 -3%
Filing Type - Auger
Filling Range - 50gm - 200gm
Power Consumption - Approx 5 kW
