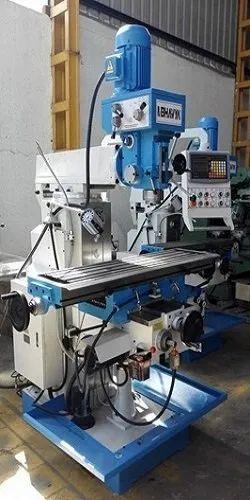

MODELADM1232ATABLETable size1250X320Max. load of Table200MACHINING RANGETable Longitudinal travel(manual/auto)720Table Cross travel (manual/auto)320Table Vertical travel(manual/auto)280MAIN SPINDLESpindle taperISO40Spindle speed /step -- Vertical90-2000/8stepsSpindle speed /step Horizontal40-1300/12stepsMax. drilling dia.30Max. end milling width80Max. vertical milling Dia.25Max. tapping dia. M16Quill travel120Swivel angle of headstock45Vertical spindle axis to column surface220-550Vertical spindle nose to table surface90-370FEEDSLongitudinal/cross feed (Manual +Auto)22-555/8stepsVertical/step (Manual +Auto)560mmSpindle quill feedManual + AutoPOWERMain motors (Vertical + Horizontal Head)2.2KW (V Drive) & 2.2 Kw(H Drive)(X+Y Axis) is motorized by 1 gear box feed motor0.75 kW(Z-Axis) is motorized by 1 gear box feed motor0.75 KWCoolant motor0.04 kWOverall dimension160x150x227 cmN/W, G/W1550/1700 kg.
Material - Cast Iron
Brand - BHAVYA
Automation Grade - Semi-Automatic
Machine Type - GEAR DRIVEN - 3 AXIS AUTO FEED
Product Type - TOOL ROOM MILLING
Table Size - 1250mm X 320mm
Model Name/Number - ADM1232A
